Запчасти Bobcat 5600 PILOT VALVE (A94Y14000 & Above) HYDRAULIC SYSTEM

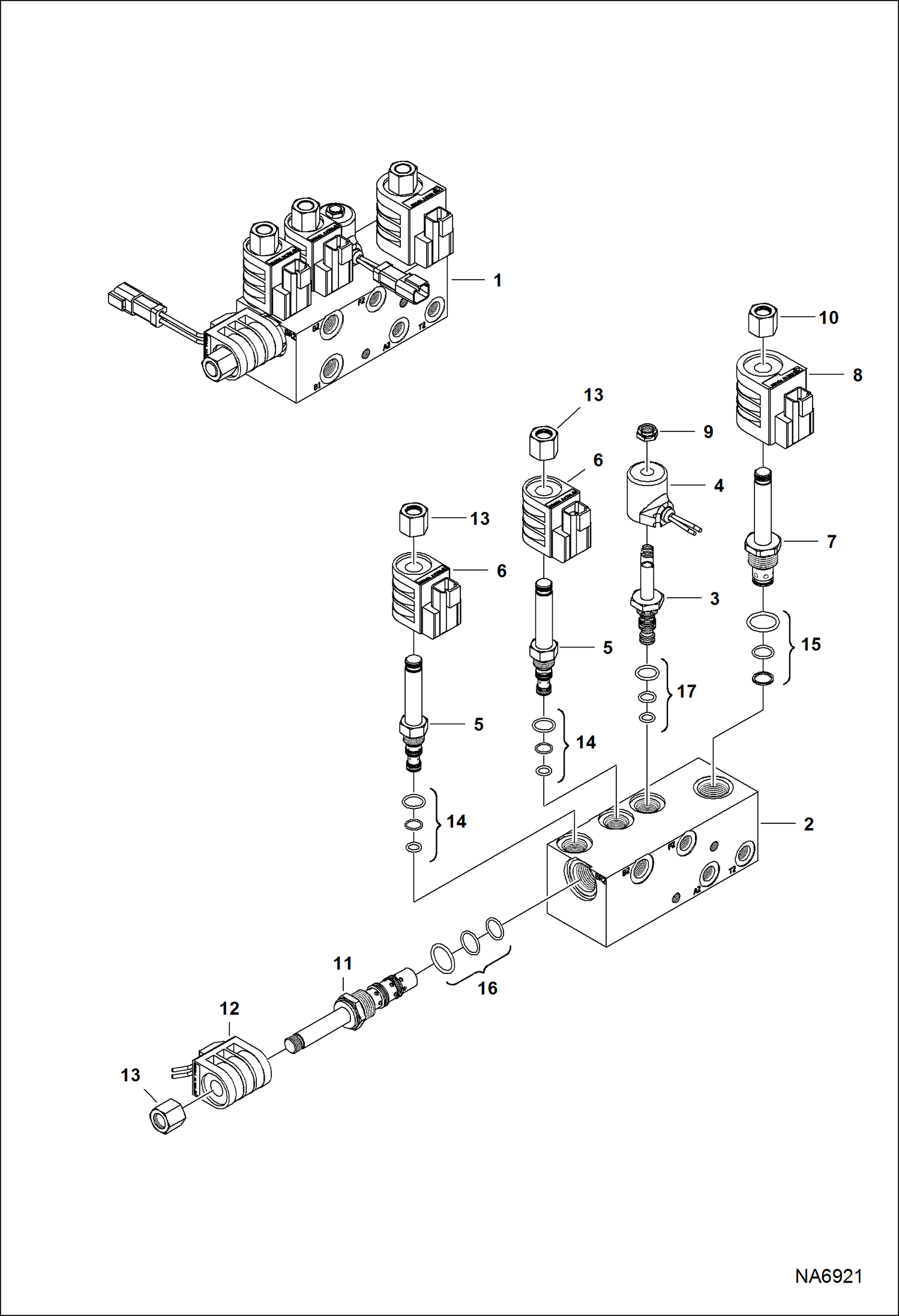

Схема запчастей Bobcat 5600 - PILOT VALVE (A94Y14000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7221144

VALVE, MANIFOLD pilot

2

BLOCK NSS - Order Ref. 1

3

6691278

VALVE spool

4

6691279

COIL

5

6686199

STEM proportional valve

6

6691280

COIL

7

6691281

VALVE, 2-WAY 2-way

8

6691282

COIL

9

6679961

NUT

10

6662829

NUT

11

6692918

VALVE proportional - brake

12

6692919

COIL brake

13

6691022

NUT

14

6685603

KIT, SEAL

15

6691277

SEAL KIT

16

7031606

KIT, SEAL

17

7031605

KIT, SEAL

Выбрано товаров: 17
