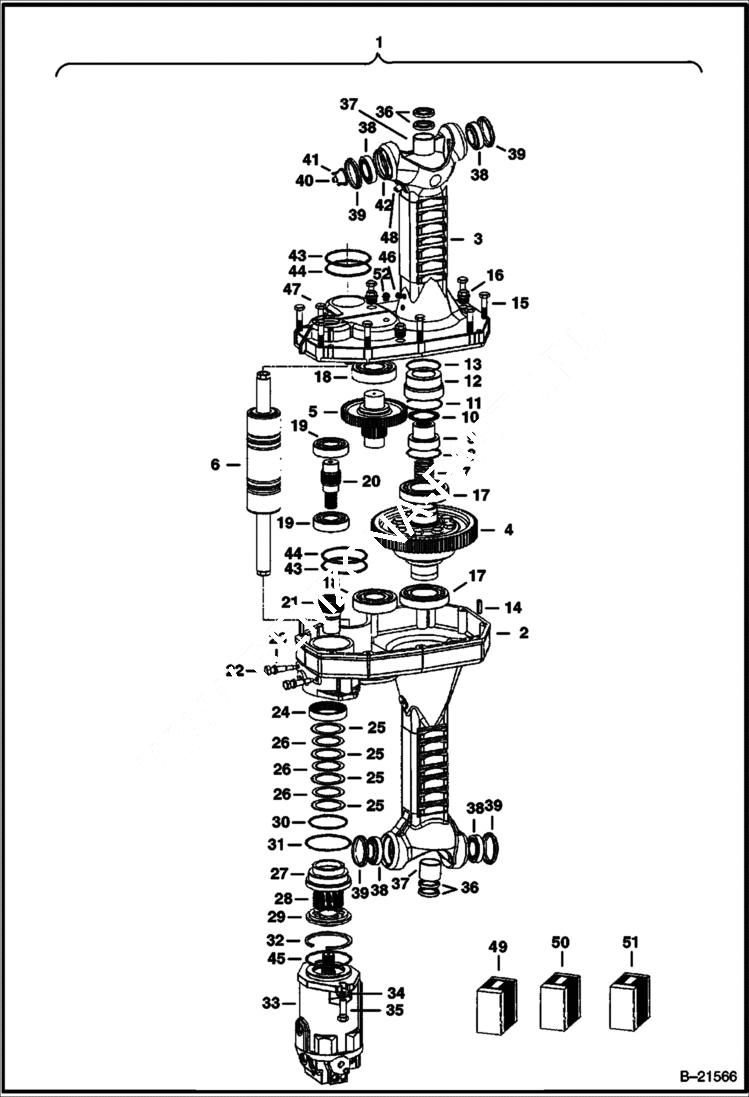

Запчасти Bobcat 5600 AXLE ASSEMBLY DRIVE TRAIN

1

6678762

AXLE Ref. 2-48 & 52

2

6682080

HOUSING R.H.

3

6682081

HOUSING L.H.

4

6682082

GEAR ASSY

5

6682083

AXLE

6

6682084

CYLINDER See Illustration AXLE ASSEMBLY/ MS2381 STEERING

7

6682085

SPRING

8

6682086

RING retaining

9

6682087

COUPLER clutch

10

6682088

NEEDLE CAGE

11

6682089

O-RING

12

6682090

ROD

13

6682091

O-RING

14

6682092

PIN

15

6682093

SCREW

16

6682094

PLUG

17

6682095

BALL BEARING

18

6682096

BALL BEARING

19

6682097

BALL BEARING

20

6682098

SHAFT

21

6682099

COUPLER clutch

22

6682100

SCREW Use for towing

22

1CM1220

BOLT

23

6682101

NUT

24

6682102

RING GEAR

25

6682103

DISK sintered

26

6682104

DISK steel

27

6682105

PISTON brake

28

6682106

SPRING brake

29

6682107

COVER spring

30

6682108

O-RING

31

6682109

O-RING

32

6682110

RING retaining

33

DRIVE MOTOR See Illustration DRIVE MOTOR/ B21569

34

6682111

WASHER

35

6682112

SCREW

36

6682116

SEAL

37

6682117

BUSHING

38

6682118

BEARING roller - Includes cone/race

39

6682119

RING scraper

40

6682341

WHEEL SENSOR steering - wheel position - Was 6681000 - A

40

6670706

CONNECTOR

40

6670710

LOCK

41

6682120

SCREW

42

6682121

RING nylon

43

O-RING NSS - Order 6682148 Seal Kit

44

O-RING NSS - Order 6682148 Seal Kit

45

6682128

O-RING

46

6682129

PLUG

47

6682131

SCREW

48

6682136

FITTING steering

49

6682139

KIT box - Ref. 2 & 24

50

6682140

KIT seal - Ref. 11, 13, 30, 31, 36, 39, & 45 - See Ref. 11 on Ill. B21567 and Ref. 2 & 5 on Ill. B21568

51

6682141

KIT brake - Ref. 25, 26, 28, 30 & 31

52

6682132

PLUG vent
