Запчасти Bobcat 5600 HYDRAULIC CIRCUITRY (Pilot) (Dual) (A94Y14000 & Above) HYDRAULIC SYSTEM

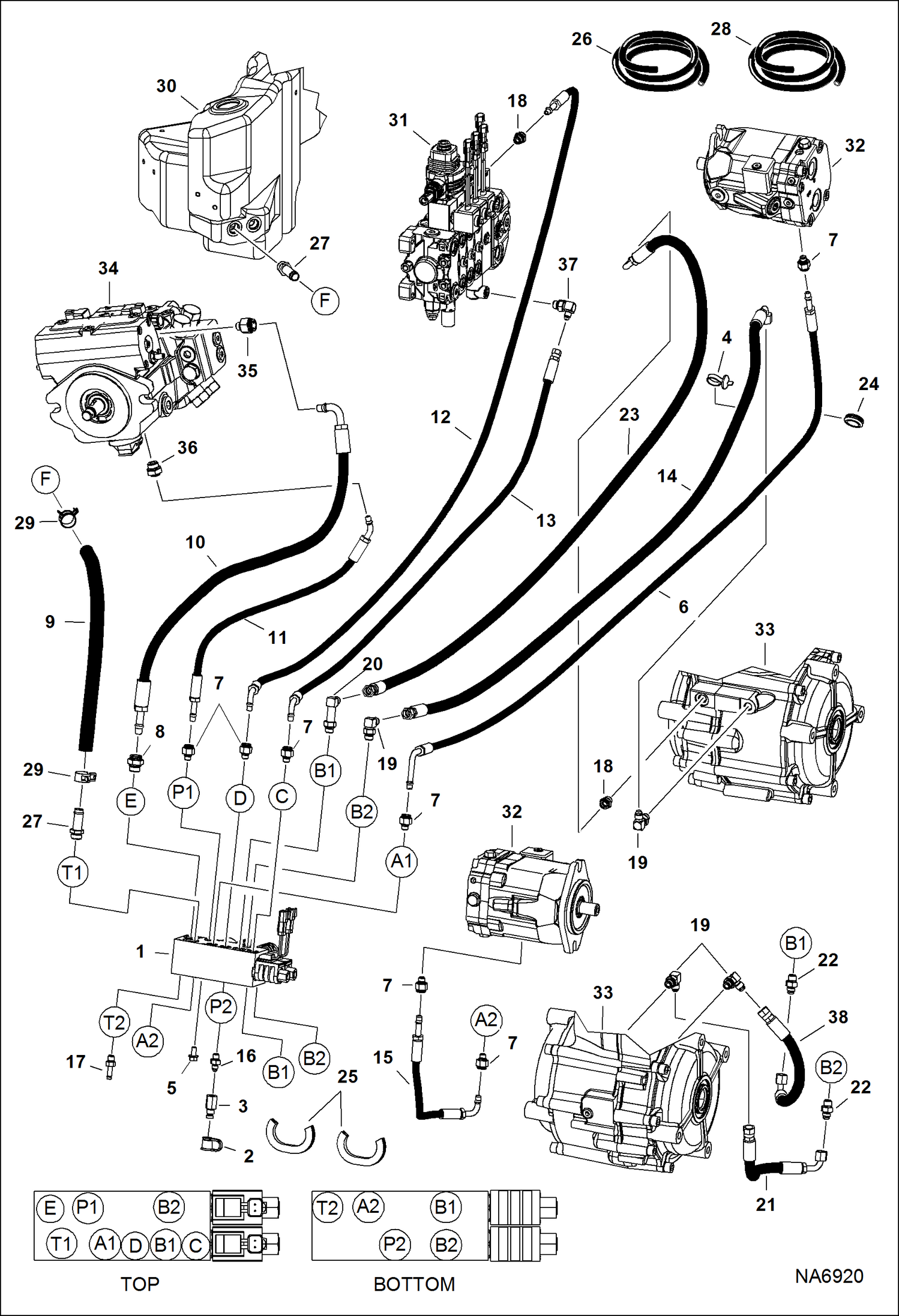

Схема запчастей Bobcat 5600 - HYDRAULIC CIRCUITRY (Pilot) (Dual) (A94Y14000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7220046

VALVE, MANIFOLD See Illustration PILOT VALVE/ NA6922 - pilot - dual brake

2

6630367

CAP

3

7000009

PLUG

4

6675734

STRAP, TIE

5

29CM816

SCREW

6

7228055

HOSE, HYD

7

10L0604

FITTING, HYD CONNECTOR

7

7011053

CLIP

7

78K4

O'RING

8

10L0808

FITTING, HYD CONNECTOR

8

78K8

O RING

9

HOSE NLA - 457,2 mm (18'') long - Order Ref. 28 - Was 7165044 - A

10

7116293

HOSE ASSY

11

7116355

HOSE ASSY

12

7116238

HOSE ASSY

13

7116436

HOSE ASSY

14

7121637

HOSE

15

7220064

HOSE, HYD

16

15KB0404

FTG HYD S Connector

16

79K4

O RING 10

17

6734090

ADAPTER

17

79K4

O RING 10

18

10L0606

FITTING, HYD CONNECTOR

18

78K6

O'RING

19

17KB0606

FITTING

19

79K6

O RING 10

20

7220014

FITTING, ELBOW

21

7220063

HOSE, HYD

22

15KB0606

FITTING, HYD CONNECTOR

22

79K6

O RING 10

23

7228054

HOSE, HYD

24

6676508

GROMMET

25

EDGE TRIM NLA - 127,0 mm (5'') long - Order Ref. 26

26

6682492

TRIM bulk - sold per foot

27

1314348

CONNECTOR BEAD TUBE

28

6578172

HOSE bulk - sold per foot

29

5HM24

CLAMP

30

7237315

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA2911

31

VALVE, CONTROL See Illustration WORK VALVE/ MS2293 See Illustration WORK VALVE/ MS2293

32

6689772

MOTOR See Illustration DRIVE MOTOR/ MS2318

33

6690582

TRANSAXLE See Illustration TRANSAXLE/ B23577

34

6688865

PUMP, HYD See Illustration HYDROSTATIC PUMP/ MS1477

35

10L0806

CONNECTOR

35

78K6

O'RING

36

10L0608

FITTING, HYD CONNECTOR

36

78K8

O RING

37

17KB0406

FITTING, HYD ELBOW

37

79K6

O RING 10

38

7220062

HOSE, HYD

Выбрано товаров: 49
