Запчасти Bobcat 5600 HYDRAULIC CIRCUITRY (Pilot) (A94Y11001 - 13999) HYDRAULIC SYSTEM

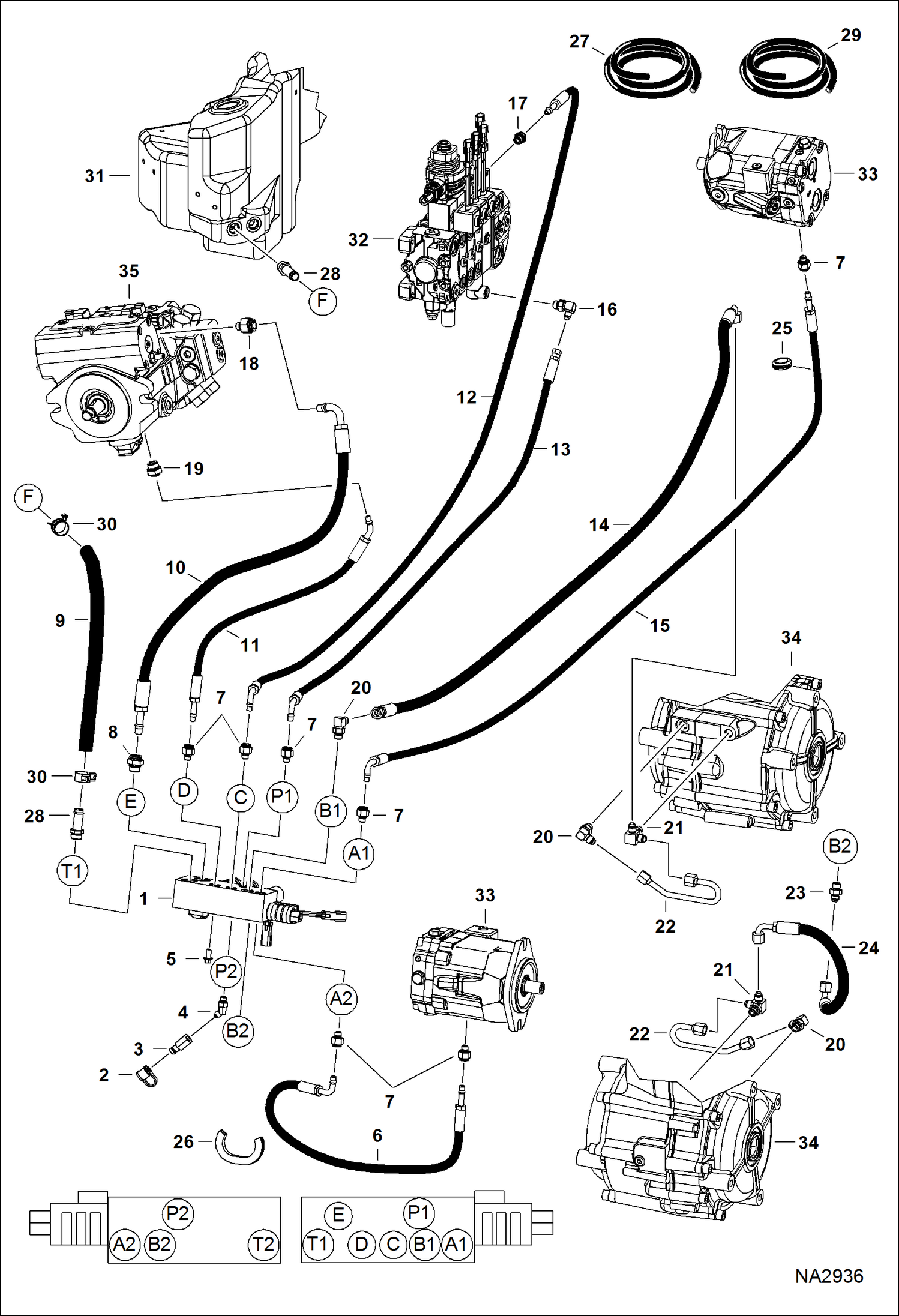

Схема запчастей Bobcat 5600 - HYDRAULIC CIRCUITRY (Pilot) (A94Y11001 - 13999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6692488

VALVE ASSY See Illustration PILOT VALVE/ MS2350 - pilot

2

6630367

CAP

3

7000009

PLUG

4

18KB0404

FTG HYD ELBOW 45

4

79K4

O RING 10

5

29CM816

SCREW

6

7116357

HOSE

7

10L0604

FITTING, HYD CONNECTOR

7

7011053

CLIP

7

78K4

O'RING

8

10L0808

FITTING, HYD CONNECTOR

8

78K8

O RING

9

HOSE NLA - 457,2 mm (18'') long - Order Ref. 29

10

7116293

HOSE ASSY

11

7116355

HOSE ASSY

12

7116238

HOSE ASSY

13

7116436

HOSE ASSY

14

7121637

HOSE

15

7116239

HOSE

16

17KB0406

FITTING, HYD ELBOW

16

79K6

O RING 10

17

10L0606

FITTING, HYD CONNECTOR

17

7011053

CLIP

17

78K6

O'RING

18

10L0806

CONNECTOR

18

78K6

O'RING

19

10L0608

FITTING, HYD CONNECTOR

19

7011053

CLIP

19

78K8

O RING

20

17KB0606

FITTING

20

79K6

O RING 10

21

6725182

TEE

21

79K6

O RING 10

22

7130444

TUBELINE

23

15KB0606

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

7121638

HOSE

25

6676508

GROMMET

26

EDGE TRIM NLA - 127,0 mm (5'') long - Order Ref. 27

27

6682492

TRIM bulk - sold per foot

28

1314348

CONNECTOR BEAD TUBE

29

6578172

HOSE bulk - sold per foot

30

5HM24

CLAMP

31

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA2911

32

VALVE, CONTROL See Illustration WORK VALVE/ MS2293 See Illustration WORK VALVE/ MS2292

33

6689772

MOTOR See Illustration DRIVE MOTOR/ MS2318

34

6690582

TRANSAXLE See Illustration TRANSAXLE/ B23577

35

6688865

PUMP, HYD See Illustration HYDROSTATIC PUMP/ MS1477

Выбрано товаров: 48
