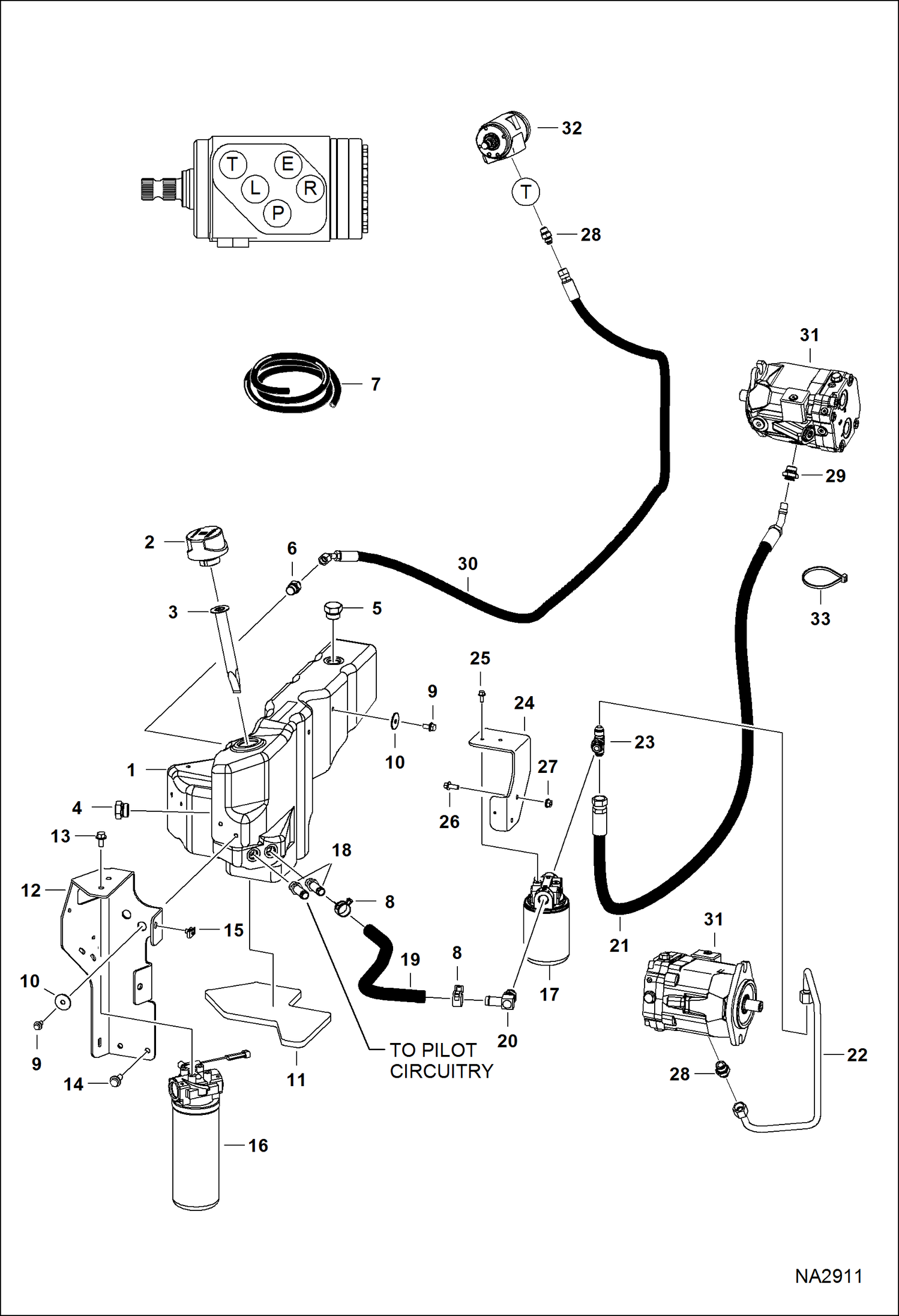

Запчасти Bobcat 5600 HYDRAULIC CIRCUITRY (Tank) HYDRAULIC SYSTEM

1

7163042

TANK, HYD

1

7237315

TANK, HYD

2

6692836

CAP, HYDRAULIC TANK

3

7128723

SCREEN

4

6665915

GAUGE

4

79K12

O RING 10

5

24K8

PLUG

6

7001665

VALVE, CHECK

7

6578172

HOSE bulk - sold per foot

8

5HM24

CLAMP

8

79K6

O RING 10

9

29CM816

SCREW

10

6817775

WASHER

11

7171873

INSULATION

12

7167777

BRACKET

13

35C612

BOLT

14

29CM1025

BOLT

15

6676169

NUT

16

6679592

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ NA1844

17

6686217

FILTER ASSY

17

6516722

FILTER

18

1314348

CONNECTOR BEAD TUBE

19

HOSE NLA - 571,5 mm (22.5'') long - Order Ref. 7

20

6680952

FITTING 90 DEG BARB

20

79K8

O RING 10

21

7121634

HOSE

22

7138120

TUBELINE

23

19KB0808

Fitting Hydraulic Branch Tee

23

79K8

O RING 10

24

7147794

BRACKET filter

25

35C410

BOLT 5

26

29CM820

SCREW

27

51DM8

NUT

28

15KB0810

FITTING, HYD CONNECTOR

28

79K6

O RING 10

29

10L0810

CONNECTOR

29

79K10

O RING 10

30

7158240

HOSE, HYD ASSY

31

6689772

MOTOR See Illustration DRIVE MOTOR/ MS2318

32

6678758

PUMP See Illustration POWER STEERING PUMP/ B21565

33

6624289

STRAP, TIE
