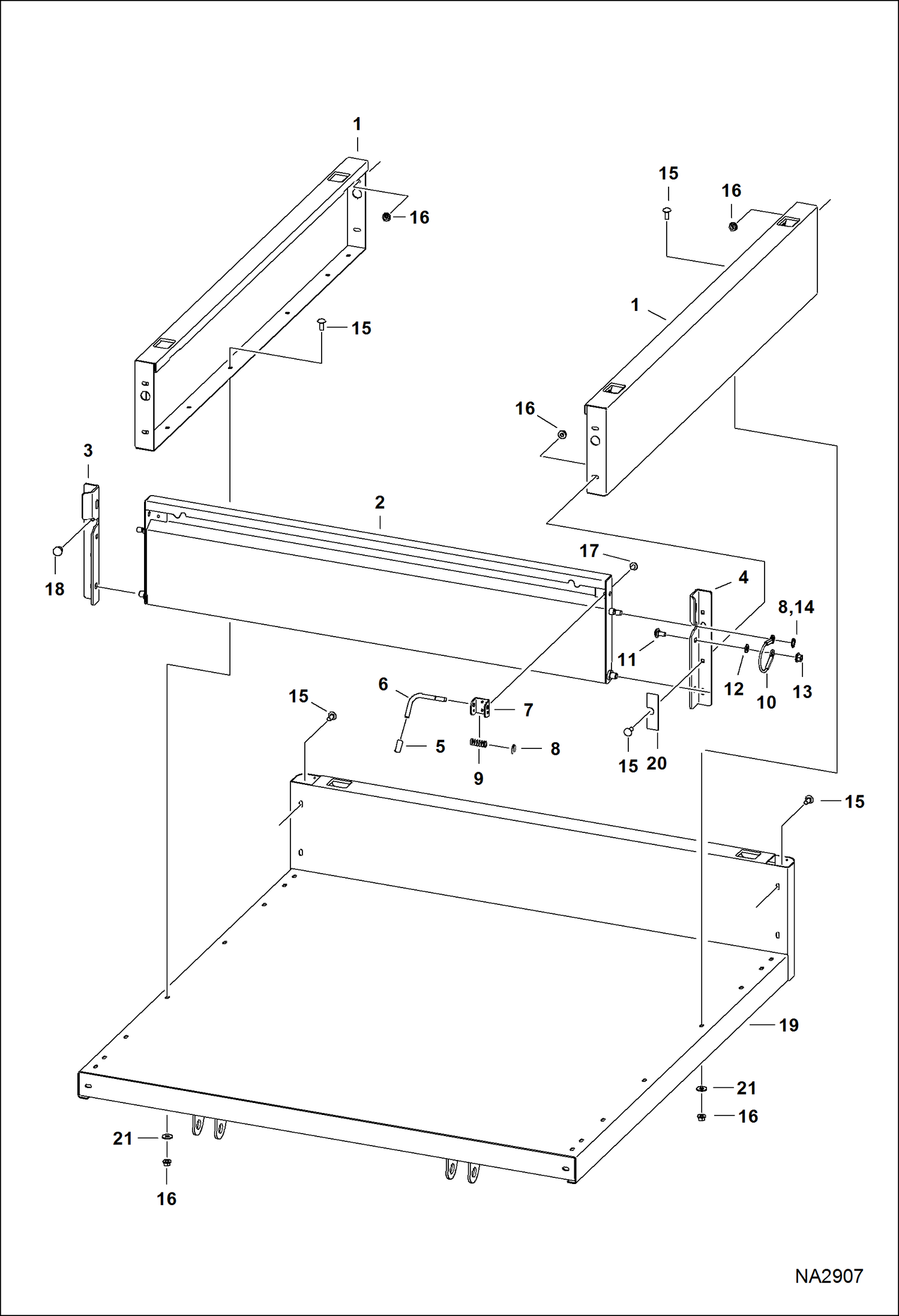

Запчасти Bobcat 5600 BOX ASSEMBLY (Side & Tailgate) MAIN FRAME

1

7190020

SIDE, BOX W/O stake pockets

2

TAILGATE, TOOLCAT NLA - W/ 11,9 mm (.47'') dia pin ring groove - Order 7158605 tailgate & (2) of Ref. 8 - Was 7158605 - D

2

7158605

TAILGATE, TOOLCAT W/ 8,9 mm (.33'') dia pin ring groove

3

6813774

SUPPORT LH

4

6813773

SUPPORT RH

5

6681652

CAP

6

7156194

PIN, LATCH

7

7151652

BRACKET, LATCH

8

6681651

RING 7,9 mm (.312'') ID - Use W/Ref. 1 (NLA/7158605 tailgate)

8

6681651

RING 7,9 mm (.312'') ID - Use W/Ref. 1 (7158605 tailgate)

9

6610082

SPRING

10

6681649

CABLE

11

28CM1020

BOLT 10 x 20 mm

11

28CM820

BOLT 8 x 20 mm

12

15EM100

WASHER 10 mm

12

15EM80

WASHER 8 mm

13

43DM10

NUT

14

22J8

SNAP RING EXTERNAL 11,7 mm (.46'') ID - Use W/Ref. 2 (NLA/7158605 tailgate)

15

28CM820

BOLT

16

51DM8

NUT

17

6589675

SCREW

18

6597572

BUMPER

19

BASE See Illustration BOX ASSEMBLY/ NA2906

20

7106297

DECAL

21

17EM80

WASHER optional
