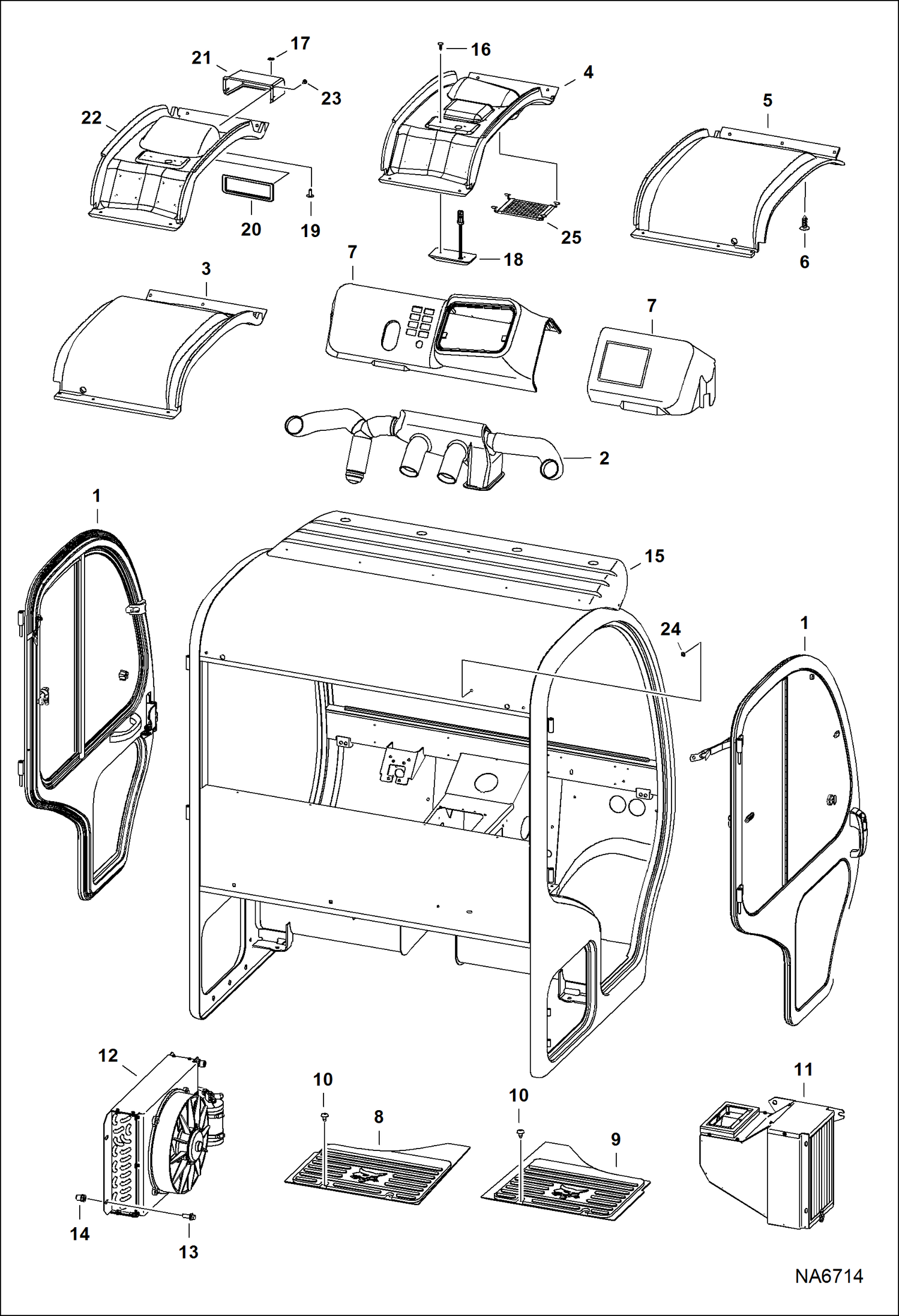

Запчасти Bobcat 5600 OPERATOR CAB (Enclosure) MAIN FRAME

1

DOOR ASSY See Illustration CAB DOORS/ PE1751

2

HVAC DUCT See Illustration HEATER & A/C/ PE3323

3

7203706

HEADLINER, LH Was 7121376 - B,D

4

7216183

HEADLINER, CENTER W/O radio

4

7216326

HEADLINER, CENTER See Illustration RADIO KIT/ NA6715 W/ radio

5

7203705

HEADLINER, RH Was 7121375 - B,D

6

6683172

CLIP plastic tree

7

DASH ASSY See Illustration HEATER & A/C/ PE3323

8

7104922

FLOORMAT

9

7104923

FLOORMAT

10

6589675

SCREW

11

HVAC ASSY See Illustration HEATER & A/C/ PE3326

12

CONDENSOR ASSY See Illustration HEATER & A/C/ PE3345

13

29CM820

SCREW

14

6813676

INSERT

15

CAB, W/A See Illustration OPERATOR CAB/ NA2903

16

6664221

RETAINER

17

6675212

RETAINER

18

6680326

LIGHT

19

6683172

CLIP

20

7100395

PANEL HEADLINER

21

7100396

ENCL HEADLINER

22

7203707

INSULATION, HEADLINER

23

58G806

SCREW

24

7188745

PLUG

25

7104469

HOLDER HANDBOOK
