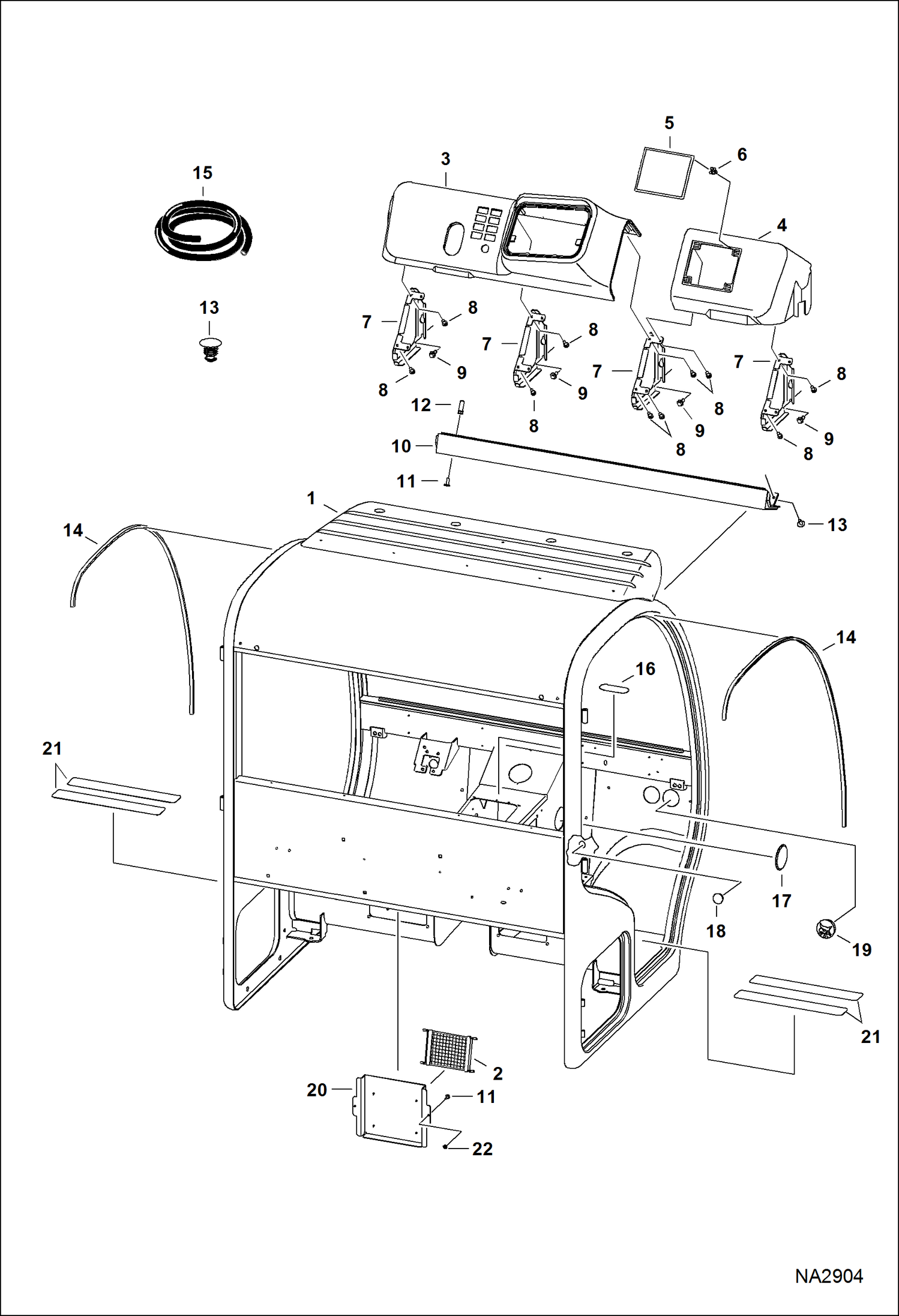

Запчасти Bobcat 5600 OPERATOR CAB (Dash) MAIN FRAME

1

CAB, W/A See Illustration OPERATOR CAB/ NA2903

2

7104469

HOLDER HANDBOOK

3

6813615

DASH COVER LH - W/O heater

4

7116157

COVER RH - W/O heater

5

7125506

PANEL W/Ref. 6

6

7125507

CLIP

7

6816487

BRACKET dash

8

1CM612

BOLT

9

26GM6020

SCREW

10

7127225

COVER wiper assy

11

6803202

SCREW

12

6816853

INSERT

13

6683172

CLIP plastic tree

14

EDGE TRIM NLA - 1778 mm (70'') - Order Ref. 15

15

6682492

TRIM bulk - sold per foot

16

6808478

DECAL

17

6691331

PLUG

18

6648391

PLUG

19

6718796

PLUG

20

7163236

BRACKET

21

6588953

TREAD safety

22

51DM6

NUT
