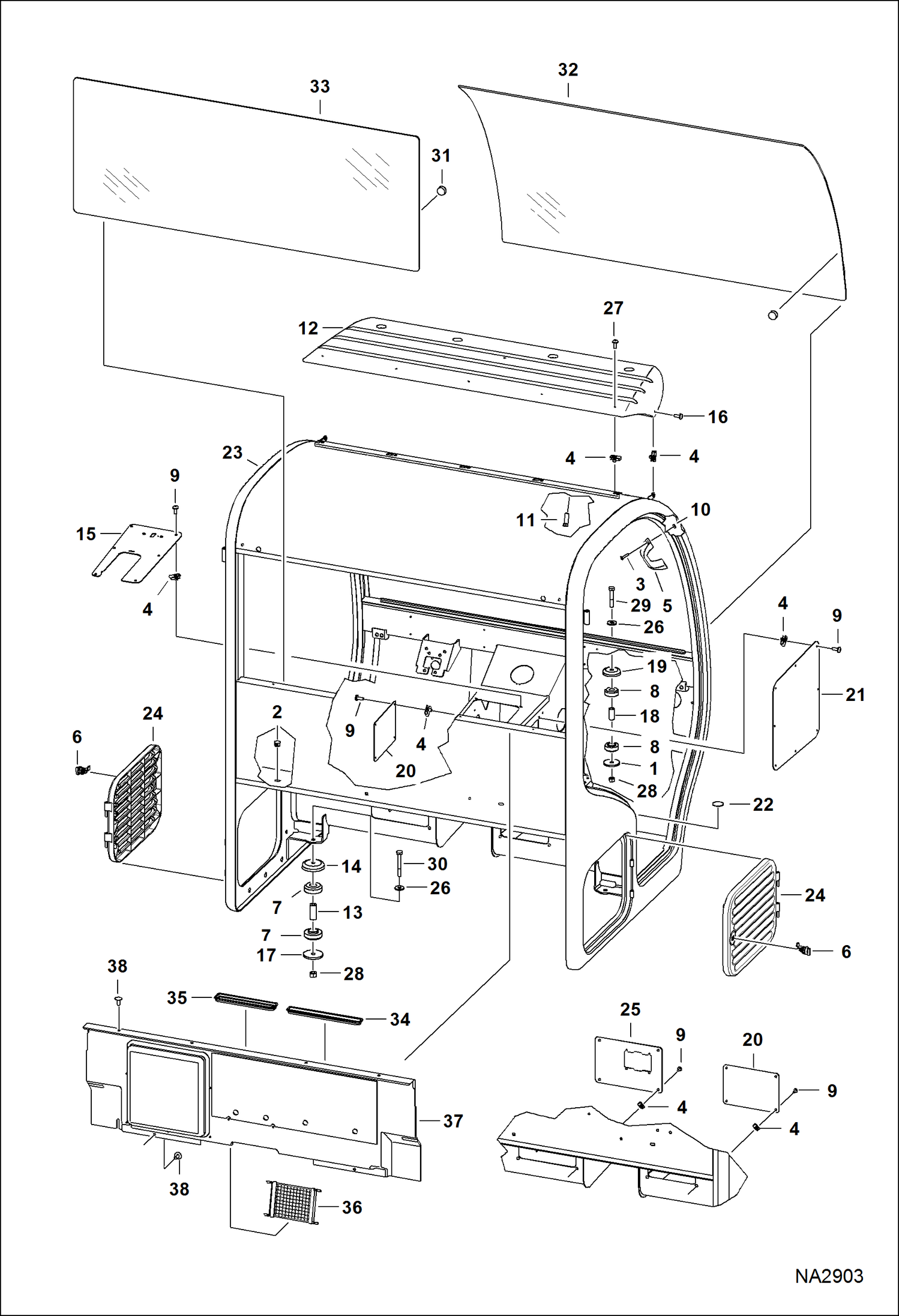

Запчасти Bobcat 5600 OPERATOR CAB MAIN FRAME

1

6564692

WASHER

2

6649949

PLUG

3

6664566

BOLT

4

6676026

NUT

5

6680967

HANDLE grab

6

6681922

LATCH

7

6688993

MOUNT

8

6690319

MOUNT

9

6803202

SCREW

10

6815640

NUT

11

6816853

INSERT

12

7116207

COVER light

13

7116850

SPACER

14

7116851

CUP

15

7120621

COVER

16

7122310

TORX BOLT

17

7124253

WASHER

18

7127304

SPACER

19

7127305

WASHER

20

7132619

COVER LH console

21

7133213

COVER RH console

22

6679966

PLUG

22

7157324

DECAL plug

23

7170711

CAB, W/A assy

24

7190171

COVER, ACCESS

25

7196938

COVER

26

18EM1235

WASHER

27

29CM620

SCREW

28

53DM12

NUT

29

7CM1270

SCREW

30

7CM1290

SCREW

31

7101512

BUMPER

32

7116155

WINDOW, FRONT

32

6808882

ADHESIVE, URETHANE

32

7102268

PRIMER 0,12 L (4.2 U.S. fl oz)

32

7230824

ADHESIVE, NON-PRIMER 0,31 L (10.5 U.S. fl oz)

33

7116156

GLASS rear

33

6808882

ADHESIVE, URETHANE

33

7102268

PRIMER 0,12 L (4.2 U.S. fl oz)

33

7230824

ADHESIVE, NON-PRIMER 0,31 L (10.5 U.S. fl oz)

34

7100392

COVER

35

7100393

COVER

36

7104469

HOLDER HANDBOOK

37

7204021

PANEL, REAR Was 7121372 - B,D

38

6683172

CLIP plastic tree
