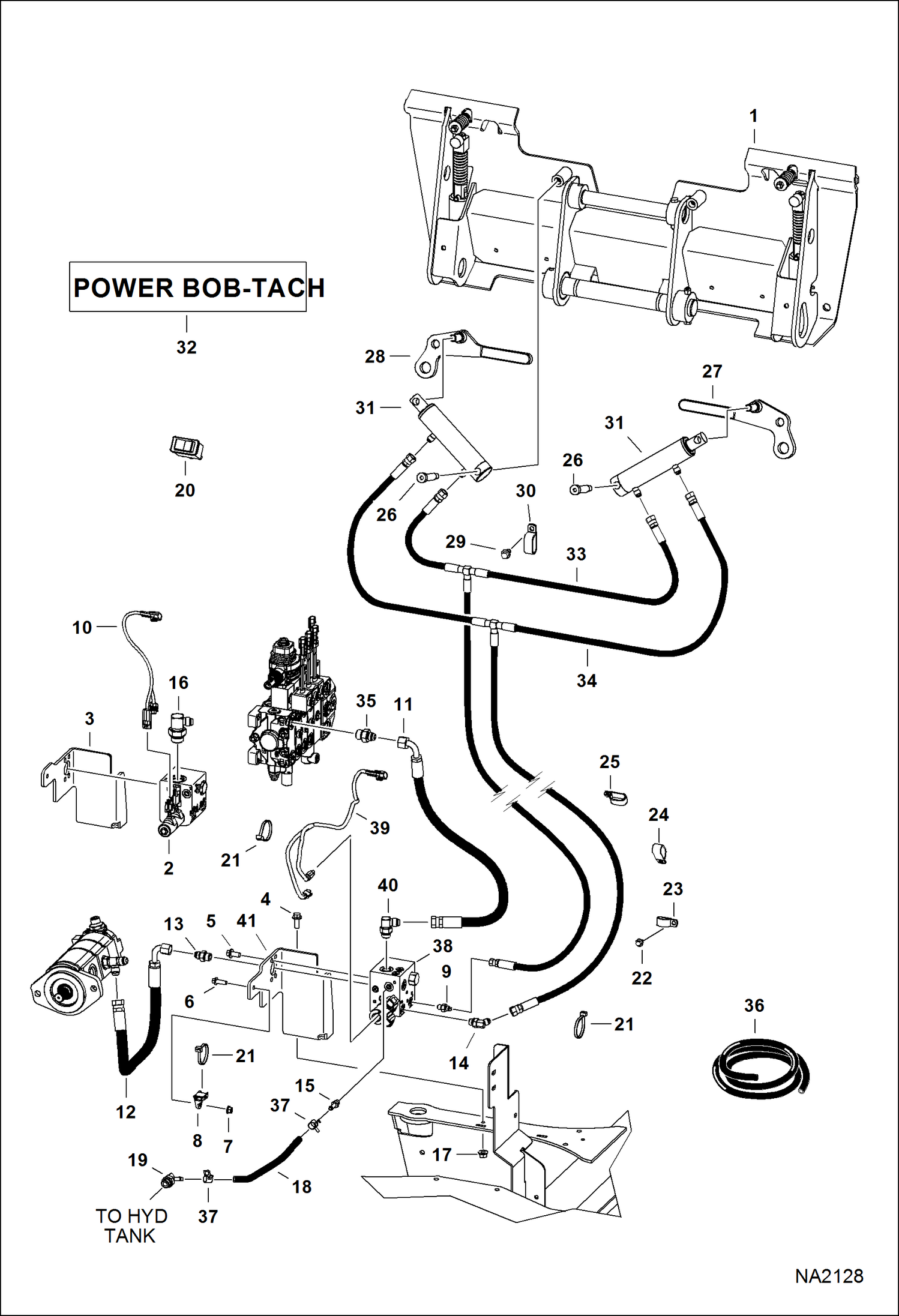

Запчасти Bobcat 5600 POWER BOB-TACH (Hydraulic) (A0W116220 & Above) ACCESSORIES & OPTIONS

1

BOB-TACH See Illustration POWER BOB-TACH/ PE3533

2

VALVE See Illustration POWER BOB-TACH/ MS1835 - steel

3

7139460

MOUNT, VALVE Use W/Ref. 2

4

29CM1025

BOLT

5

29CM1020

BOLT

6

29CM825

BOLT

7

51DM8

NUT

8

6678818

MOUNT

9

15KB0404

FTG HYD S Connector

10

7144171

HARNESS, POWER BOB-TACH Use W/Ref. 2

11

7152807

HOSE ASSY work valve

12

7152808

HOSE ASSY gear pump

13

7145189

FITTING

14

18KB0606

FITTING, HYD ELBOW

15

6734090

ADAPTER

16

17KB0812

FITTING, HYD ELBOW Use W/Ref. 2 - Was 17KB00812B - D

16

79K12

O RING 10

17

51DM10

NUT

18

HOSE NLA - hydraulic tank - 254 mm (10'') long - Order Ref. 36

19

7164848

FITTING

20

6674585

SWITCH

21

6624289

STRAP, TIE

22

26GM8016

SCREW

23

31H26

CLIP insulated clamp

24

31H37

CLIP insulated clamp

25

31H38

CLAMP

26

38C1040

BOLT

27

7148396

RH LEVER

28

7148395

LH LEVER

29

26GM10020

BOLT

30

31H42

CLIP insulated clamp

31

CYLINDER See Illustration POWER BOB-TACH/ PE3400

32

7155635

DECAL, BOBCAT power Bob-Tach

33

7152288

HOSE ASSY See BTI404

34

7152289

HOSE ASSY See BTI404

35

15KB0810

FITTING, HYD CONNECTOR

36

6577822

HOSE bulk - sold per foot

37

5HM14

CLAMP

38

VALVE, POWER BOB-TACH See Illustration POWER BOB-TACH/ NA6327 - aluminum

39

7202520

HARNESS, POWER BOB-TACH Use W/Ref. 38

40

17KB0808

FITTING, HYD ELBOW Use W/Ref. 38

40

79K8

O RING 10

41

7202499

MOUNT, VALVE Use W/Ref. 38
