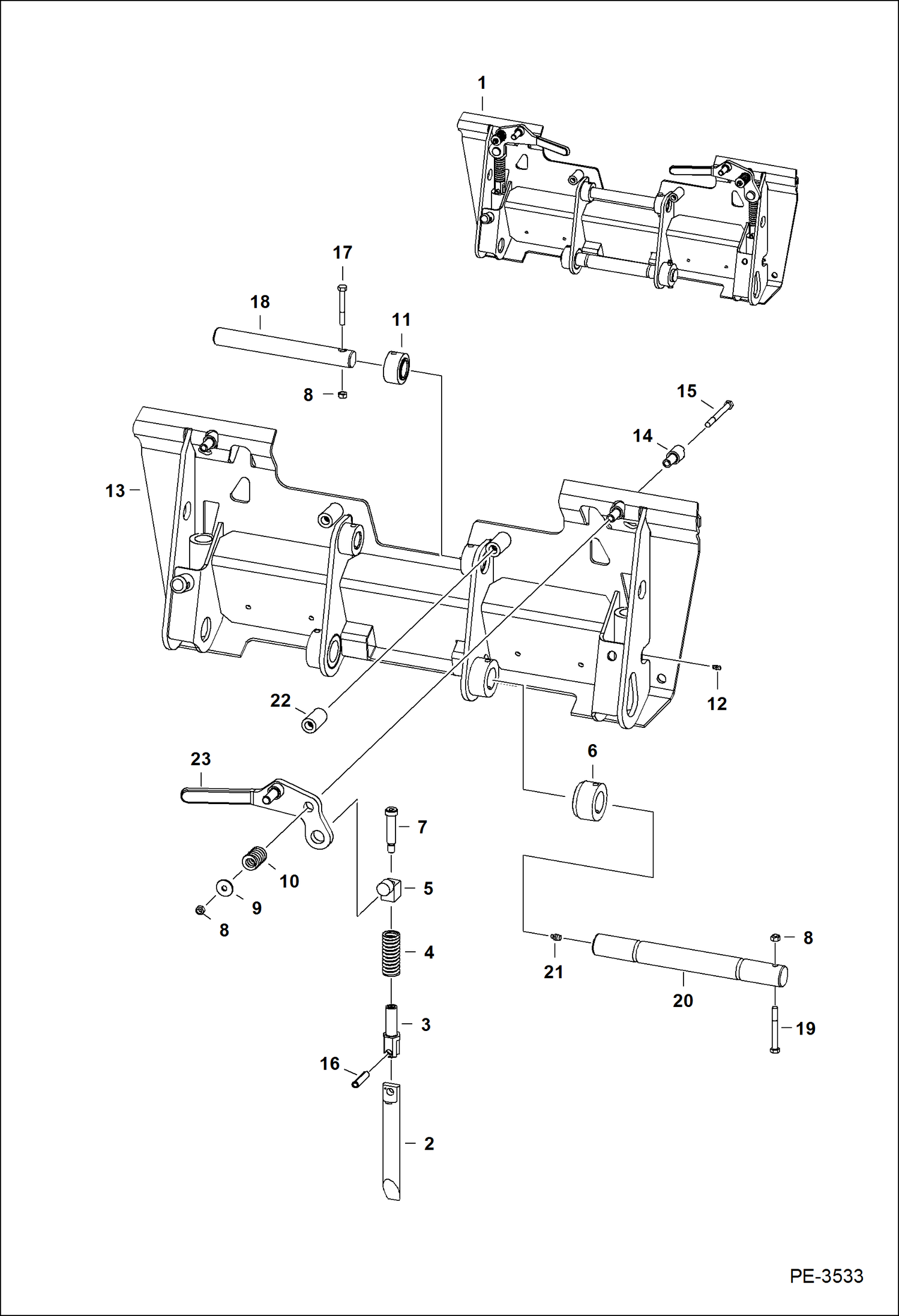

Запчасти Bobcat 5600 POWER BOB-TACH (A0W111616 & Above) ACCESSORIES & OPTIONS

1

BOB-TACH See Illustration POWER BOB-TACH/ NA6877 - NLA - Ref. 2-22 - Was 7145525 - A

2

6737191

WEDGE

3

6704248

PIVOT, WEDGE

4

6578253

SPRING, COMPRESSION

5

6704240

PIVOT ASSY.

6

6811285

BUSHING weld on

7

6728473

BOLT, SHOULDER pre-applied thread locker

8

85D6

NUT, 5

9

619021

WASHER, 5

10

6713040

SPRING

11

6813145

BUSHING

12

10H35

FITTING, GREASE 10

13

FRAME NSS

14

6702958

BUSHING, WELD-ON

15

17C660

BOLT

16

14J5032

PIN, STRAIGHT

17

17C644

BOLT

18

6813422

PIN

19

17C652

BOLT

20

6813421

PIN

21

10H25

FITTING, GREASE 5

22

7148394

SPACER

23

7148396

RH LEVER

23

7148395

LH LEVER
