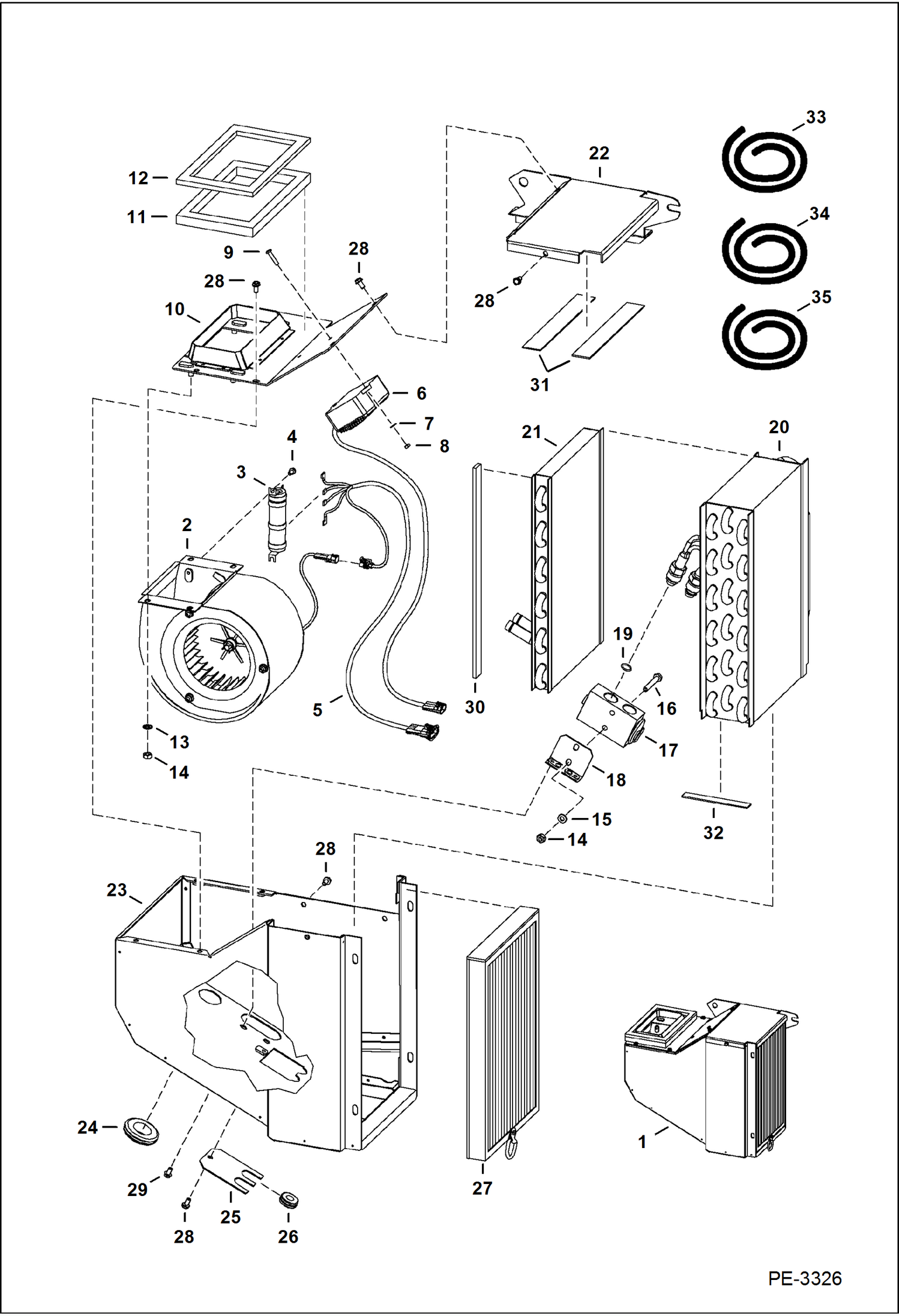

Запчасти Bobcat 5600 HEATER & A/C (HVAC Assy) ACCESSORIES & OPTIONS

1

6691427

HVAC ASSY Ref. 2-32

2

6693212

BLOWER 12 volt

3

6677552

RESISTOR

4

6693233

SCREW

5

6693220

HARNESS BLOWER

6

6693232

THERMOSTAT

7

6693223

WASHER

8

6684557

NUT

9

6693229

SCREW

10

6693218

COVER

11

6693224

INSULATION

12

6693225

INSULATION

13

6693230

WASHER

14

6693226

NUT

15

6693227

WASHER

16

6693231

BOLT

17

6675534

BLOCK, VALVE A/C

18

6693215

BRACKET valve

19

7009977

O-RING #8 - Was 6675538 - A

20

6693213

COIL evaporator

21

6693214

COIL heater

22

6693217

COVER

23

6693216

HOUSING

24

6693222

GROMMET

25

6693219

COVER

26

6690482

GROMMET

27

6693221

FILTER air

28

6691532

SCREW Was 6677118 - A

29

6679676

SCREW

30

FOAM NLA - 11.81'' (300mm) long - Order Ref. 33

31

FOAM NLA - 5.43'' (138mm) long - Order Ref. 34

32

FOAM NLA - 3.66'' (93mm) long - Order Ref. 35

33

6693234

FOAM 3/16'' X 5/8'' adhesive back - bulk - sold per foot

34

6693235

FOAM 1/16'' X 1'' adhesive back - bulk - sold per foot

35

6693236

FOAM 1/16'' X 1/2'' adhesive back - bulk - sold per foot
