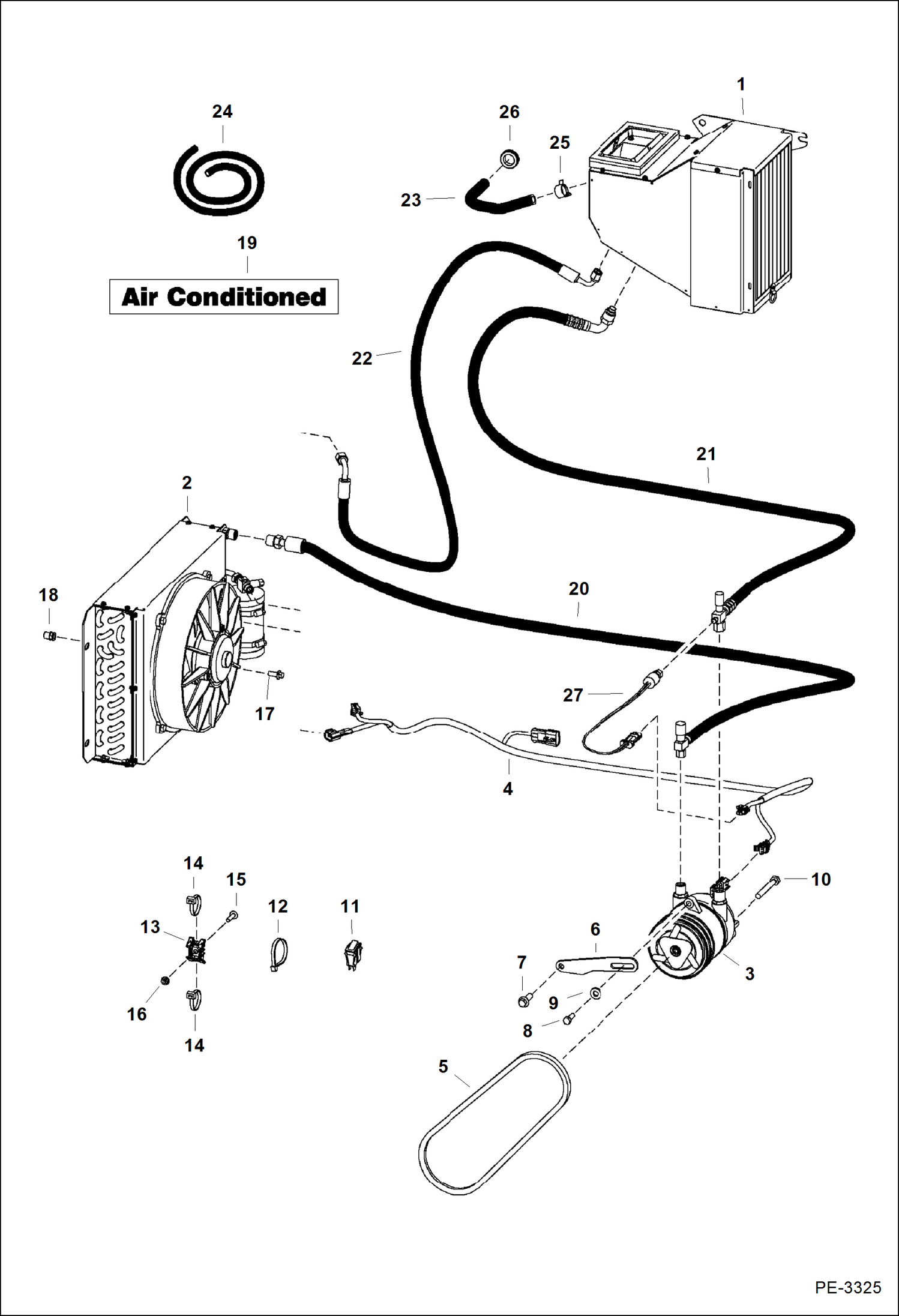

Запчасти Bobcat 5600 HEATER & A/C (A/C) ACCESSORIES & OPTIONS

1

HVAC ASSY

2

6691428

CONDENSER AC See Illustration HEATER & A/C/ PE3345 assy

3

6681461

COMPRESSOR A/C

4

7121849

HARNESS A/C

5

6726988

BELT A/C

6

6726648

BRACKET compressor

7

29CM1030

BOLT

8

5CM1025

BOLT

9

6557831

WASHER

10

5CM1080

SCREW

11

7169112

SWITCH, ROCKER A/C Was 6719176 - A

12

6682345

STRAP, TIE 8

13

6678974

MOUNT

14

6624289

STRAP, TIE

15

6816193

SCREW

16

51DM6

NUT

17

29CM820

SCREW

18

6813676

INSERT

19

6814453

DECAL A/C

20

6689189

HOSE ASSY

20

7009977

O-RING #8 - Was 6675538 - A

21

6689187

HOSE ASSY

21

7009978

O-RING #10 - Was 6675825 - A

22

6689188

HOSE ASSY

22

7009976

O-RING #6 - Was 6675824 - A

23

HOSE NLA - heater - 10.5'' (266.7mm) long - Order Ref. 24

24

6565977

HOSE bulk - sold per foot

25

5HM20

CLAMP

26

7113425

GROMMET

27

6679085

SWITCH LPCO - Was 6697954 - A
