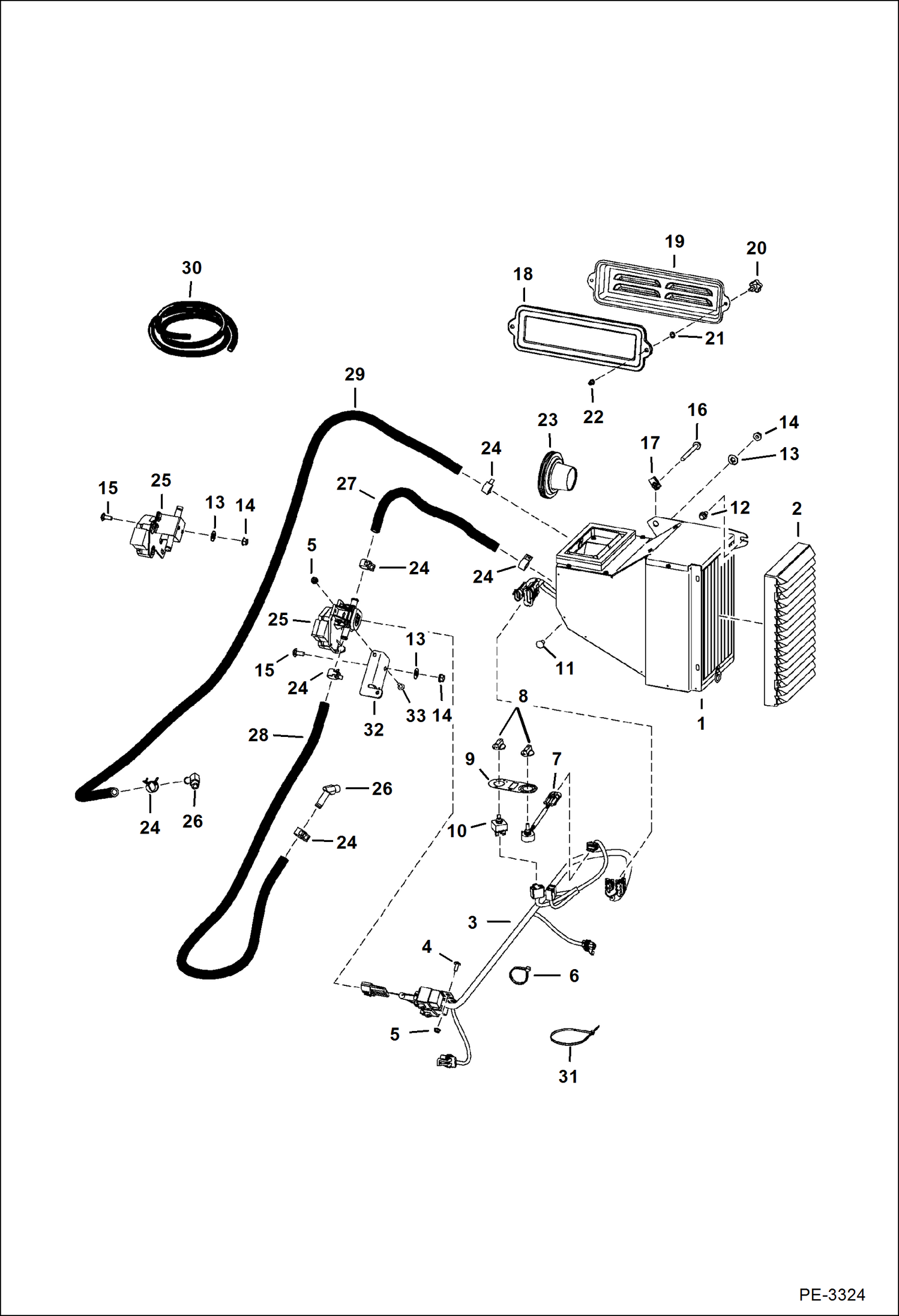

Запчасти Bobcat 5600 HEATER & A/C (Heater) ACCESSORIES & OPTIONS

1

6691427

HVAC ASSY

2

7124895

COVER filter

3

7121848

HARNESS

4

6803202

SCREW

5

51DM6

NUT

5

51DM6

NUT

6

6682345

STRAP, TIE 8

7

6688577

RESISTOR heater control - Use W/Ref. 25 (7125073 valve)

7

6693341

RESISTOR Use W/Ref. 25 (6693147 valve)

8

6675177

KNOB control

9

6808433

DECAL

10

6675176

SWITCH blower

11

28CM816

BOLT

12

26GM8020

SCREW

13

6675859

RETAINER

14

51DM8

NUT

15

28CM820

BOLT

16

29CM880

BOLT

17

6676169

NUT

18

6727140

FILTER, AIR HEATER CAB

19

6726608

COVER filter

20

6726386

KNOB

21

6676516

NUT push

22

6816611

INSERT

23

7106130

BELLOWS

24

5HM20

CLAMP

25

7125073

VALVE heater - metal - Use W/Ref. 7 (6688577 switch)

25

7003456

VALVE, MOTORIZED ASSY heater - plastic - Use W/Ref. 7 (6693341 resistor), Ref. 32, 33 & (2) of Ref. 5 - valve has direction arrows indicating correct flow - Was 6693147 - B

26

6731085

ELBOW

27

HOSE NLA - heater - 406,4 mm (16'') long - Order Ref. 30

28

HOSE NLA - heater - 1270 mm (50'') long - Order Ref. 30

29

HOSE NLA - heater - 2134 mm (84'') long - Order Ref. 30

30

6565977

HOSE bulk - sold per foot

31

6624289

STRAP, TIE

32

7144381

BRACKET MOUNT Use W/Ref. 25 (6693147 valve)

33

29CM616

BOLT
