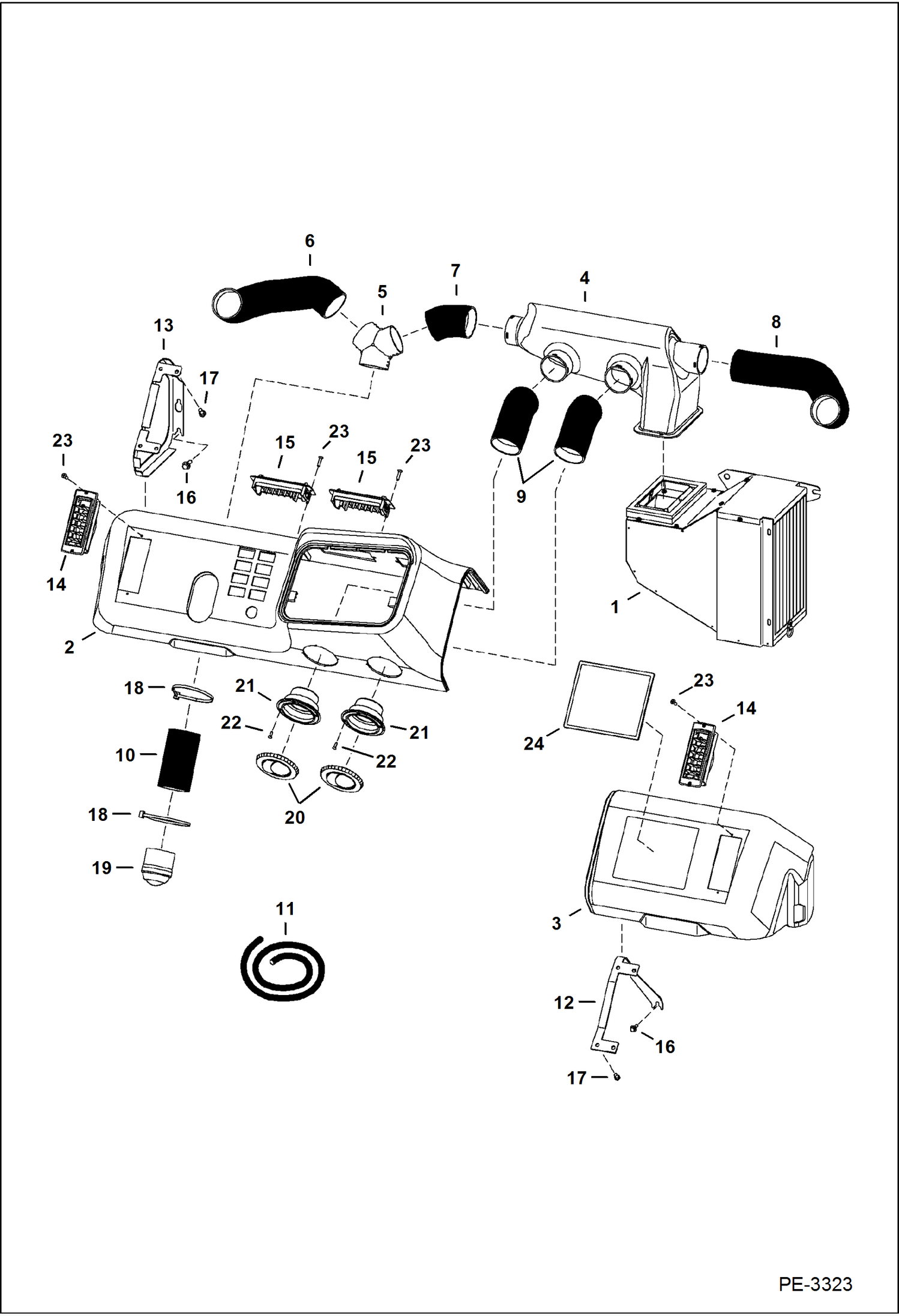

Запчасти Bobcat 5600 HEATER & A/C (Dash) ACCESSORIES & OPTIONS

1

HVAC ASSY See Illustration HEATER & A/C/ PE3324

2

7113232

DASH L.H.

3

7116158

DASH R.H.

4

7132898

DISTRIBUTOR HVAC

5

7139529

DISTRIBUTOR HVAC

6

HOSE FLEX NLA - 13.5 in. (343 mm) long - Order Ref. 11 - Was 7139528 - A

7

HOSE FLEX NLA - 4 in. (102 mm) long - Order Ref. 11 - Was 7139526 - A

8

HOSE FLEX NLA - 17 in. (432 mm) long- Order Ref. 11 - Was 7132513 - A

9

7113424

HOSE

10

HOSE FLEX NLA - 5 in. (127 mm) long - Order Ref. 11 - Was 7139527 - A

11

6679863

HOSE bulk - sold per foot

12

7121973

BRACKET dash R.H.

13

6816487

BRACKET dash L.H.

14

6680953

LOUVER

15

6676713

LOUVER

16

26GM6020

SCREW

17

1CM612

BOLT

18

6624289

STRAP, TIE

19

7139530

VENT

20

6674231

VENT, HEATER CAB ROUND

21

6676599

ADAPTER

22

6814024

SCREW

23

6685743

SCREW

24

7125506

PANEL

24

7125507

CLIP
