Запчасти Bobcat 5600 GEAR CASE (Kubota - V2003-M-DI-T) (S/N E/ 9PZ999 & Below) POWER UNIT

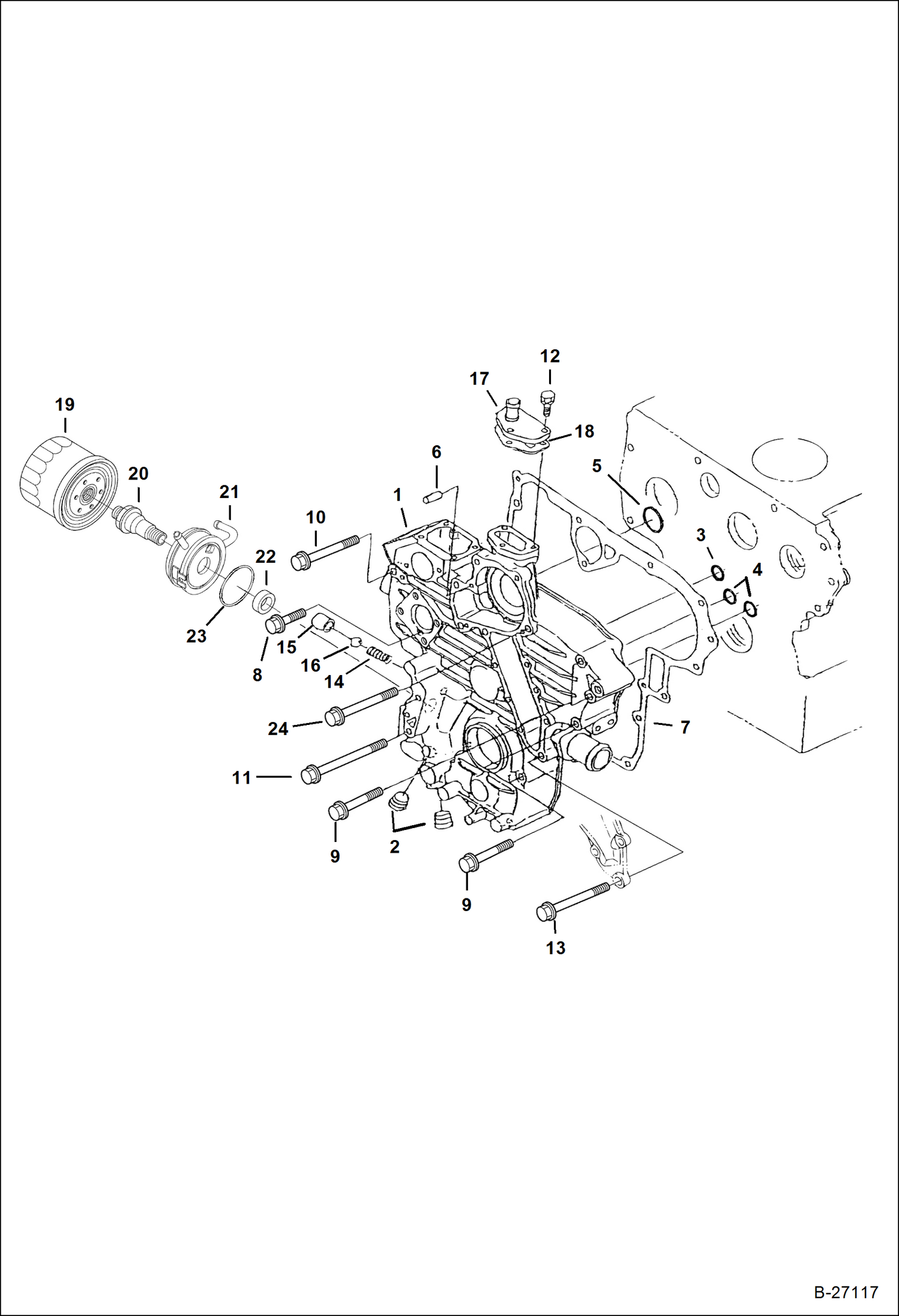

Схема запчастей Bobcat 5600 - GEAR CASE (Kubota - V2003-M-DI-T) (S/N E/ 9PZ999 & Below) POWER UNIT

Артикул

Название

Примечание

Количество

1

HOUSING, GEAR NLA - W/Ref. 2 - Order 7012337 gearcase, 7010599 gasket and DO NOT USE Ref. 3-5 - Was 6688645 - A

2

6672360

PLUG

3

6685466

O-RING

4

6685467

O-RING

5

6685468

O-RING

6

3974395

PIN

7

6684770

GASKET

8

6680706

BOLT

9

6692375

BOLT

10

6680886

FLANGE

11

6692376

BOLT

12

1CM620

BOLT Was 4CM620 - A

13

6692377

BOLT

14

6652652

SPRING

15

3974893

SEAT

16

10J13

BALL

17

3974894

FLANGE water return

18

6666803

GASKET

19

6675517

FILTER, OIL ENG 12

20

CONNECTOR NLA - Order 7020646 connector and 7020866 collar - Was 6675681 - A

20

7020646

CONNECTOR

21

OIL COOLER See Illustration OIL COOLER/ B27118

22

6685637

COLLAR

22

7020866

COLLAR

23

6686402

SEAL

24

6692377

BOLT

Выбрано товаров: 26
