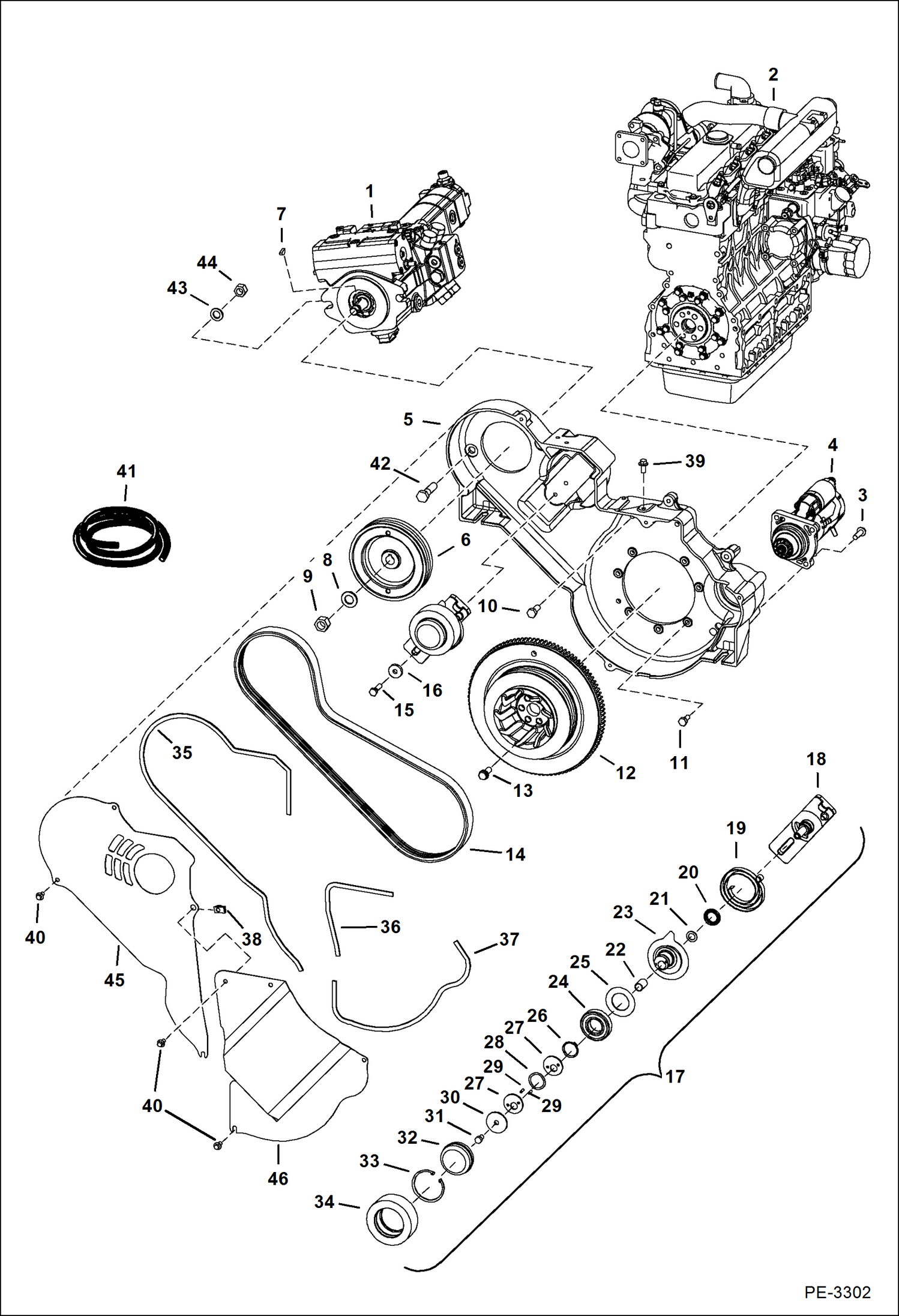

Запчасти Bobcat 5600 ENGINE & ATTACHING PARTS (Drive Belt, Hyd.) POWER UNIT

1

PUMP See Illustration HYDROSTATIC CIRCUITRY/ PE3291

2

ENGINE, V2003-M-DI-TE2B-BC-8 See Illustration ENGINE & GASKET KITS/ NA1525

3

29CM1035

SCREW

3

29CM1035

SCREW

4

STARTER See Illustration STARTER/ B16488R

5

7105575

HOUSING

6

7130563

PULLEY

7

6J807

KEY, WOODRUFF

8

6576033

WASHER

9

96D12

NUT

10

6719828

BOLT

11

6719825

BOLT

12

FLYWHEEL ASSY See BTI388uwm NLA - W/ring gear - Order 7155781 flywheel - A

12

6510470

RING GEAR

12

14J1808

PIN

12

7155781

FLYWHEEL, ENG ASSY See BTI388uwm - W/ring gear

13

6654487

BOLT

14

6690699

BELT

15

29CM1035

SCREW Was 1CM1035 - B

16

6704484

WASHER

17

7125464

IDLER ASSY W/Ref. 18-34

18

7101662

BRACKET

19

6705491

SPRING

20

6685735

SEAL

21

6703168

BEARING

22

6682442

SLEEVE

23

7125466

HUB ASSY

24

6668114

BEARING

25

6664209

SEAL

26

6658536

RING

27

6705231

WASHER

28

6710585

WASHER

29

6713370

PIN

30

6705232

WASHER

31

17C610

BOLT

32

6708770

CAP

33

6658847

RING

34

6704391

PULLEY Was 7125465 - D

35

SEAL NLA - 47.27 in. (120,06mm) - Order Ref. 41

36

SEAL NLA - 12.89 in.(32,74mm) - Order Ref. 41

37

SEAL NLA- 21.93 in (55,70mm) - Order Ref. 41

38

6676169

NUT

39

29CM1020

BOLT

40

29CM816

SCREW

41

6648416

SEAL BULK /FT bulk- sold per foot

42

1CM1660

SCREW hex

43

1EM160

WASHER

44

4DM16

NUT

45

7159299

COVER, BELT upper - Was 7126414 - A

46

7126415

COVER lower
