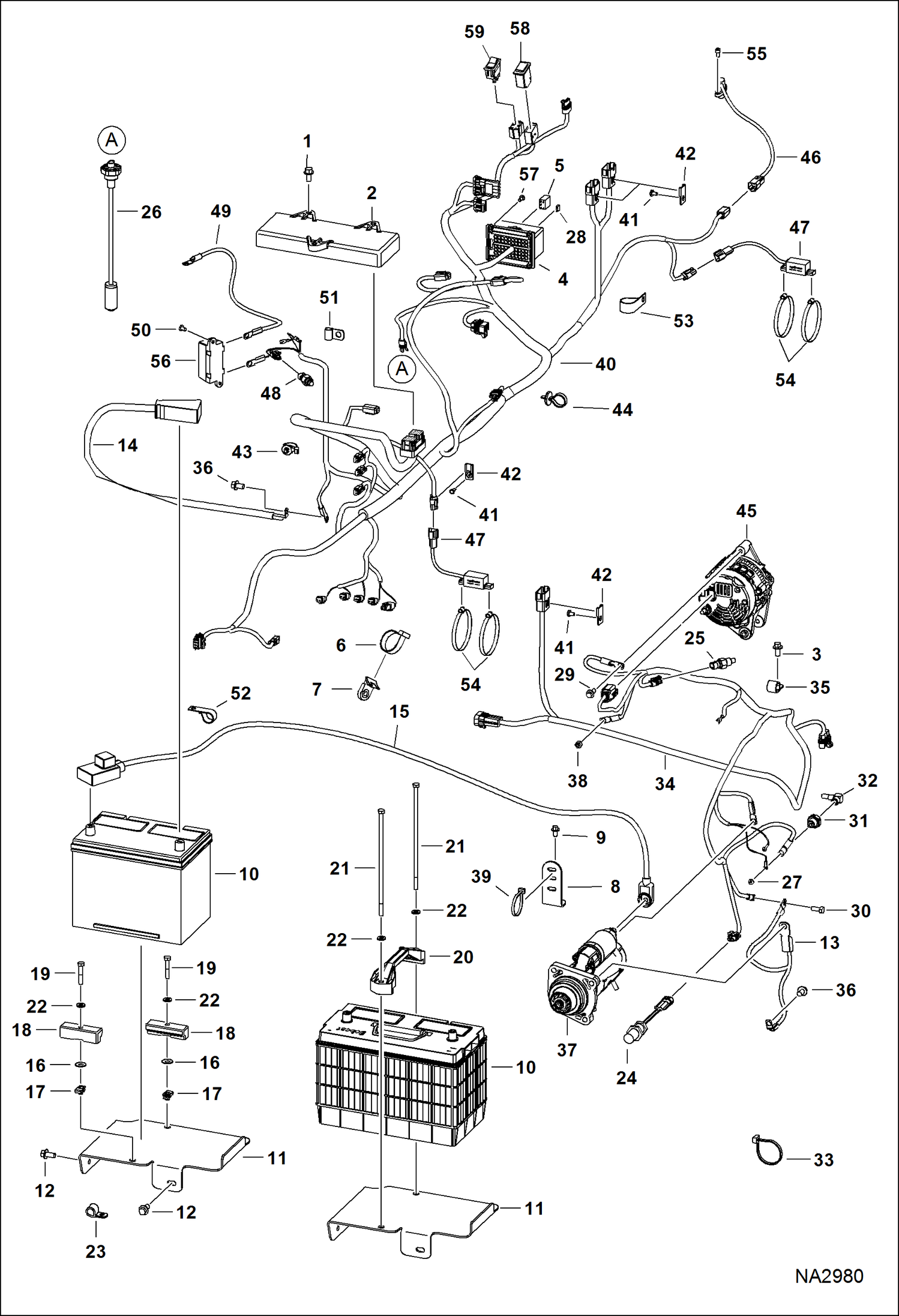

Запчасти Bobcat 5600 ENGINE ELECTRICAL (A0W1 & Above) ELECTRICAL SYSTEM

1

35C612

BOLT

2

6678688

CONTROLLER drive

3

29CM816

SCREW

4

6688976

FUSE BOX

4

6692936

COVER fuse box

5

6691156

RELAY

6

6678669

STRAP

7

6684641

MOUNT

8

7120366

BRACKET

9

26GM8016

SCREW

10

6674687

BATTERY, DRY 600 AMP

10

6665427

BATTERY, DRY 950 AMP

10

6630154

CAP danger

10

6630155

CAP poison

10

6514898

CAP tilt-tite

11

7200985

BRACKET, BATTERY

12

29CM1020

BOLT

13

7150819

CABLE negative

14

6731665

CABLE negative

15

6809043

CABLE positive

16

6675859

RETAINER standard battery

17

7021345

NUT, CLIP

18

7120672

TIE DOWN standard battery

19

17C528

BOLT standard battery

20

6569203

CLAMP cold weather battery

21

7197731

BOLT cold weather battery - Was 17C5152 - B

22

25E15

WASHER

23

30H22

CLIP

24

6684037

SENSOR speed

25

6718414

SENDER, TEMP ENG

26

7179837

SENSOR FUEL Was 6680436 - A

27

12D8

NUT

28

7131022

FUSE, 30A MINI 5

29

29CM820

SCREW

30

6719827

BOLT

31

6631010

SWITCH, PRESS OIL ENG engine oil

32

6707040

ELBOW

33

6682345

STRAP, TIE 8

34

7120303

HARNESS engine

35

30H37

CLAMP

36

29CM1016

BOLT

37

STARTER See Illustration STARTER/ B16488R

38

4DM8

NUT

39

6624289

STRAP, TIE

40

7116858

HARNESS main frame

41

6630207

RIVET 5

42

6665000

CLIP

43

6681871

MOUNT

44

6675734

STRAP, TIE

45

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ C3529

46

6684443

SENSOR wheel speed

47

6689591

SENSOR position

48

6727869

SENDER,HYD TEMP

49

7125233

HARNESS mega fuse

50

6669065

RIVET POP

51

30H23

CLAMP

52

30HJ512

CLAMP

53

30HJ616

CLIP

54

42HS8

CLAMP

55

7102184

SCREW

56

6675154

HOLDER

56

6675155

FUSE, 100A mega

57

1CM520

BOLT Was 7135909 - B,D

58

6679973

SWITCH, ROCKER SELECTOR STEERING

59

6679974

LIGHT WHEEL NEUTRAL switch
