STEERING CYLINDER

Запчасти Bobcat 5600 STEERING CYLINDER HYDROSTATIC SYSTEM

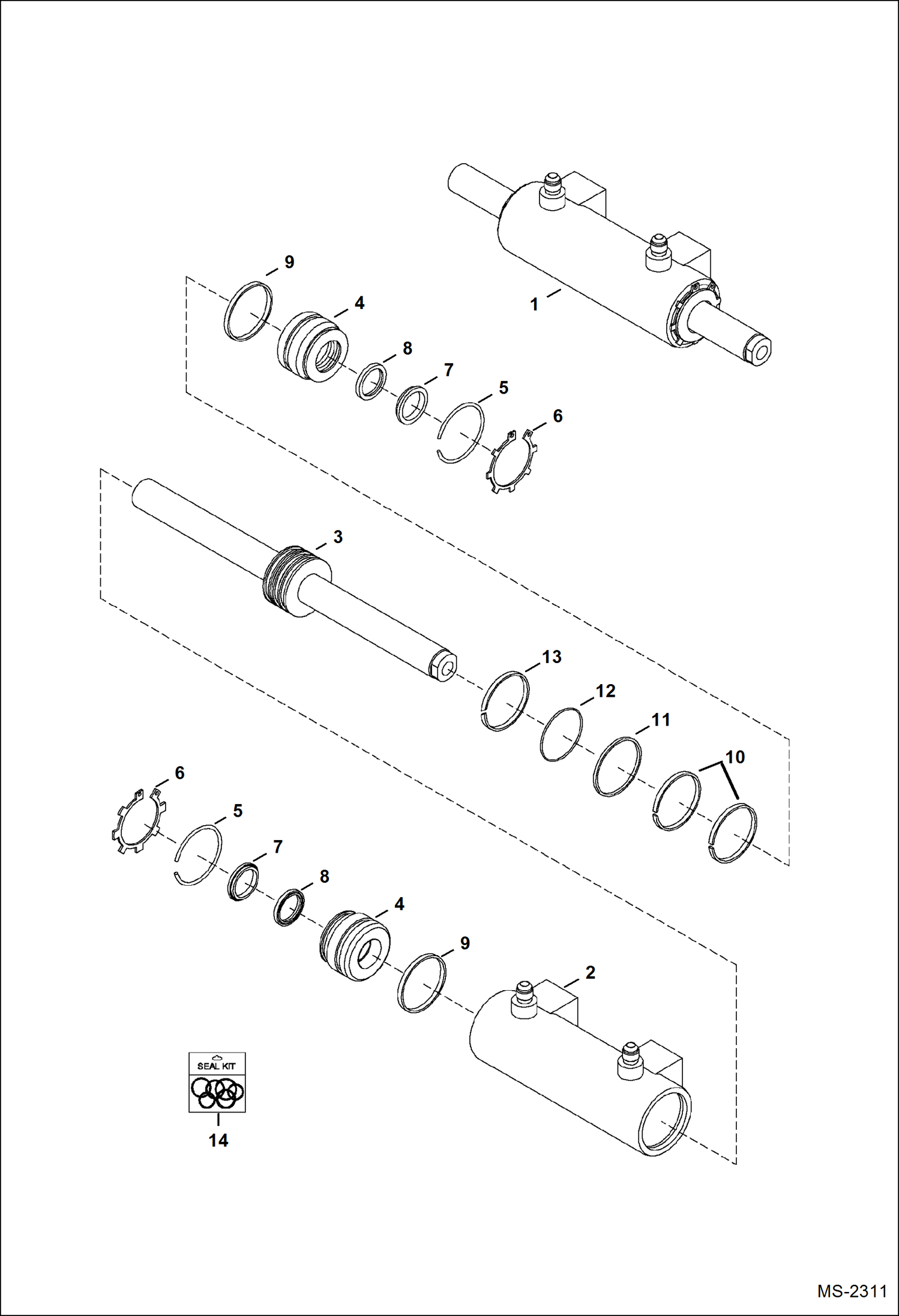

Схема запчастей Bobcat 5600 - STEERING CYLINDER HYDROSTATIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6688675

CYLINDER, STEERING Ref. 2-14

2

TUBE NSS - cylinder - Order Ref. 1

3

6693153

ROD ASSY

4

6693154

HEAD

5

6693156

RING internal retainer

6

6693155

RING external

7

SEAL NSS - rod wiper

8

SEAL NSS - rod

9

SEAL NSS - cyl. head

10

MAGNET NSS

11

SEAL NSS - piston

12

O-RING NSS

13

RING NSS - wear

14

6693157

SEAL KIT Includes Ref. 7-13
