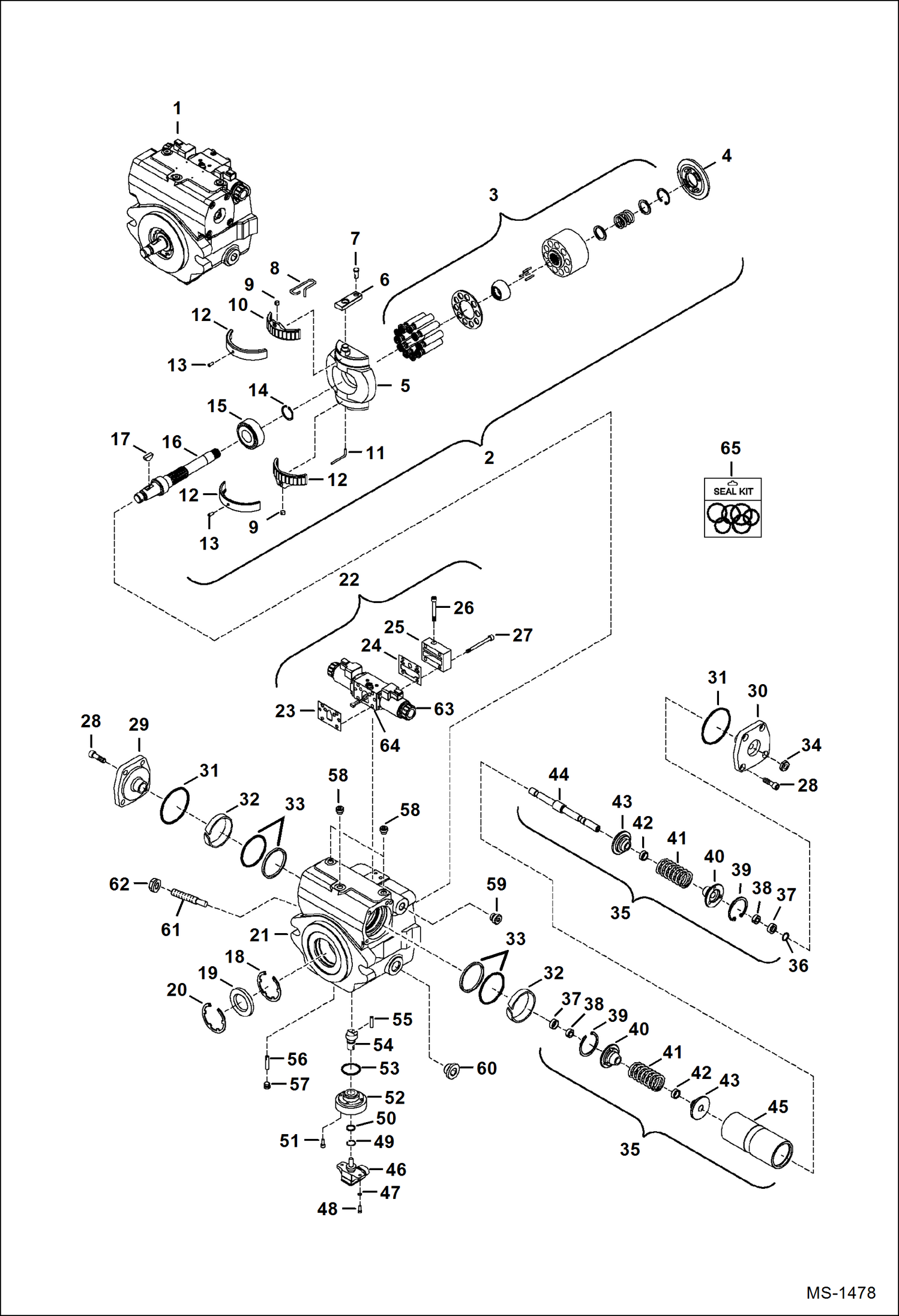

Запчасти Bobcat 5600 HYDROSTATIC PUMP (Pulley End) HYDROSTATIC SYSTEM

1

FRONT HSG ASSY NSS

2

6692688

ROTARY GROUP Ref. 3-17

3

6692676

ROTARY GROUP

4

6692680

PLATE control

5

6692687

CRADLE

6

6692723

ARM

7

6967430

PIN

8

6692722

WIRE

9

6967436

ROLLER roller - Was 6692715 - D

10

6692726

BEARING cradle

11

6671772

WIRE

12

6692673

BEARING liner

13

6671782

PIN

14

6687999

RING, SNAP retaining

15

6692711

BEARING roller

16

6692681

SHAFT drive

17

6J807

KEY, WOODRUFF

18

6692725

RING retaining

19

6692696

SEAL shaft

20

6692692

RING retaining

21

6692686

HOUSING

22

6692690

MODULE control assy - W/Ref. 23-27, 63 & 64

23

6682959

GASKET

24

6692672

GASKET

25

6692691

COVER W/filter

26

6682961

SCREW socket head

27

6682962

SCREW socket head

28

6692700

SCREW socket head

29

6692667

COVER

30

6692666

COVER

31

6692704

O-RING

32

6692695

RING guide

33

6692693

RING turcon-glyd

34

6692709

NUT

35

6692689

PISTON ASSY W/Ref. 36-45

36

6682920

O-RING

37

6967592

RING assembly - Was 6692694 - A

38

6692668

RING

39

6692702

RING retaining

40

6692721

COLLAR spring

41

6692717

SPRING pressure

42

RING NLA - spacer - Order Ref. 35 - Was 6692675 - A

43

6692720

COLLAR spring

44

6692719

ROD

45

6692665

PISTON positioning

46

6687984

SENSOR, PUMP HYD POSITION angle of rotation

47

6687998

SHIM

48

6692698

SCREW socket head

49

6692701

RING retaining

50

6692703

O-RING

51

6692699

SCREW socket head

52

6692677

HOUSING sensor

53

6692708

O-RING

54

6692678

SHAFT sensor

55

6688014

PIN clamping

56

6692728

PIN joint

57

6682878

SCREW

58

6676024

PLUG locking - Was 6691619 - D

59

6671845

PLUG locking - Was 6692713 - D

60

6692727

SCREW locking

61

6692710

PIN threaded

62

6682882

NUT seal lock

63

6697960

SOLENOID W/nut

63

7021343

NUT

64

HOUSING ASSY NLA - W/Ref. 23-27 - Order 6692690 - Was 6697961 - A

65

6692751

SEAL KIT complete - Ref. 19,23,24,31,33,36,57,58 & 60 - Also Ref. 4,7,8,19,20,21,23,27,29,31 & 32 from ILL. MS1479
