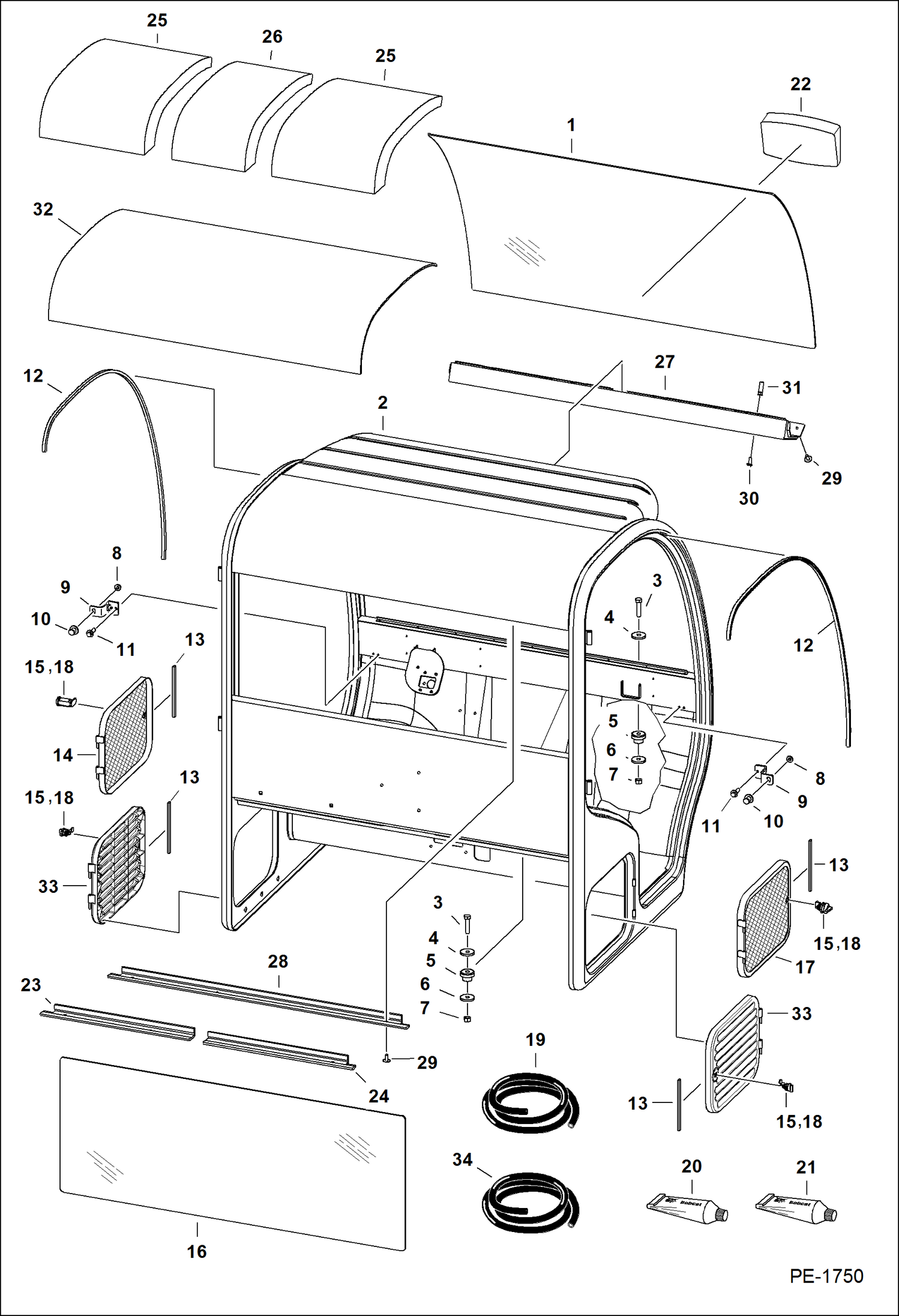

Запчасти Bobcat 5600 OPERATOR CAB MAIN FRAME

1

6813619

GLASS front

2

OPERATOR CAB See BTIWM-001 - NLA - Was 6811815 - A

2

7149395

HINGE cab door - Was 6807255 - A

2

6817347

HINGE, DOOR SERVICE access cover

3

10CM1455

BOLT

4

17EM140

WASHER Was 17EM00160B - B

5

6813936

MOUNT isolator

6

6805244

WASHER

7

53DM14

NUT

8

51DM10

NUT

9

7191628

BRACKET strikerbolt - Was 7144202 - A

10

6654170

STRIKER BOLT striker

11

29CM825

BOLT

12

EDGE TRIM NLA - 3175 mm (125'') long - Order Ref. 19

12

EDGE TRIM NLA - 1778 mm (70'') long - Order Ref. 19

13

SEAL NLA - 330,2 mm (13'') long - Order Ref. 34 - Was 6815097 - A

14

COVER ACCESS NLA - LH - steel - Order Ref. 33 - Was 6814011 - A

15

6681578

LOCK

16

6813620

GLASS rear

17

COVER ACCESS See BTI413 - NLA - RH - steel - Was 6814470 - A

18

6681922

LATCH

19

6682492

TRIM bulk - sold per foot

20

6808882

ADHESIVE, URETHANE 0,31 L (10.5 U.S. fl oz)

20

7230824

ADHESIVE, NON-PRIMER 0,31 L (10.5 U.S. fl oz)

21

7102268

PRIMER 0,12 L (4.2 U.S. fl oz) - Was 6808881 - A

22

6813416

INSULATION window

23

INSULATION NLA - Order Ref. 28 - Was 6813930 - A

24

INSULATION NLA - Order Ref. 28 - Was 6813931 - A

25

6813654

HEADLINER

26

6813655

INSULATION headliner

27

6814699

COVER wiper - fasten W/hook & loop

27

6817394

COVER wiper - bolt-on

28

6816876

INSULATION trim

29

6683172

CLIP Use on 6816876

30

6803202

SCREW

31

6816853

INSERT threaded

32

6816877

INSULATION headliner

33

7190171

COVER, ACCESS polypropylene

34

6648416

SEAL BULK /FT bulk - sold per foot
