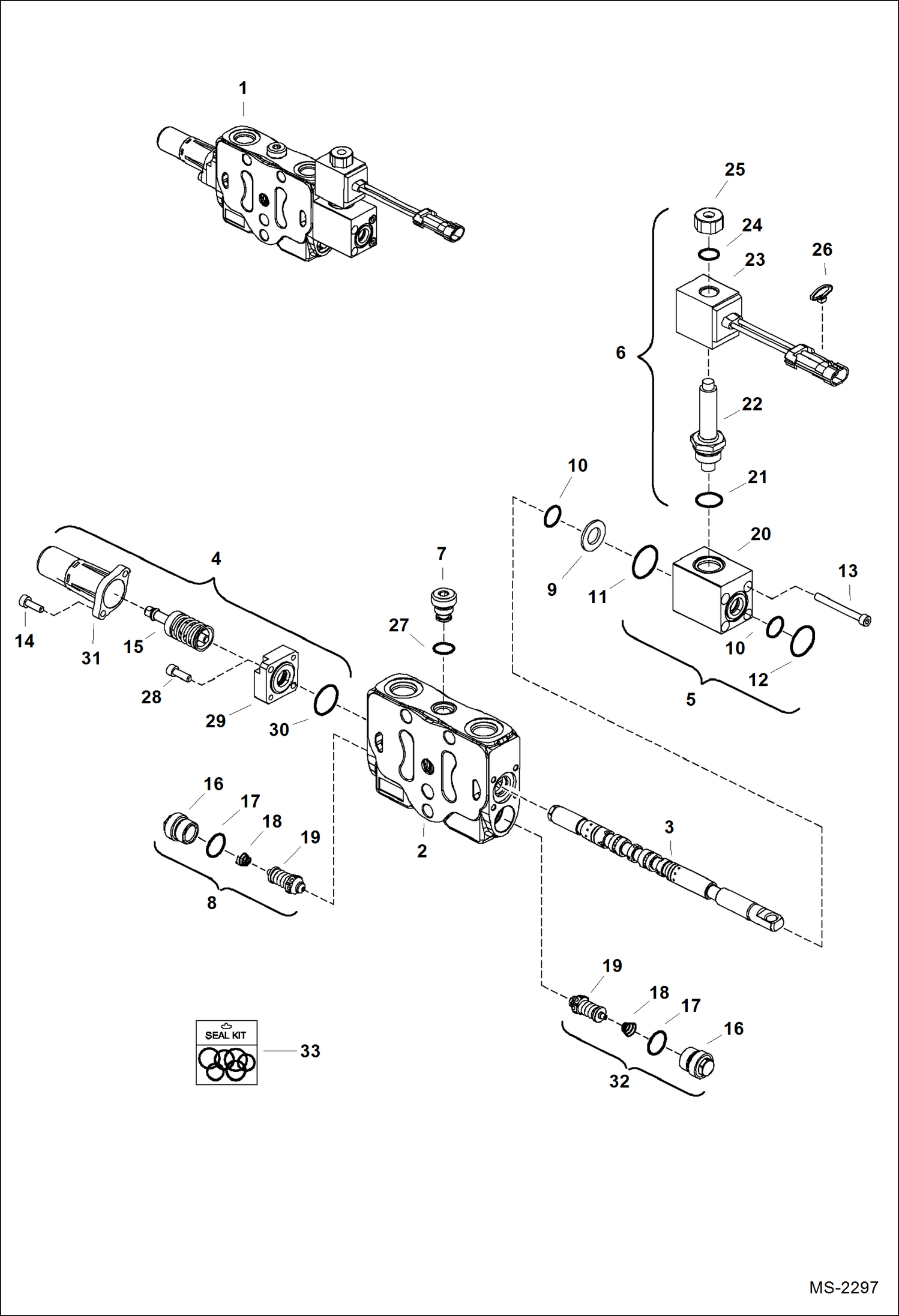

Запчасти Bobcat 5600 VALVE SECTION (Lift) HYDRAULIC SYSTEM

1

6691181

VALVE lift

2

BODY NSS

3

SPOOL NSS

4

6691201

CAP KIT Ref. 14, 15, & 28-31

5

6691197

CAP KIT Ref. 10, 12, 13, & 20-26

6

6691199

SOLENOID W/ Ref. 21, 22, 24 & 25

7

6680092

VALVE, LOCK LOAD W/Ref. 27

8

6685304

VALVE Ref. 16-19 - Was 6686242 - D

9

6680095

WASHER

10

O-RING NSS

11

6679604

O-RING

12

O-RING NSS

13

6682247

BOLT

14

SCREW NSS

15

SPRING NSS

16

6686241

PLUG

17

O-RING NSS

18

SPRING NSS

19

VALVE NSS

20

CAP NSS

21

O-RING NSS

22

STEM NSS

23

6691203

COIL 12v

24

6691186

O-RING

25

6691185

NUT

26

TIE

27

O-RING NSS

28

SCREW NSS

29

CAP NSS

30

O-RING NSS

31

CAP NSS

32

6685304

VALVE Ref. 16-19

33

6691192

SEAL KIT valve section - Ref. 10-12, 17, 21, 27 & 30
