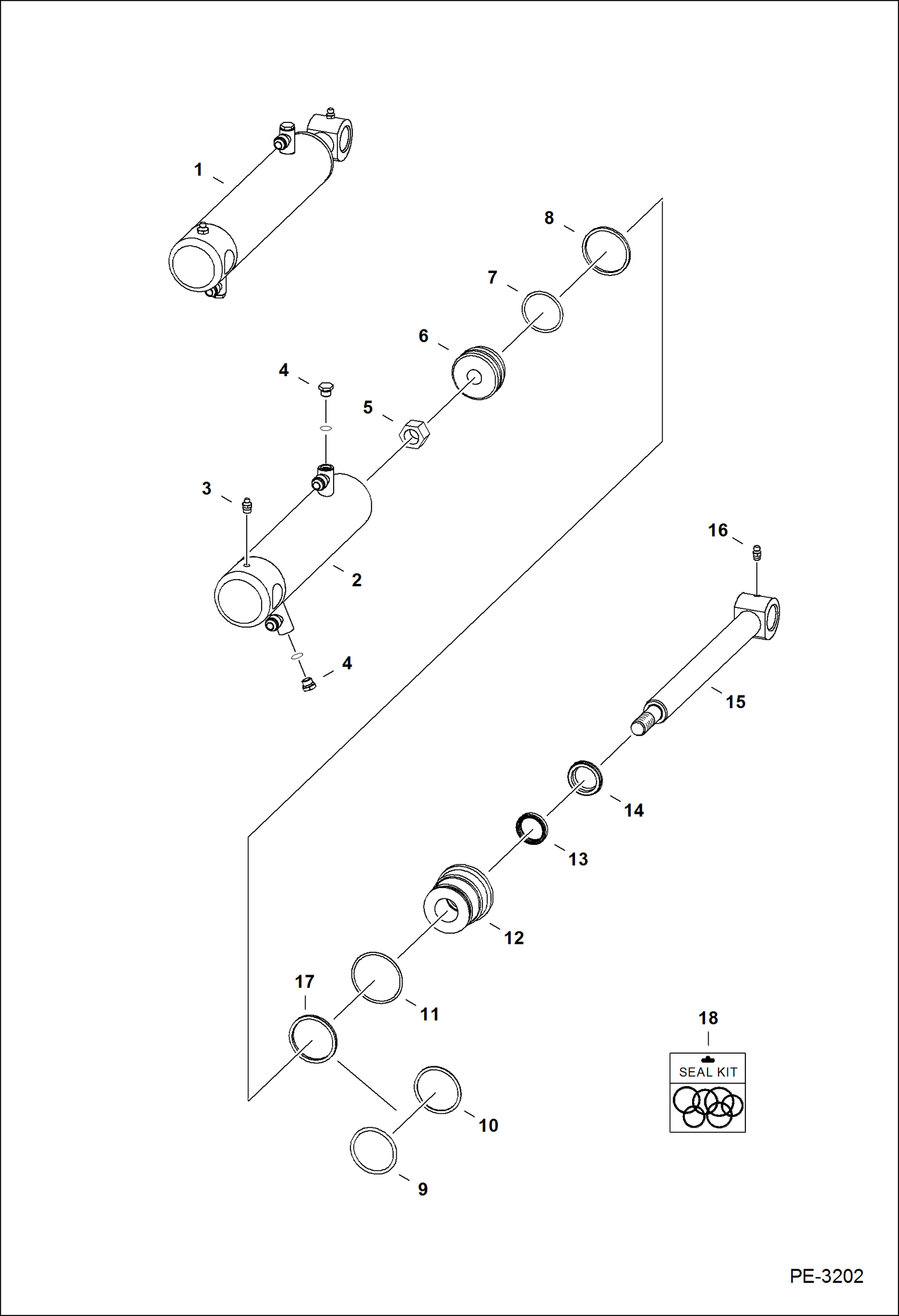

Запчасти Bobcat 5600 BOX CYLINDER HYDRAULIC SYSTEM

1

7136193

CYL ASSY Ref. 2-16

2

7136196

TUBE ASSY W/Ref. 3 & 4

3

10H25

FITTING, GREASE 5

4

6812170

PLUG

5

92D10

NUT

6

6586693

PISTON

7

54K30118

O-RING

8

6516231

SEAL piston

9

54K40124

O-RING

10

73K224

RING

11

82K136

O-RING

12

6538595

HEAD, CYL HYD

13

6667323

SEAL rod

14

6666542

SEAL, WIPER ROD

15

7136194

SHAFT

16

10H35

FITTING, GREASE 10

17

7008781

SEAL, QUAD

18

7137772

SEAL KIT Ref. 5, 7, 8, 11, 13, 14, & 17 - Was 6803474 - A
