Запчасти Bobcat 5600 HYDRAULIC CIRCUITRY (Standard & High Flow Auxiliary) (A0W116220 & Above) HYDRAULIC SYSTEM

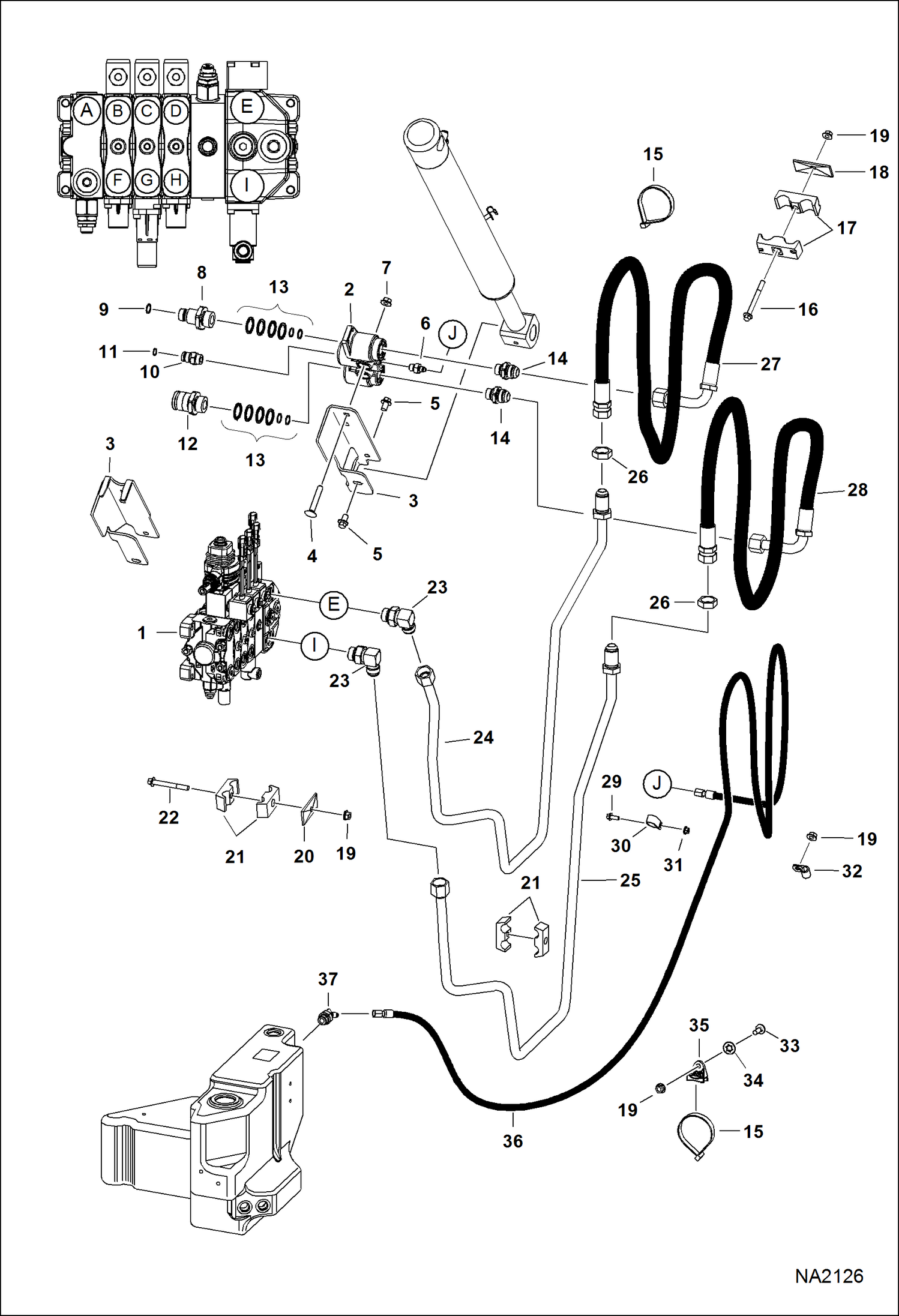

Схема запчастей Bobcat 5600 - HYDRAULIC CIRCUITRY (Standard & High Flow Auxiliary) (A0W116220 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6688854

VALVE CONTROL STD See Illustration WORK VALVE/ MS2292 - standard flow

1

VALVE CONTROL HF See Illustration WORK VALVE/ MS2293 - high flow

2

6678076

BLOCK coupler - Ref. 8,10,12 & (2) of Ref. 14

3

BRACKET NLA - Order 7143527 bracket - Was 7113498 - A

3

7143527

BRACKET

4

21CM1065

BOLT

5

29CM1016

BOLT

6

15KB0406

FTG HYD S CONNECTOR

6

79K6

O RING 10

7

51DM10

NUT

8

6679837

COUPLER

9

6679841

SEAL

10

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

11

6679840

SEAL

12

6680018

COUPLER, KIT female

13

6680020

SEAL KIT (3) O-rings & (3) back-up washers

14

6679836

ADAPTER

14

79K12

O RING 10

15

6624289

STRAP, TIE Was 6685156 - B

16

29CM880

BOLT

17

6679025

CLAMP 2

18

6653493

COVER

19

51DM8

NUT

20

6592507

PLATE for standard flow

20

6653493

COVER for high flow

21

6592506

CLAMP for standard flow

21

6679025

CLAMP 2 for high flow

22

29CM870

BOLT

23

17KB1212

FITTING, HYD ELBOW for standard flow

23

79K12

O RING 10

23

17KB1612

FITTING, HYD ELBOW for high flow

23

79K12

O RING 10

24

7126072

TUBELINE AUX STD for standard flow

24

7116046

TUBELINE AUX HF for high flow

25

7126073

TUBELINE AUX STD for standard flow

25

7116047

TUBELINE AUX HF for high flow

26

86F8

NUT 5

27

7116781

HOSE ASSY for standard flow

27

7115278

HOSE ASSY for high flow

28

7116782

HOSE ASSY for standard flow

28

7115279

HOSE ASSY for high flow

29

29CM616

BOLT

30

31H25

HOSE CLAMP

31

51DM6

NUT

32

30H26

CLIP

33

28CM820

BOLT

34

6675859

RETAINER

35

6678818

MOUNT

36

7165624

HOSE

37

18KB0408

FITTING, HYD ELBOW

37

79K8

O RING 10

Выбрано товаров: 51
