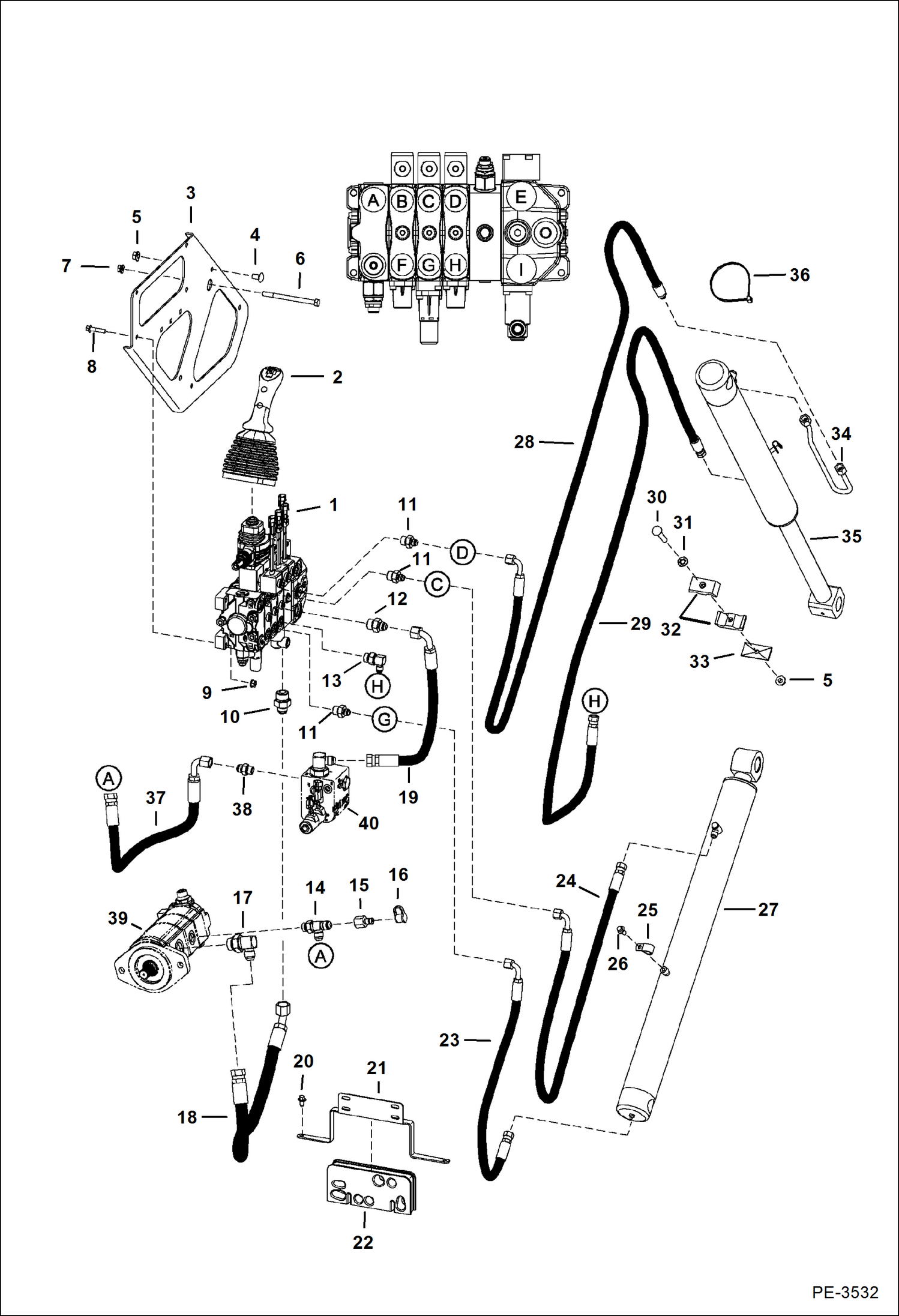

Запчасти Bobcat 5600 HYDRAULIC CIRCUITRY (Work W/Power Bob-Tach) (A0W111616 & Above) HYDRAULIC SYSTEM

1

VALVE CONTROL HF See Illustration WORK VALVE/ MS2293 - high flow

2

6689771

HANDLE ASSY

3

7117129

MOUNT

4

29CM1020

BOLT

5

51DM10

NUT

6

17C680

BOLT

7

53D6

NUT

8

29CM835

BOLT

9

51DM8

NUT

10

15KB1012

FITTING, HYD CONNECTOR

10

79K12

O RING 10

11

15KB0608

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

15KB0810

FITTING, HYD CONNECTOR

12

79K10

O RING 10

13

17KB0608

FITTING, HYD ELBOW

13

79K8

O RING 10

14

21KB0808

FTG HYD STRAIGHT TEE

14

79K8

O RING 10

15

6646635

COUPLER

16

6630367

CAP

17

17KB1012

FITTING, HYD ELBOW

17

79K12

O RING 10

18

7115010

HOSE ASSY

19

7152807

HOSE ASSY

20

26GM8016

SCREW

21

7134573

BRACKET

22

7134572

GROMMET

23

6708559

HOSE

24

6727059

HOSE

25

30H37

CLAMP

26

29CM816

SCREW

27

CYL ASSY See Illustration LIFT CYLINDER/ PE3201 - lift

28

7114806

HOSE ASSY

29

7114805

HOSE ASSY

30

29CM1060

SCREW

31

6674264

RETAINER NUT

32

6592506

CLAMP

33

6592507

PLATE

34

6813707

TUBELINE

35

CYL ASSY See Illustration TILT CYLINDER/ PE2696 - tilt

36

6624289

STRAP, TIE

37

7152808

HOSE ASSY

38

7145189

FITTING

38

79K8

O RING 10

39

GEAR PUMP See Illustration TRIPLE GEAR PUMP/ MS2307
