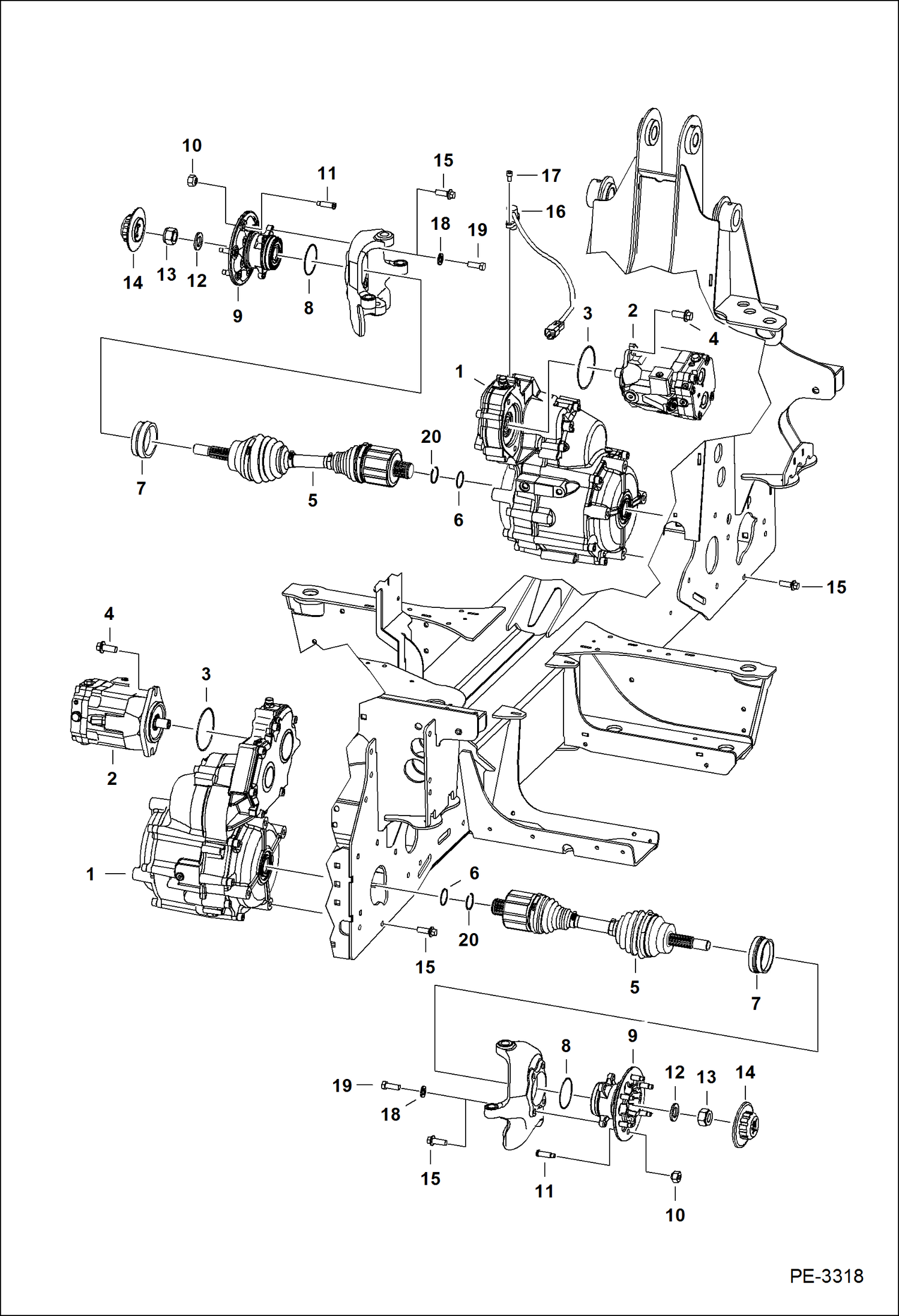

Запчасти Bobcat 5600 AXLE (Front & Rear) DRIVE TRAIN

1

6690582

TRANSAXLE See Illustration TRANSAXLE/ B23577 - front & rear

2

6689772

MOTOR See Illustration DRIVE MOTOR/ MS2318 - drive

3

25K30400

O RING 10

4

29CM1435

SCREW

5

6688829

SHAFT axle

5

6697394

BOOT KIT wheel side service - includes boot, grease, C-clip & (2) clamps

5

6697395

BOOT KIT gear side service - includes boot, grease, C-clip & (2) clamps

6

6690111

SEAL

7

6692397

SEAL hub - Was 6689564 - B,D

8

6689564

ORING Was 6692397 - B,D

9

6688676

BEARING hub assy

10

7126537

NUT

11

6692773

STUD, WHEEL

12

18EM2448

WASHER

13

7120815

NUT

14

7121222

HUBCAP

15

29CM1235

BOLT

16

6684443

SENSOR

17

7102184

SCREW

18

7155466

WASHER, PLAIN

19

1CM1240

BOLT
