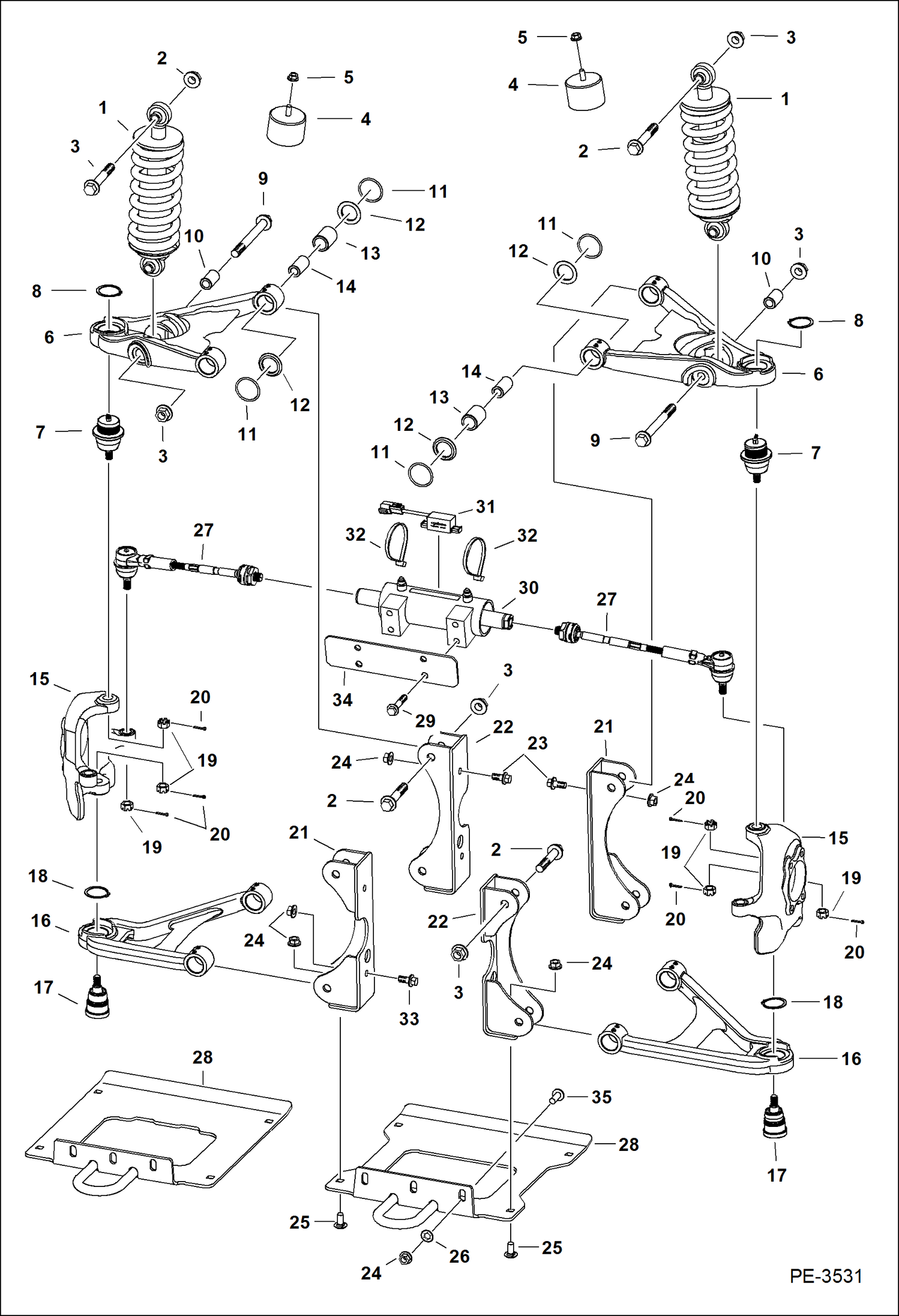

Запчасти Bobcat 5600 SUSPENSION (Rear) DRIVE TRAIN

1

6688831

SPRING coil assy

2

29CM1680

BOLT

3

51DM16

NUT

4

6692924

MOUNT ISOLATOR Was 6680152 - A

5

51DM10

NUT

6

7114626

ARM upper control

7

6690260

BALL JOINT upper

7

11H25

FITTING10

8

21J28

SNAP RING

9

29CM16150

BOLT

10

7126638

BUSHING

11

6690110

SEAL

12

6691116

WASHER

13

6691117

BUSHING

14

6690109

BUSHING

15

7114624

SPINDLE

16

7114628

ARM lower control

17

6690261

BALL JOINT lower

18

21J26

SNAP RING

19

7128960

NUT

20

1F412

PIN

21

7114631

MOUNT control arm

22

7114630

MOUNT control arm

23

29CM1225

BOLT

24

51DM12

NUT

25

28CM1225

BOLT

26

6690637

RETAINER

27

7001000

ROD, TIE ASSY 16 mm tie rod - Was 6688830 - A

27

7020387

BOOT, RUBBER outer

27

BOOT NLA - inner

28

7126013

COVER rear differential

29

59CM1225

SCREW

30

6688675

CYLINDER, STEERING See Illustration STEERING CYLINDER/ MS2311

31

6689591

SENSOR

32

42HS48

CLAMP

33

29CM1235

BOLT

34

7164278

PLATE, CYL STEERING service part only

35

28CM1230

BOLT
