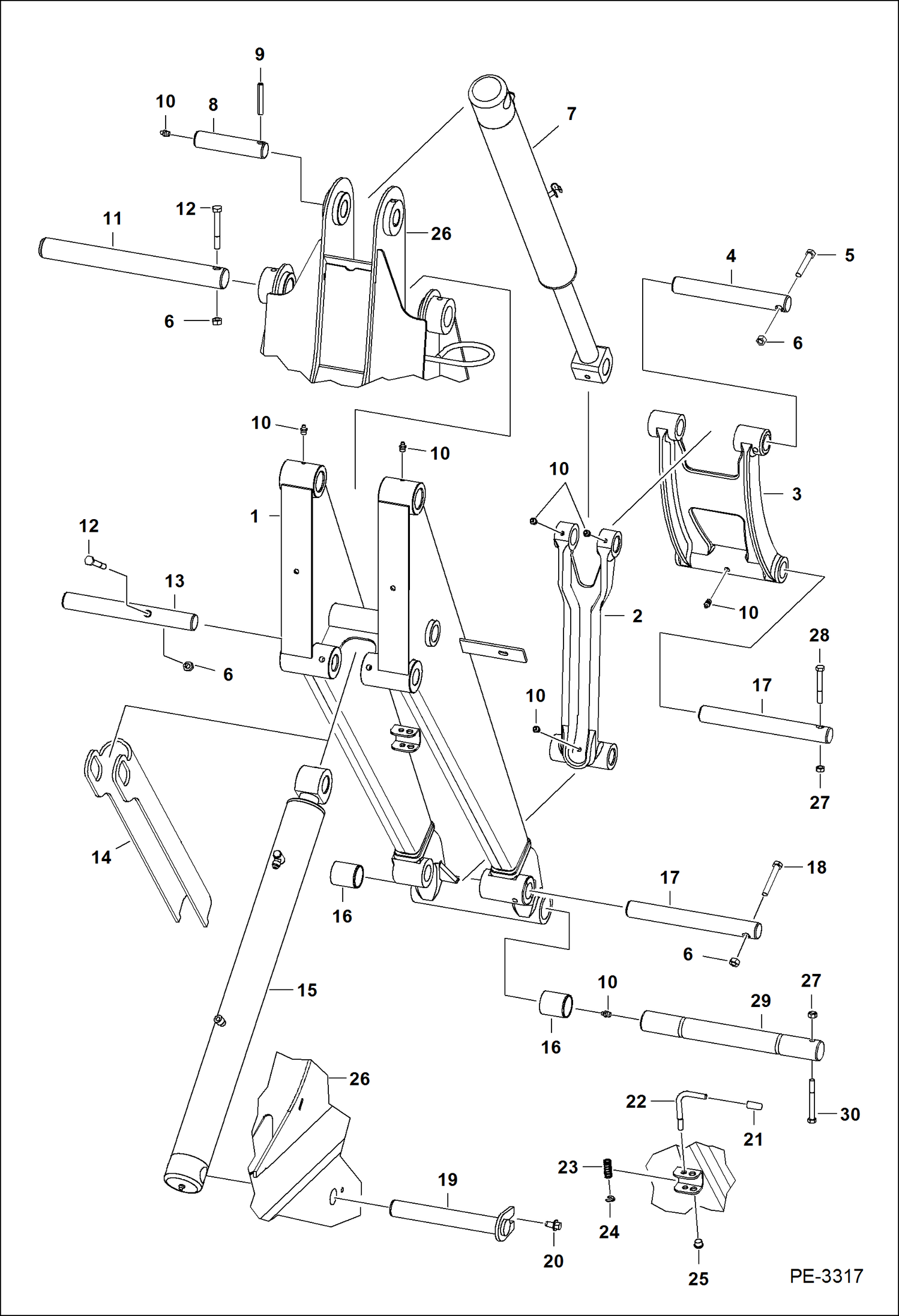

Запчасти Bobcat 5600 LIFT ARM MAIN FRAME

1

7105598

BOOM

2

7157871

LINK, FRAME BOOM Was 7105560 - A

3

7105145

LINK BUCKET

4

6813410

PIN

5

1CM1060

BOLT

6

53DM10

NUT

7

7106634

CYL ASSY See Illustration TILT CYLINDER/ PE2696 - tilt

8

7117241

PIN

9

14J3740

PIN

10

10H25

FITTING, GREASE 5

11

7116236

PIN

12

1CM1080

BOLT

13

7120827

PIN

14

7117462

STOP safety

15

7120076

CYL ASSY See Illustration LIFT CYLINDER/ PE3201 - lift

16

6815277

BUSHING Was 6803207 - A

17

6813422

PIN

18

1CM1070

BOLT

19

7117248

PIN

20

26GM10020

BOLT

21

6681652

CAP

22

7156194

PIN, LATCH Was 6814422 - A

23

6610082

SPRING

24

6681651

RING

25

6597572

BUMPER Was 6808841 - B

26

MAIN FRAME See Illustration MAIN FRAME/ PE3306

27

85D6

NUT, 5

28

17C644

BOLT

29

6813421

PIN

30

17C652

BOLT
