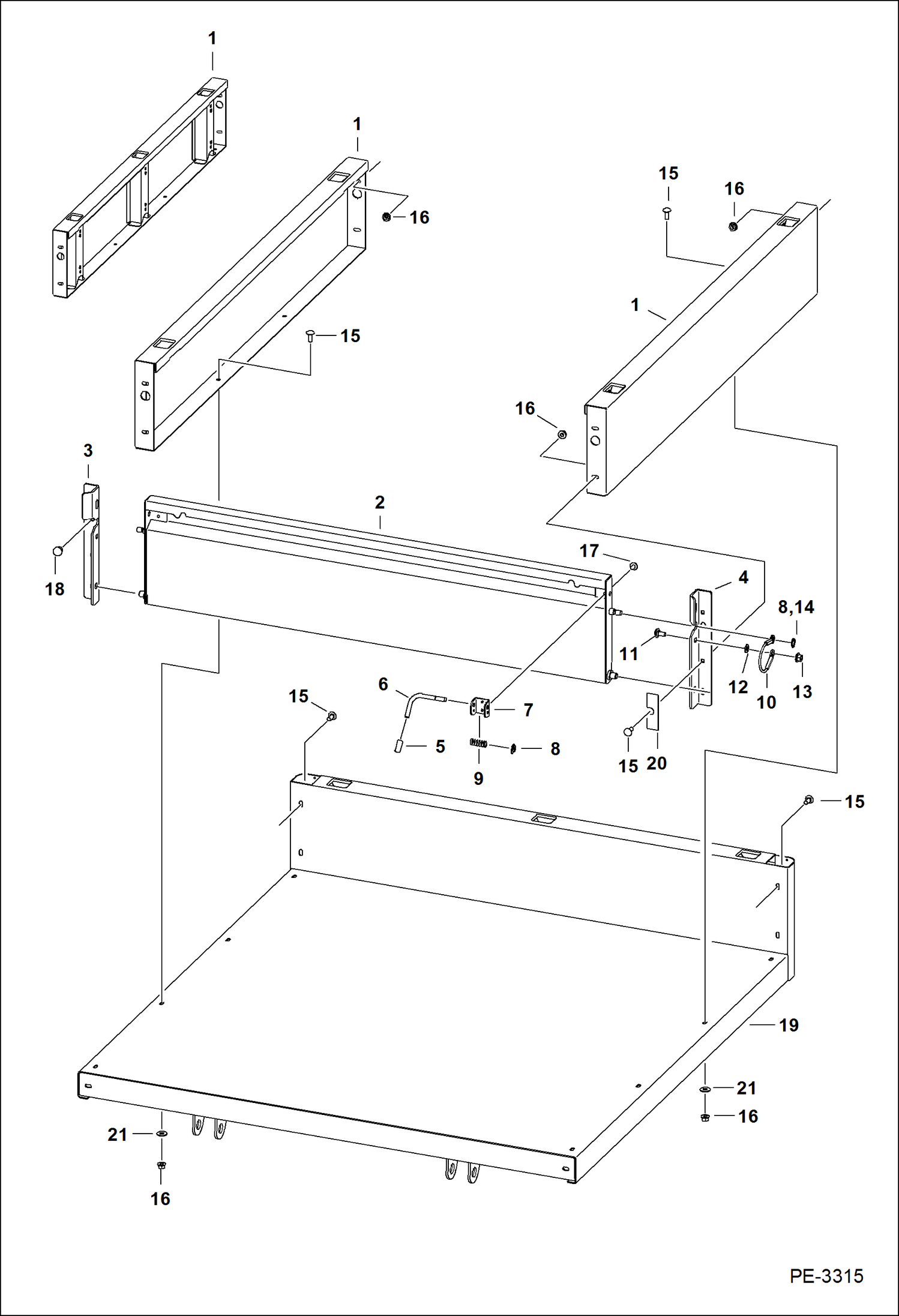

Запчасти Bobcat 5600 BOX ASSEMBLY (Side & Tailgate) MAIN FRAME

1

SIDE- THREE STAKE HOLES NLA - three stake pockets - Order 7148185 side - Was 7116398 - A

1

SIDE-TWO STAKE HOLES See BTI406 NLA - Was 7148185 - A

1

7190020

SIDE, BOX W/O stake pockets

2

TAILGATE NLA - Order 7158605 tailgate - Also Order Ref. 6, 7 & 8 (Ref. 8 is to replace Ref. 14) - Was 7116437 - A

2

TAILGATE, TOOLCAT NLA - W/ 11,9 mm (.47'') dia pin ring groove - Order 7158605 tailgate & (2) of Ref. 8 to replace Ref. 14 - Was 7158605 - D

2

7158605

TAILGATE, TOOLCAT W/ 8,9 mm (.33'') dia pin ring groove

3

6813774

SUPPORT L.H.

4

6813773

SUPPORT R.H.

5

6681652

CAP

6

7156194

PIN, LATCH Was 6814422 - A

7

7151652

BRACKET, LATCH Was 7102914 - A

8

6681651

RING 7,9 mm (.312'') ID - Use W/Ref. 2 (NLA/7158605 tailgate)

8

6681651

RING 7,9 mm (.312'') ID - Use W/Ref. 2 (7158605 tailgate)

9

6610082

SPRING

10

6681649

CABLE

11

28CM1020

BOLT 10 X 20 mm

11

28CM820

BOLT 8 x 20 mm

12

15EM100

WASHER 10 mm

12

15EM80

WASHER 8 mm

13

43DM10

NUT

13

51DM8

NUT

14

22J8

SNAP RING EXTERNAL 11,7 mm (.46'') ID - Use W/Ref. 2 (NLA/7158605 tailgate)

15

28CM820

BOLT

16

51DM8

NUT

17

6589675

SCREW

18

6597572

BUMPER

19

BASE See Illustration BOX ASSEMBLY/ PE3314

20

7106297

DECAL

21

17EM80

WASHER optional
