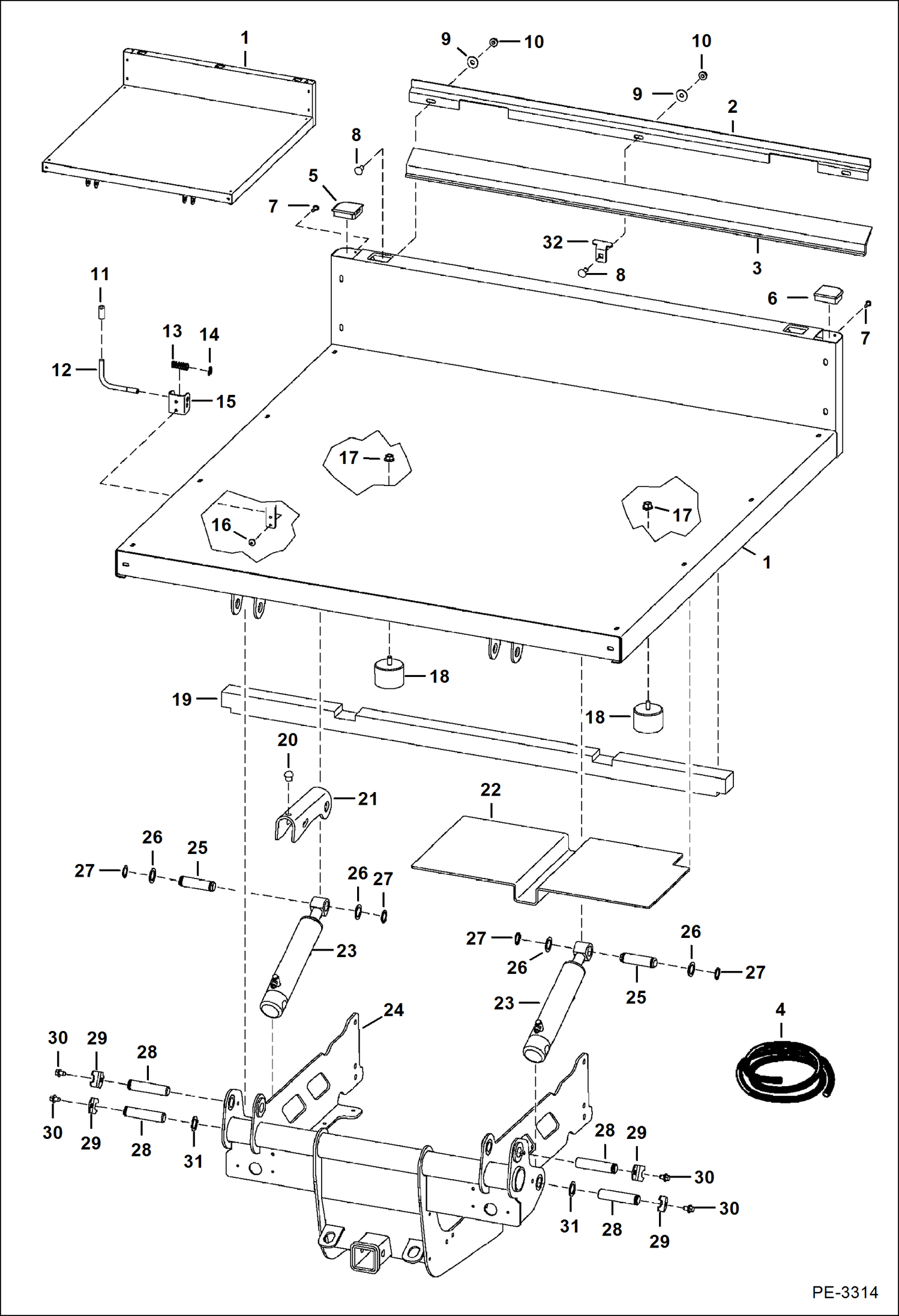

Запчасти Bobcat 5600 BOX ASSEMBLY (Base) MAIN FRAME

1

BASE-THREE STAKE HOLES NLA - Order 7152130 base - Was 7111115 - A

1

7152130

BASE-TWO STAKE HOLES Also Order Ref. 2

2

BRACKET NLA - wiper - Use W/Ref. 1 (NLA/7111115 base) - Order 7116400 bracket - Was 7152128 - A

2

BRACKET NLA- wiper - Use W/Ref. 1 (7152130 base) - Order 7116400 bracket & Ref. 32 - Was 7152128 - A

2

7116400

BRACKET

3

WIPER NLA - 50.75'' (1289mm) long - Order Ref. 4

4

6685029

SEAL wiper - bulk - sold per foot

5

6813427

CAP L.H box

6

6813425

CAP R.H. box

7

6706517

SCREW

8

28CM820

BOLT

9

17EM80

WASHER

10

51DM8

NUT

11

6681652

CAP

12

7156194

PIN, LATCH Was 6814422 - A

13

6610082

SPRING

14

6681651

RING

15

7151652

BRACKET, LATCH Was 7102914 - A

16

6589675

SCREW

17

51DM10

NUT

18

6692924

MOUNT ISOLATOR Was 6680152 - A

19

7134815

INSULATION

20

6597572

BUMPER

21

7110907

STOP safety

22

7189949

SHIELD, HEAT Was 7126522 - A

23

CYL ASSY See Illustration BOX CYLINDER/ PE3202 - box

24

FRAME See Illustration MAIN FRAME/ PE3306 - rear

25

7121780

PIN

26

6573567

WASHER

27

22J16

SNAP RING

28

6731749

PIN

29

6563850

RETAINER

30

26GM10016

SCREW

31

1EM240

WASHER

32

7155783

BRACKET, ANGLE
