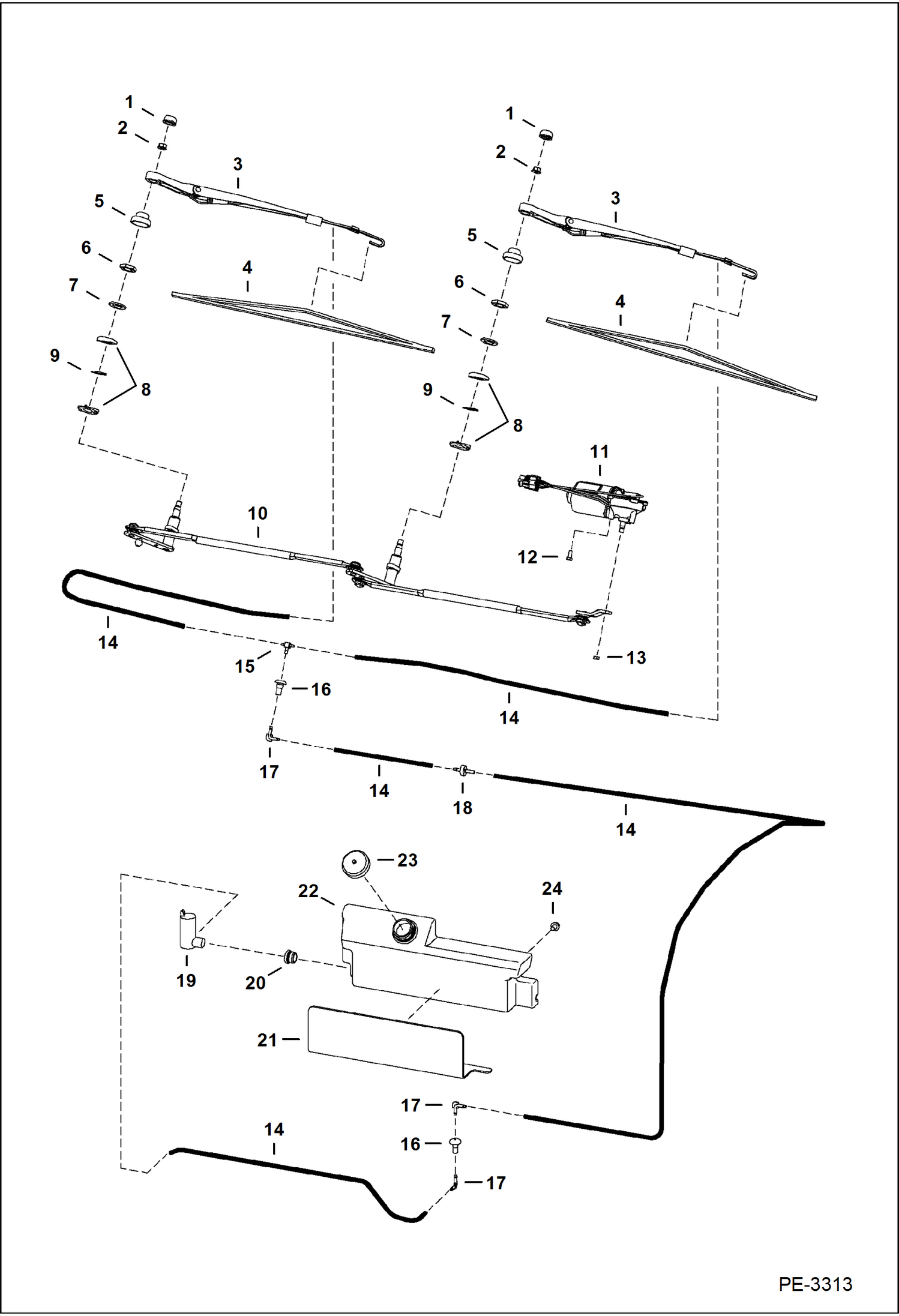

Запчасти Bobcat 5600 WIPER ASSEMBLY MAIN FRAME

1

6681912

COVER nut

2

6681910

NUT

3

6681574

WIPER ARM ASSY

3

7020353

NOZZLE, WIPER Was 6678920 - A

4

6681893

WIPER BLADE

5

6681906

SHIELD

6

6681905

NUT

7

6816937

WASHER

8

6682463

SPACER

9

6816938

WASHER

10

6681872

LINKAGE assy

11

6688045

MOTOR wiper

12

6681911

SCREW

13

6681909

NUT

14

6681913

HOSE 3658 mm (144'') long - .187'' ID - bulk - cut to length

14

7017856

HOSE, RUBBER 114,3 mm (4.5'') long - .125'' ID

15

6682464

TEE

16

6676499

GROMMET

17

6676917

ELBOW

18

6682462

VALVE check

19

6664554

PUMP, WIPER WASHER

20

6666766

GROMMET

21

7135739

INSULATION

22

7121292

TANK

23

6674993

CAP

24

29CM812

BOLT
