Запчасти Bobcat 5600 OPERATOR CONTROLS MAIN FRAME

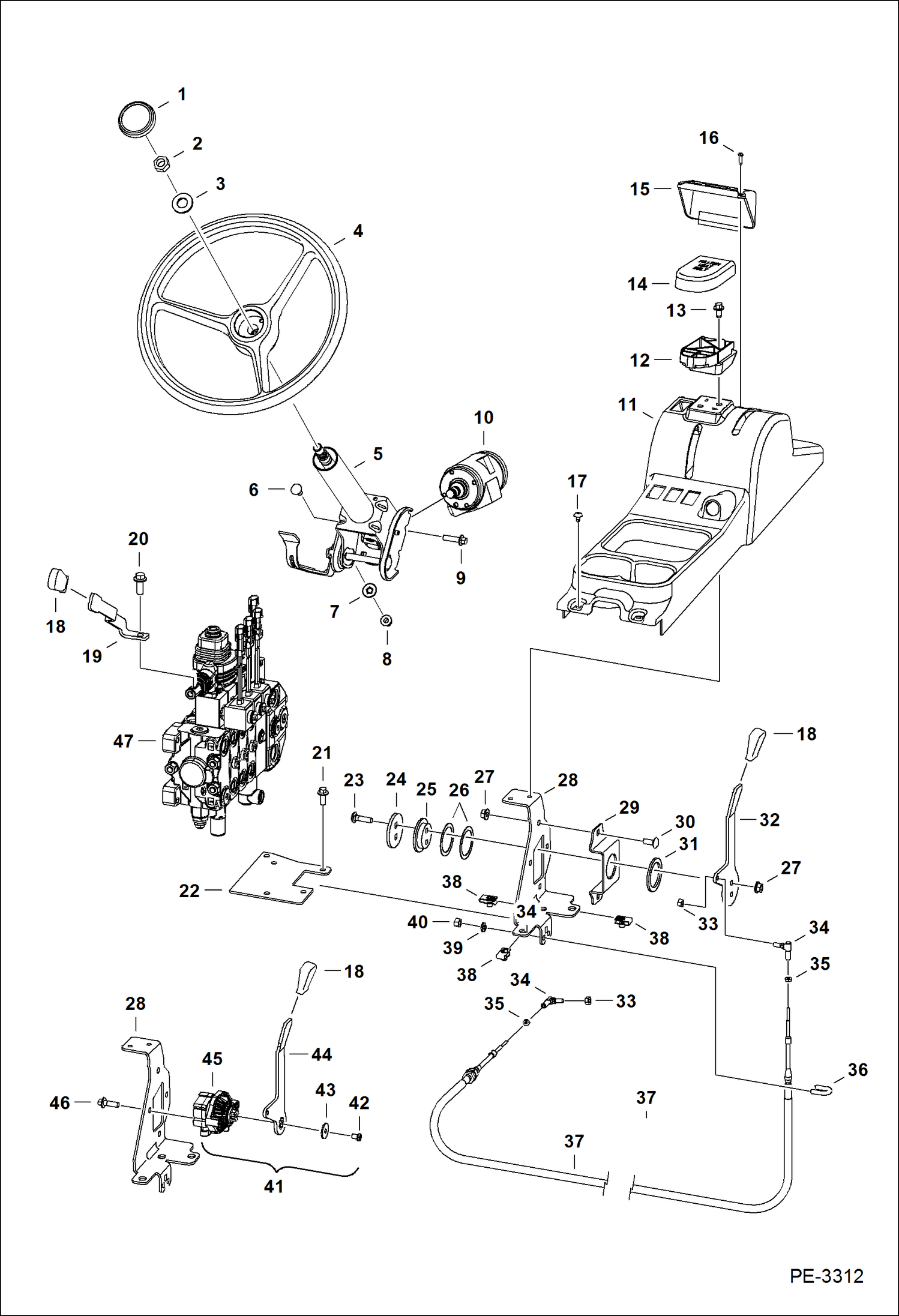

Схема запчастей Bobcat 5600 - OPERATOR CONTROLS MAIN FRAME

Артикул

Название

Примечание

Количество

1

6680985

COVER

2

7106229

NUT 14MM

3

25E25

WASHER 10

4

6680154

STEERING WHEEL

5

COLUMN, STEERING NLA - W/spring - Order 7209446 steering column - Was 6691152 - A

5

7209446

COLUMN, STEERING

6

29CM820

SCREW Was 28CM820 - D

6

29CM825

BOLT

7

6675859

RETAINER

8

51DM8

NUT

9

60CM830

BOLT

10

PUMP See Illustration HYDROSTATIC CIRCUITRY/ PE3293 - power steering

11

7124554

CONSOLE center

12

6807982

MOUNT armrest

13

26GM8016

SCREW

14

6807983

COVER armrest

15

7129915

COVER switch

16

58G812

SCREW

17

6589675

SCREW

18

6564452

GRIP lever

19

7185026

LEVER box - Was 7125103 - A

20

29CM1025

BOLT

21

29CM820

SCREW

22

7222906

PLATE Was 7133177 - A

23

28CM830

BOLT

24

6812686

WASHER

25

6567963

SPACER

26

6630945

WASHER

27

51DM8

NUT

28

7133175

BRACKET control

29

7129981

BRACKET throttle

30

28CM820

BOLT

31

6567962

WASHER

32

7129982

LEVER throttle

33

62D4

NUT

34

6644965

BALL JOINT

35

14D10

NUT

36

6592766

U-BOLT

37

6675668

CABLE, THROTTLE

38

6676169

NUT

39

4E5

WASHER

40

61D5

NUT

41

7134477

THROTTLE ASMBLY Ref. 42-45

42

6693038

SCREW

43

6693036

WASHER

44

6693200

LEVER Was 7124866 - A

45

SENSOR, THROTTLE NSS - Order Ref. 41

46

29CM825

BOLT

47

VALVE, WORK See Illustration WORK VALVE/ MS2293 See Illustration WORK VALVE/ MS2292

Выбрано товаров: 49
