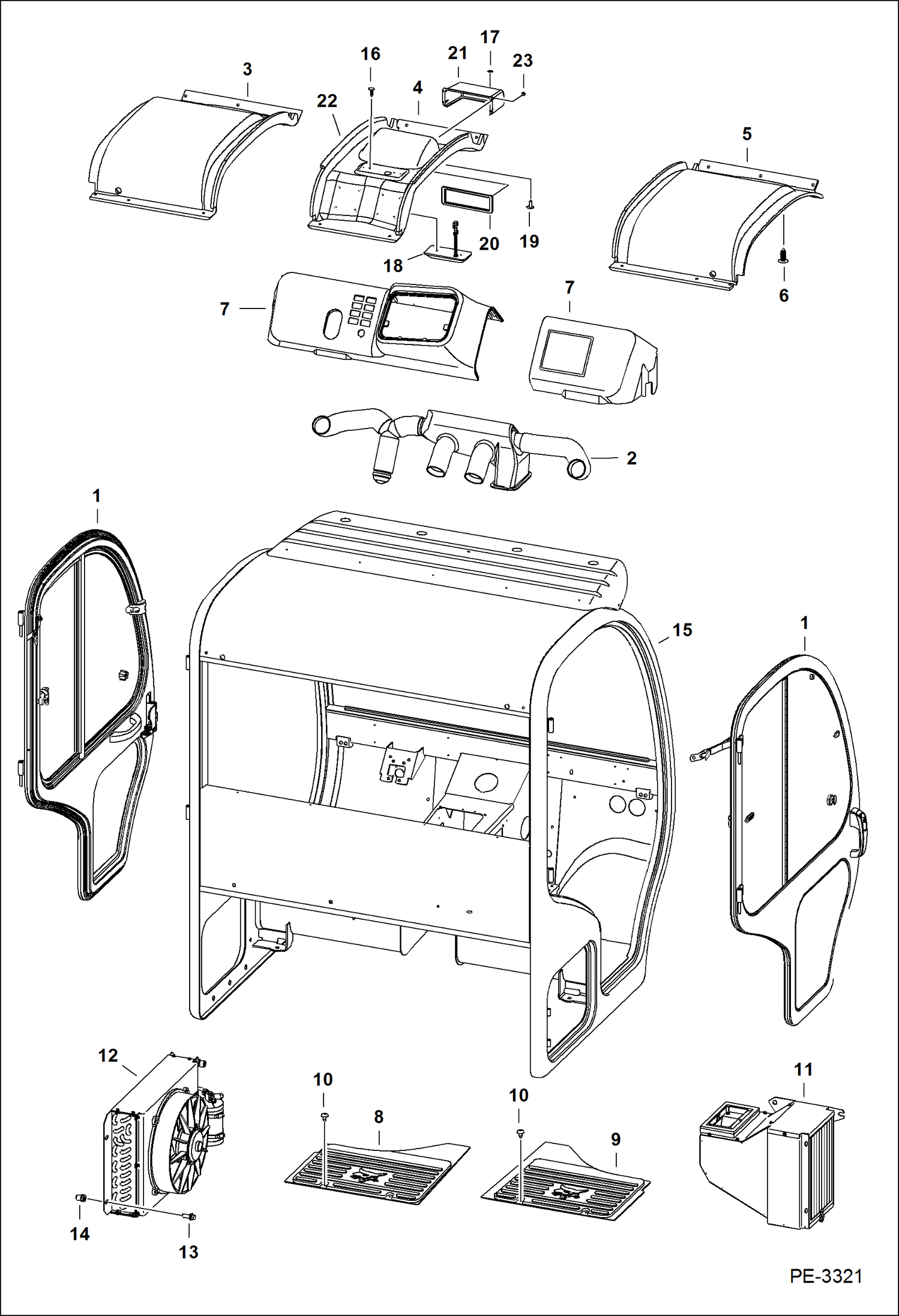

Запчасти Bobcat 5600 OPERATOR CAB (Enclosure) MAIN FRAME

1

DOOR ASSY See Illustration CAB DOORS/ PE1751

2

HVAC DUCT See Illustration HEATER & A/C/ PE3323

3

7121376

HEADLINER L.H.

4

HEADLINER, CENTER NLA - Order components - Ref. 16-23 - Was 6816602 - A

5

7121375

HEADLINER R.H.

6

6683172

CLIP plastic tree

7

DASH ASSY See Illustration HEATER & A/C/ PE3323

8

7104922

FLOORMAT

9

7104923

FLOORMAT

10

6589675

SCREW

11

HVAC ASSY See Illustration HEATER & A/C/ PE3324

12

CONDENSOR ASSY See Illustration HEATER & A/C/ PE3325

13

29CM820

SCREW

14

6813676

INSERT

15

CAB See Illustration OPERATOR CAB/ PE3308

16

6664221

RETAINER

17

6675212

RETAINER

18

6680326

LIGHT

19

6683172

CLIP

20

7100395

PANEL HEADLINER

21

7100396

ENCL HEADLINER

22

7100394

INSULATION HEADLINER

23

58G806

SCREW
