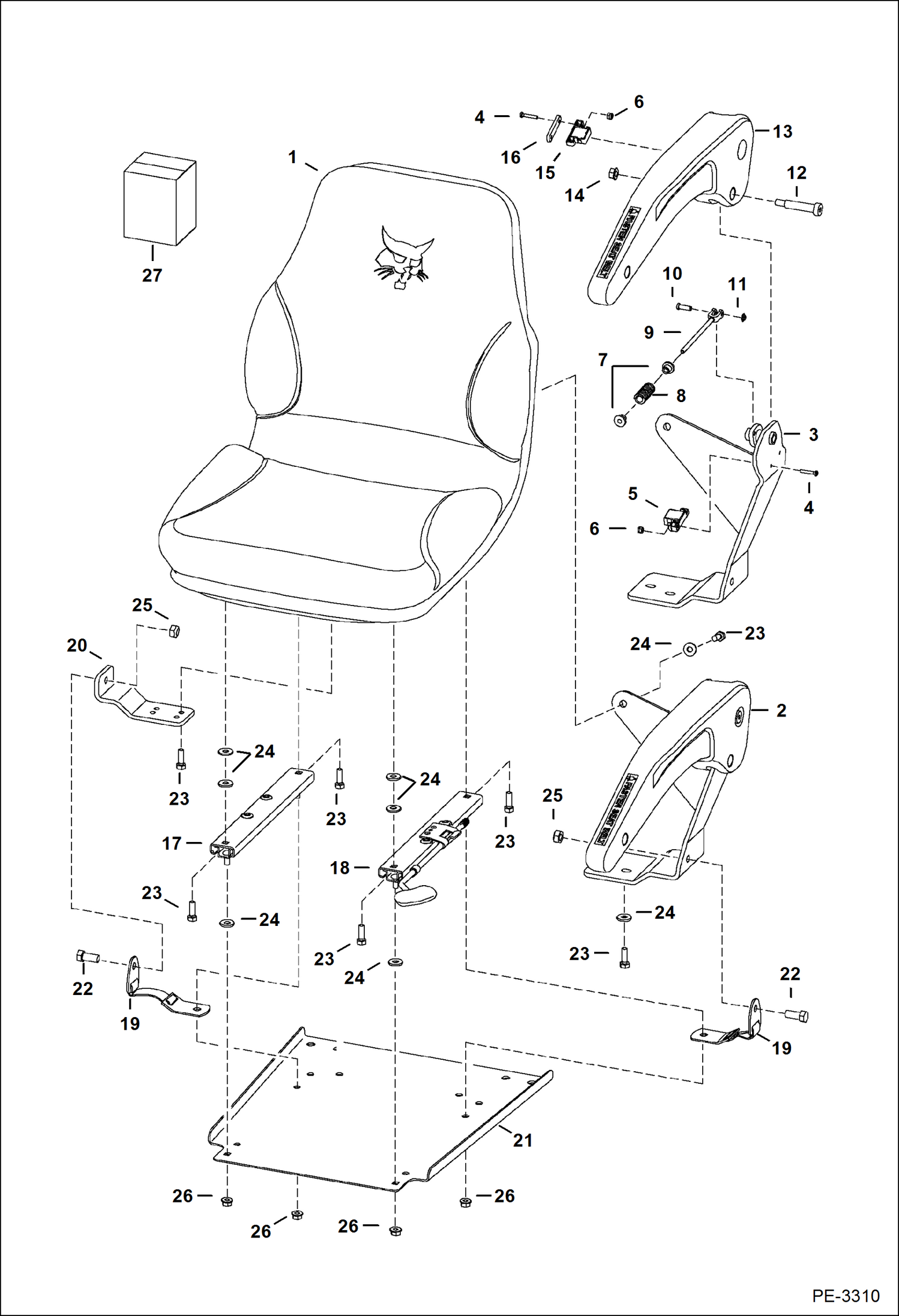

Запчасти Bobcat 5600 STATIC SEAT (Driver) MAIN FRAME

1

6684442

SEAT

2

7121364

ARM REST ASSY Ref. 3-16

3

BRACKET NLA - armrest - Order Ref. 2

4

87G816

BOLT

5

6680427

SENSOR

6

50D8

NUT

7

BUSHING NLA - Order Ref. 2 - Was 6817738 - A

8

6817736

SPRING

9

YOKE NLA - armrest - Order Ref. 2

10

4F4051

PIN

11

PIN NLA - Order Ref. 2 - Was 6817963 - A

12

38C832

BOLT

13

ARMREST NLA - Order Ref. 2

14

97D6

NUT 10

15

6680428

SENSOR

16

6817959

SPACER

17

SLIDE NLA - slave - Order Ref. 27 - Was 6690643 - A

18

SLIDE NLA - adjustment - Order Ref. 27 - Was 6689680 - A

19

6675310

KIT tether belt - Ref. 9, 13 & 14 - Was 6685224 - D

20

7121366

BRACKET seat belt

21

7116466

PLATE mounting

22

18C716

BOLT

23

1CM825

BOLT

24

25E16

WSHR

25

86D7

NUT

26

51DM8

NUT

27

6692546

SLIDE KIT Ref. 17 & 18
