Запчасти Bobcat 5600 OPERATOR CAB (Seats) MAIN FRAME

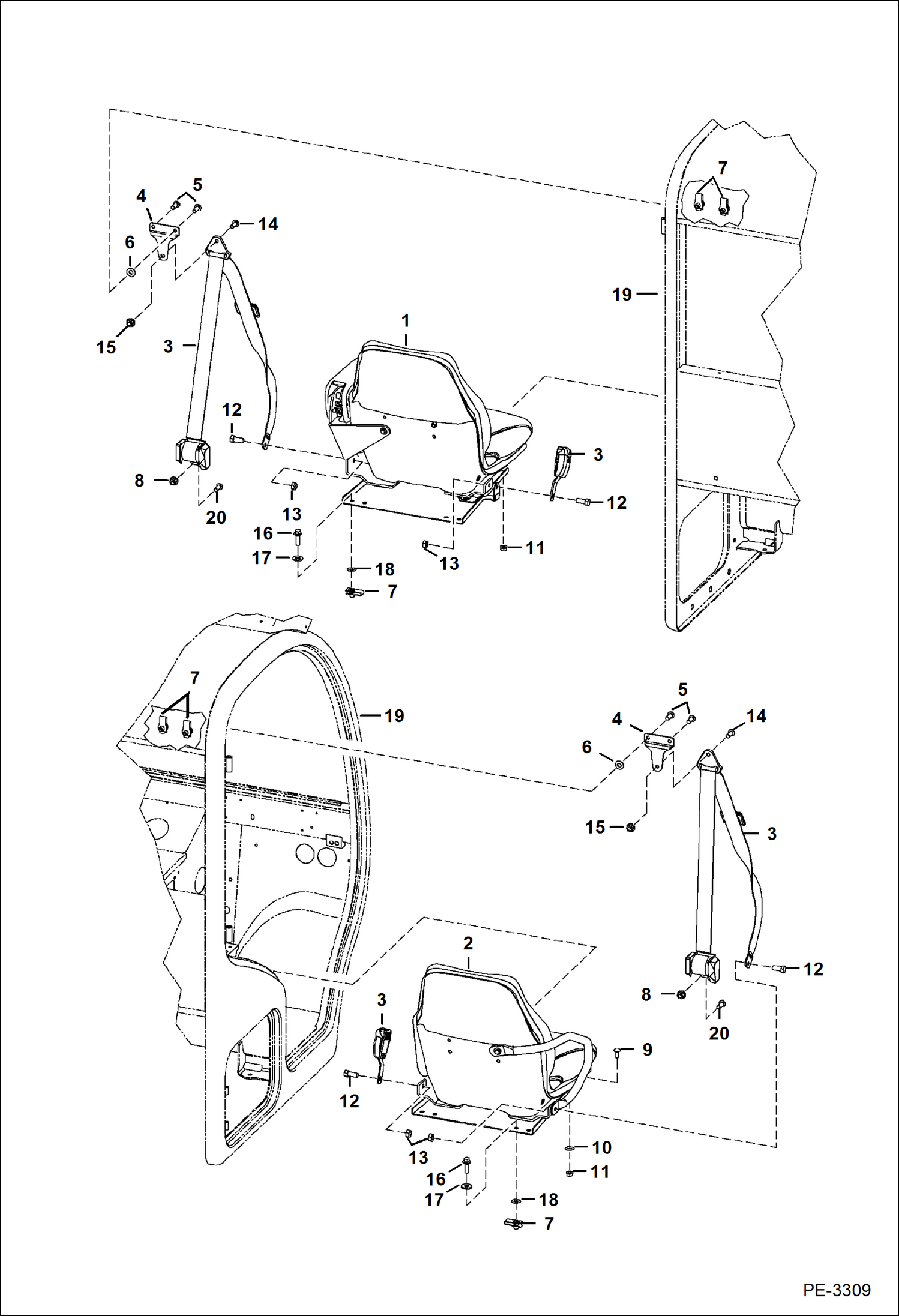

Схема запчастей Bobcat 5600 - OPERATOR CAB (Seats) MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT ASSY See Illustration STATIC SEAT/ PE3310 - static driver

2

SEAT ASSY See Illustration STATIC SEAT/ PE3311 - static passanger

3

6685039

SEAT BELT W/Ref. 13 & 14

4

7101174

BRACKET

5

6817769

BOLT

6

6557831

WASHER

7

6675722

NUT

8

51DM10

NUT

9

28CM820

BOLT

10

6675859

RETAINER

11

51DM8

NUT

12

18C716

BOLT

13

86D7

NUT

14

BOLT NSS - Shoulder - Order Ref. 3

15

LOCKNUT NSS - Order Ref. 3

16

29CM1030

BOLT

17

27E6

WASHER 5

18

6674264

RETAINER NUT

19

CAB, OPERATOR See Illustration OPERATOR CAB/ PE3308

Выбрано товаров: 19
