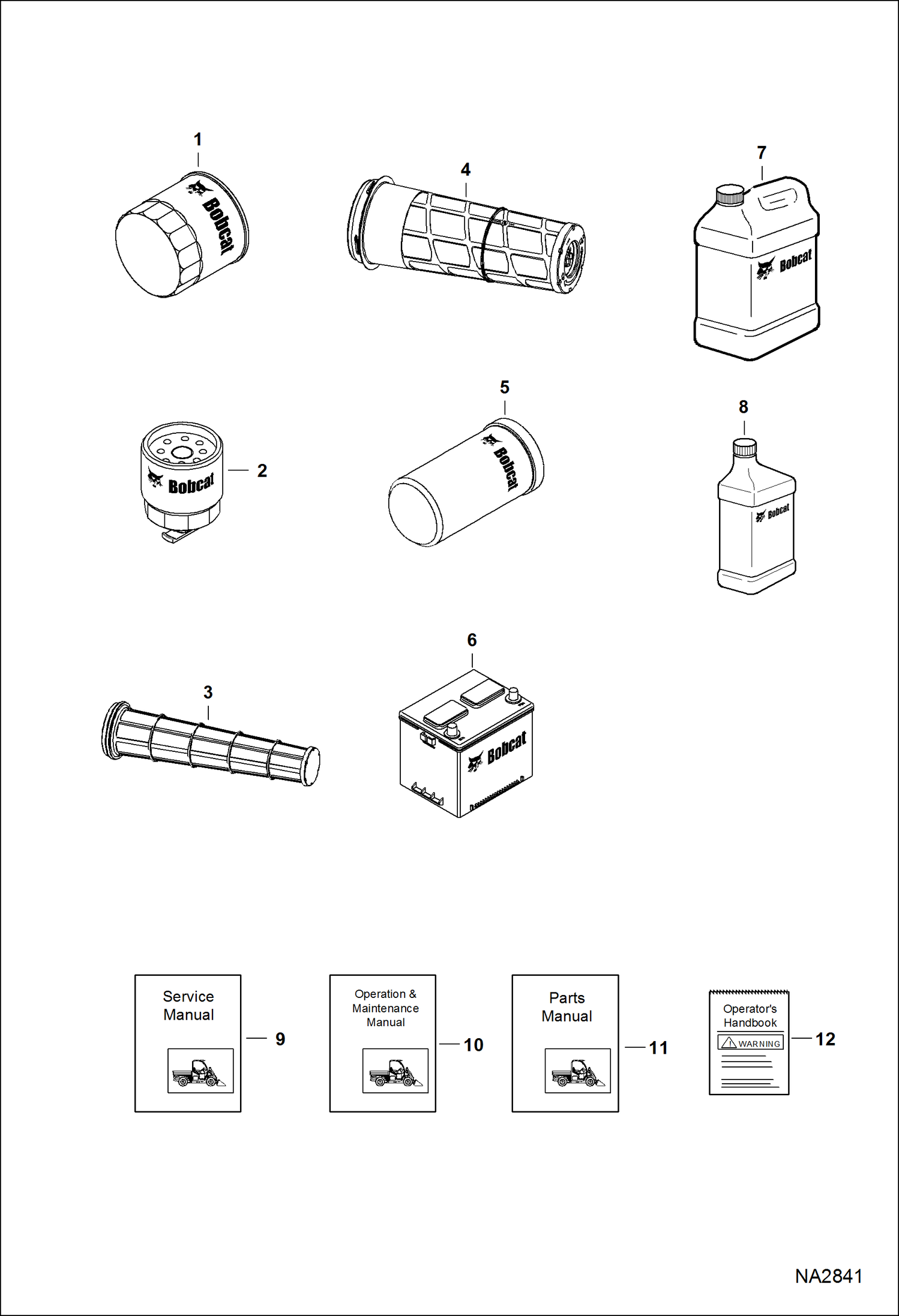

Запчасти Bobcat 5600 MAINTENANCE ITEMS MAINTENANCE ITEMS

1

6675517

FILTER, OIL ENG 12 See Illustration ENGINE & ATTACHING PARTS/ PE3303

2

6667352

FILTER, FUEL W/SEPARATOR 12

3

6983022

FILTER, AIR INNER See Illustration AIR CLEANER/ MS2394

4

6983021

FILTER, AIR OUTER See Illustration AIR CLEANER/ MS2394

5

6668819

FILTER, OIL HYD See Illustration HYDRAULIC CIRCUITRY/ PE3286 hydrostatic - 10 micron - 9.5'' (241,3 mm) long

5

6516722

FILTER See Illustration HYDRAULIC CIRCUITRY/ PE3286 HYDRAULIC

6

6674687

BATTERY, DRY 600 AMP See Illustration ENGINE ELECTRICAL/ PE3305

6

6665427

BATTERY, DRY 950 AMP See Illustration ENGINE ELECTRICAL/ PE3305

7

6903117

FLUID, OIL HYD 2.5 GAL 2

7

6903118

FLUID, OIL HYD 5 GAL

7

6903119

FLUID, OIL HYD 55 GAL DRUM

8

7023076

OIL, 10W30 QT 12 Was 6903107 - A

8

7023077

OIL, 10W30 GAL 6 Was 6903108 - A

8

7023078

OIL, 10W30 2.5 GAL 2 Was 6903112 - A

8

7023080

OIL, 15W40 QT 12 Was 6903105 - A

8

7023081

OIL, 15W40 GAL 6 Was 6903106 - A

8

7023082

OIL, 15W40 2.5 GAL 2 Was 6903113 - A

8

6903109

OIL 30W QT. 12

8

6903110

OIL, 30W GAL. 6

8

6903111

OIL 30W 2.5 GAL 2

9

6904792

SM, 5600 UWM Service Manual

10

6904791

OM, 5600 UWM Operation & Maintenance Manual

11

6904951

PM, 5600 UWM printed

11

6904951-CD

PM, 5600 UWM CD

12

6986515

OHB, W WIRE ROPE See Illustration DECALS/ B26550 Operator Handbook
