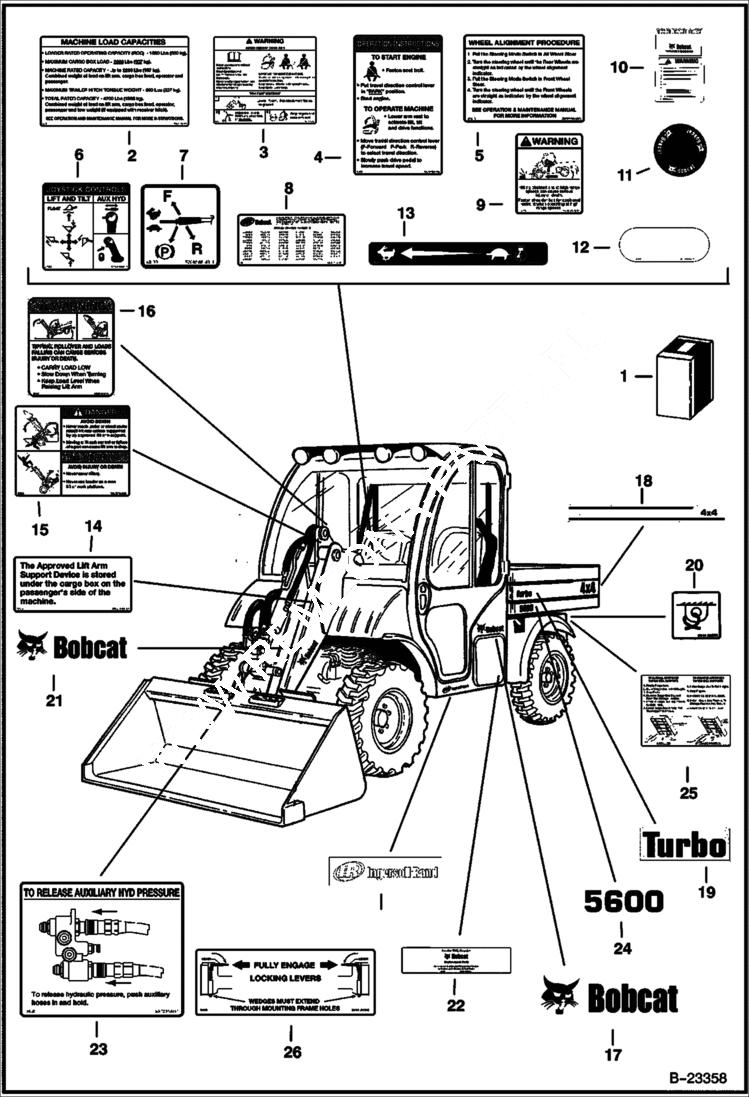

Запчасти Bobcat 5600 DECALS ACCESSORIES & OPTIONS

1

DECAL KIT NLA

2

6814303

DECAL load capacity

3

6814300

DECAL warning

4

6814309

DECAL operating

5

6814813

DECAL wheel alignment

6

6814312

DECAL joystick control

7

6814311

DECAL shift control

8

DECAL NLA - patent - Was 6557224 - C

9

6815053

DECAL warning

10

6901890

KIT handbook - W/Wire Rope

10

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

10

6558310

SLEEVE wire rope

11

6813840

DECAL steering wheel

12

6808478

DECAL HVAC cover

13

6808481

DECAL throttle

14

6815099

DECAL warning

15

7114128

DECAL danger

16

7114129

DECAL carry load low

17

6731332

DECAL Bobcat - 4.70'' x 15.21'' (119 mm x 386 mm)

18

6814447

DECAL box - LH

18

6814446

DECAL box - RH

19

7102085

DECAL turbo

20

6595014

DECAL tie down

21

7114299

DECAL, LOGO BOBCAT AND HEAD 76,2 mm x 266,8 mm (3'' x 10.5'')

22

6565200

DECAL, FILTER

23

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

24

6814451

DECAL 5600

25

6814308

DECAL cargo box support

26

6561383

DECAL, OPERATION 5 Bob-Tach locking levers
