Запчасти Bobcat 5600 OIL PAN (Kubota - V2203MDI - Tier II) POWER UNIT

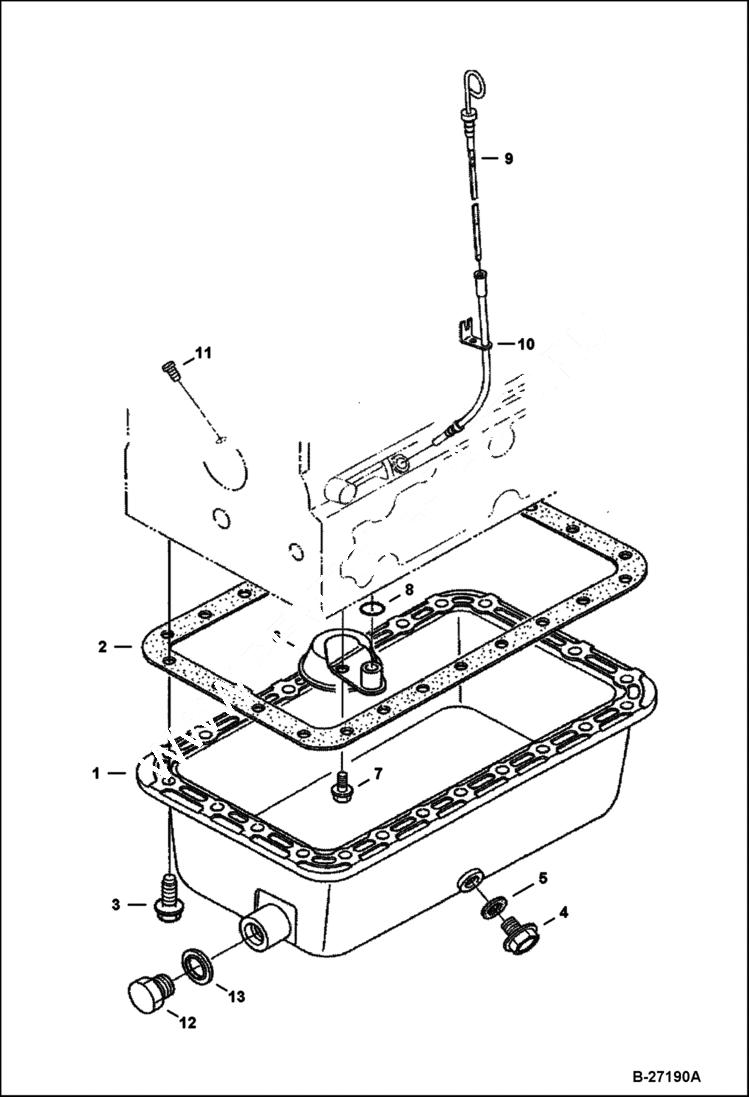

Схема запчастей Bobcat 5600 - OIL PAN (Kubota - V2203MDI - Tier II) POWER UNIT

Артикул

Название

Примечание

Количество

1

6655151

PAN, OIL

1

6655151

PAN, OIL Was 7022790 - D

2

6666817

GASKET oil pan - Was 6684753 - A

3

7001922

BOLT Was 6653798 - B,D

3

7001922

BOLT Was 6698100 - A

4

3974402

PLUG drain - Was 6653583 - A

5

6680484

GASKET

6

6655194

SCREEN, OIL Was 6682500 - B,D

7

6667420

BOLT

7

6685109

BOLT, FLANGE

8

6684754

O-RING

9

6698481

DIPSTICK, OIL ENG Was 6685499 - B,D

10

6698480

GUIDE, DIPSTICK Was 6677203 - B,D

11

6969804

PLUG,OIL GAUGE Was 6684785 - A

12

6680657

PLUG

13

6631046

SEAL

Выбрано товаров: 16
