Запчасти Bobcat 5600 ENGINE & ATTACHING PARTS (Belt Drive, Alt.) (A00211001 & Above) POWER UNIT

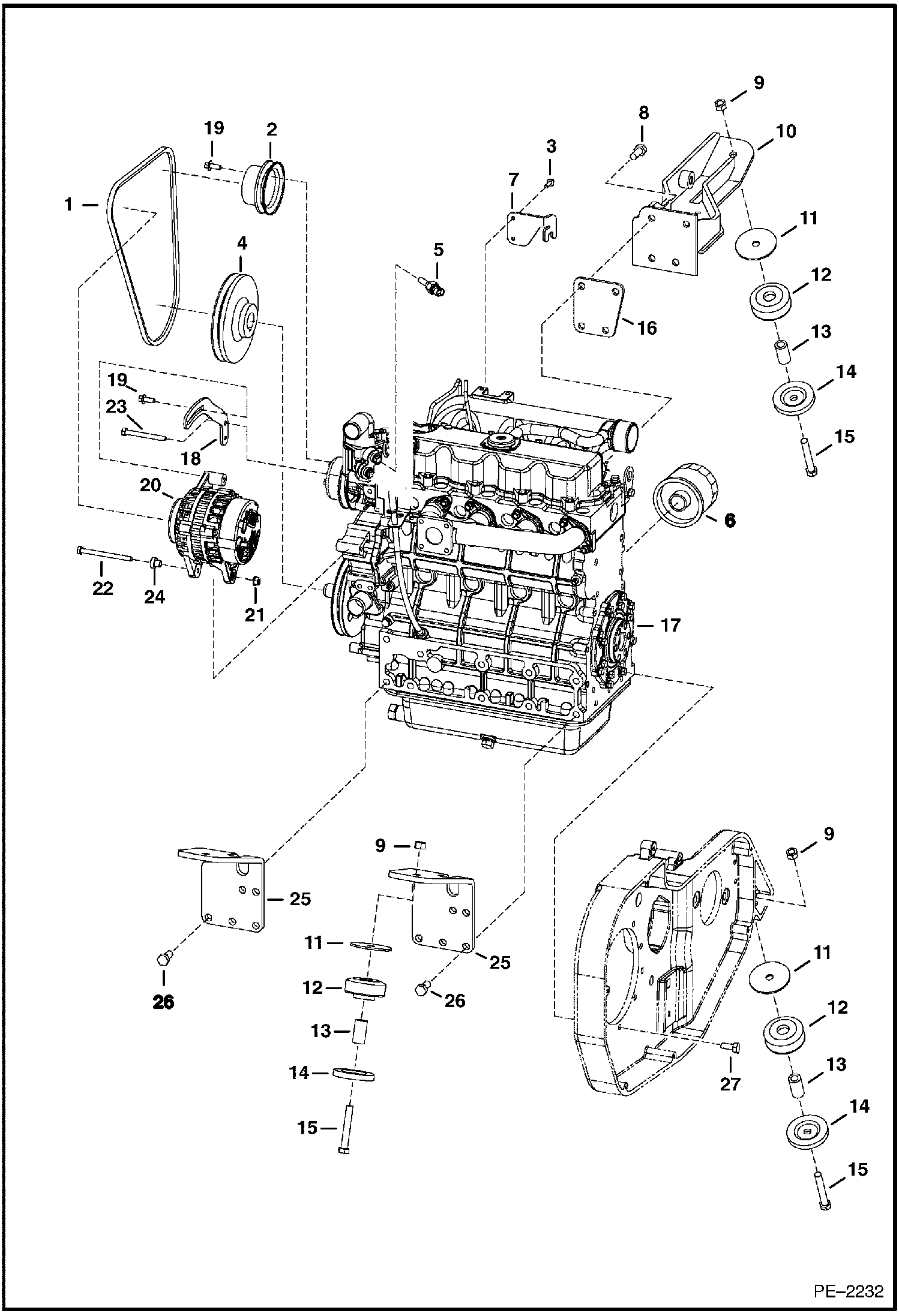

Схема запчастей Bobcat 5600 - ENGINE & ATTACHING PARTS (Belt Drive, Alt.) (A00211001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

7100104

BELT, ALT

2

PULLEY See Illustration WATER PUMP/ B22691

3

29CM620

SCREW

4

PULLEY See Illustration PISTON & CRANKSHAFT/ B22684 - crankshaft

5

6718414

SENDER, TEMP ENG

6

6675517

FILTER, OIL ENG 12

7

6814273

BRACKET

8

6719828

BOLT

9

53DM12

NUT

10

6816330

MOUNT

11

6705106

WASHER

12

6661785

MOUNT, ENG engine

13

6706043

SPACER

14

6661787

WASHER

15

1CM1280

BOLT

16

6700535

SPACER engine mount

17

ENGINE See Illustration ENGINE & GASKET KITS/ NA1522

18

6730867

BRACKET alternator

19

29CM820

SCREW

20

ALTERNATOR See Illustration ALTERNATOR/ C3529 90 AMP

21

43DM8

NUT

22

1CM8100

SCREW

23

1CM875

BOLT

24

6817566

BUSHING

25

6815826

MOUNT

26

6719827

BOLT

27

6719825

BOLT

Выбрано товаров: 27
