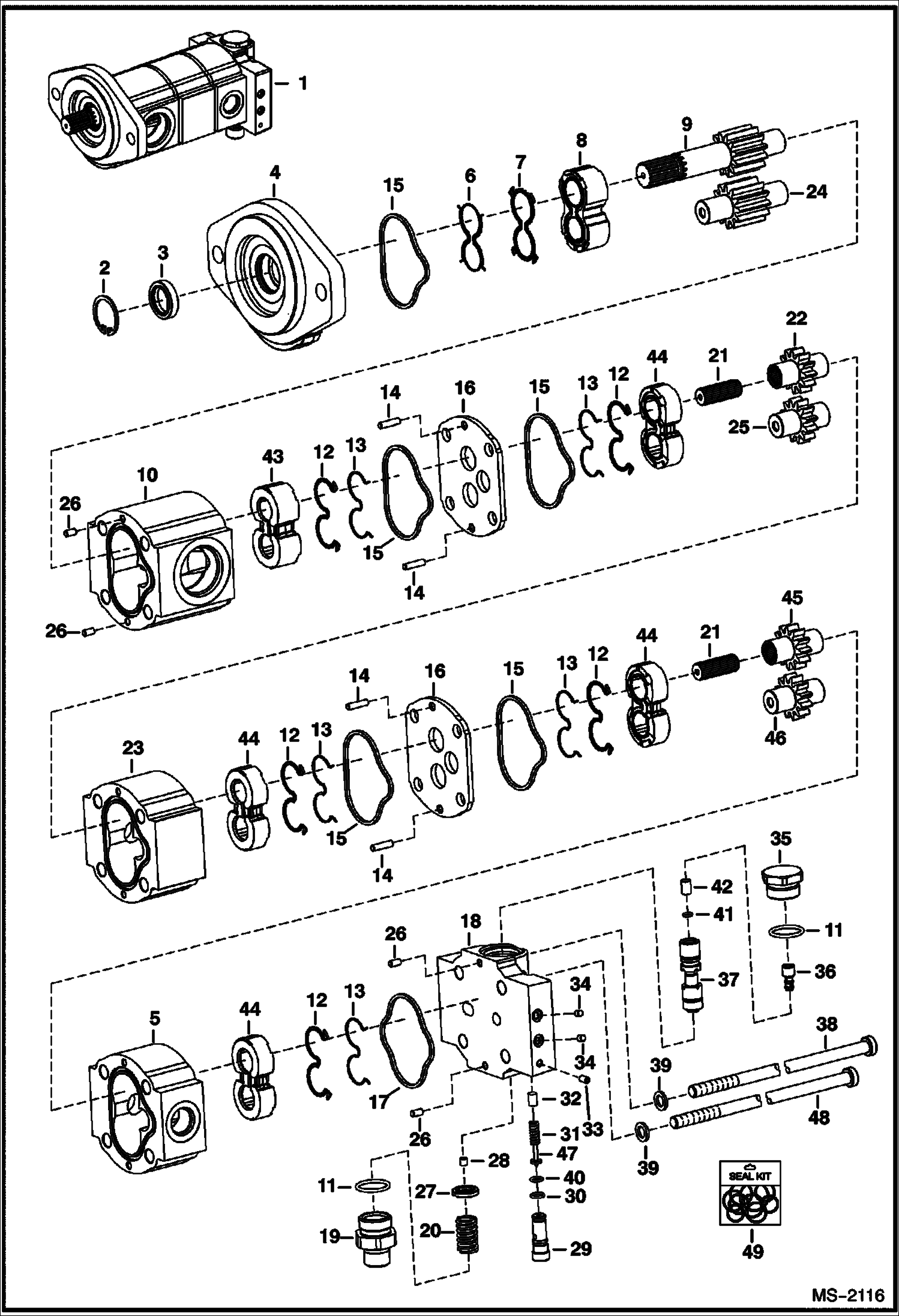

Запчасти Bobcat 5600 TRIPLE GEAR PUMP HYDROSTATIC SYSTEM

1

6686656

PUMP, GEAR TRIPLE triple

2

6682429

SNAP RING

3

6682428

SEAL

4

7001007

FLANGE, COMPLETE W/SEALS W/Ref. 2 & 3 - Was 7000996 - A

5

BODY NSS

6

RING NSS - back-up

7

SEAL NSS

8

PLATE NSS - thrust

9

SHAFT NSS

10

BODY NSS

11

O-RING NSS

12

SEAL NSS

13

RING NSS - back-up

14

DOWEL PIN NSS

15

SEAL NSS

16

FLANGE NSS

17

SEAL NSS

18

COVER NSS - rear

19

PLUG NSS

20

SPRING NSS

21

SHAFT NSS

22

GEAR NSS

23

BODY NSS

24

GEAR NSS

25

GEAR NSS

26

DOWEL PIN NSS

27

PUSHING SPRING NSS

28

GRUB SCREW NSS

29

VALVE NSS

30

O-RING NSS

31

SPRING NSS

32

SPACER NSS

33

SCREW NSS

34

PLUG NSS

35

PLUG NSS

36

THROTTLING SCREW NSS

37

SPOOL NSS

38

SCREW NSS

39

WASHER NSS

40

O-RING NSS

41

O-RING NSS

42

FILTER NSS

43

PLATE NSS - thrust

44

PLATE NSS - thrust

45

GEAR NSS

46

GEAR NSS

47

VALVE NSS

48

SCREW NSS

49

6688797

SEAL KIT Refs 3, 6, 7, 11, 12, 13, 15, 17, 30, 40, 41,
