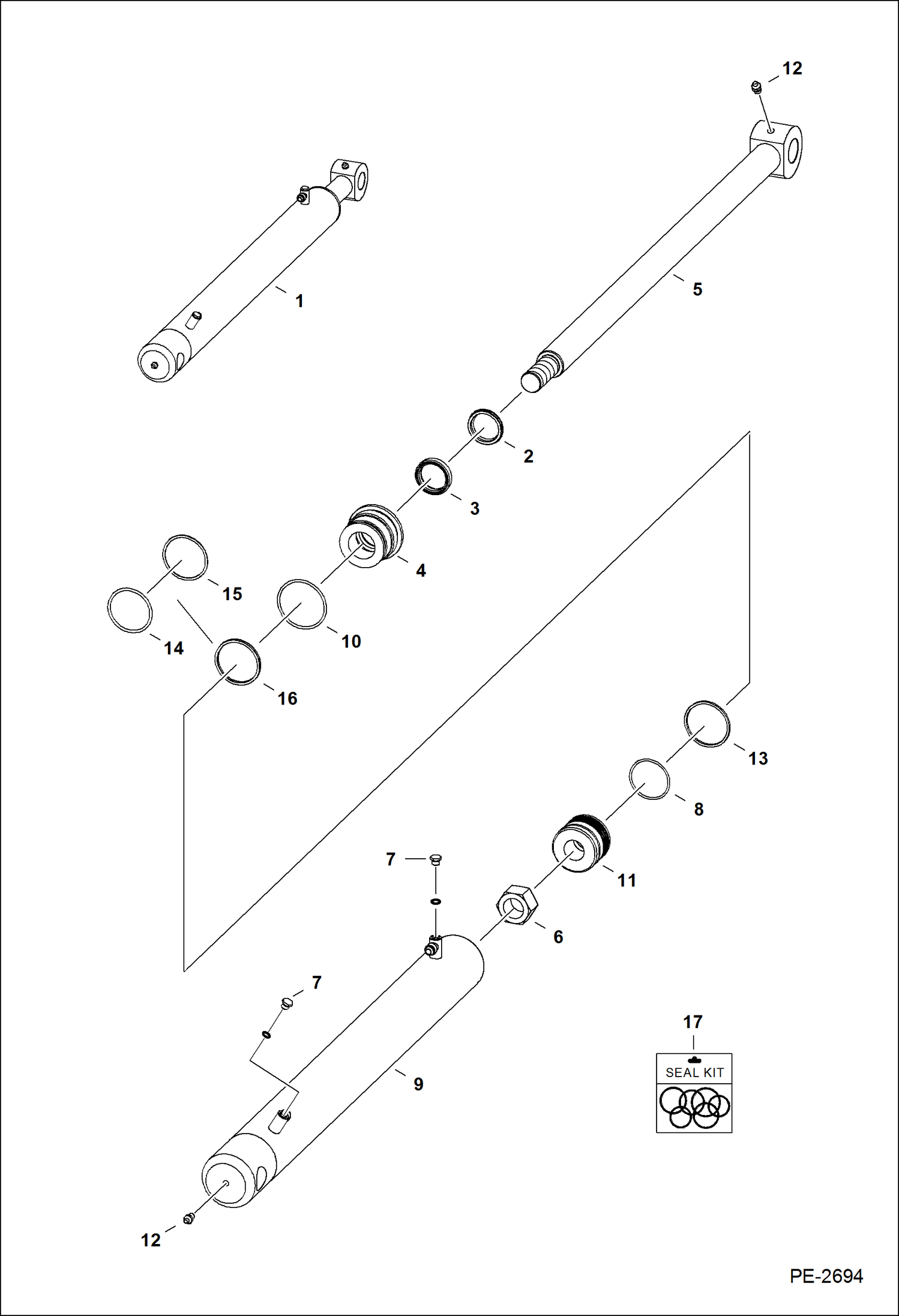

Запчасти Bobcat 5600 LIFT CYLINDER HYDRAULIC SYSTEM

1

7106564

LIFT CYLINDER Ref. 2-15 - A

2

6690707

WIPER, ROD CYL Was 6665086 - A

3

6667326

SEAL

4

6806124

HEAD

5

6810430

ROD

6

6810539

NUT

7

6812170

PLUG

7

75K3

O-RING

8

1522534

SEAL

9

7106569

CASE

10

82K230

O-RING

11

7106568

PISTON

12

10H25

FITTING, GREASE 5

13

25K30202

O RING 10 Was 54K30202 - B

14

25K40208

O RING 10 Was 54K40208 - B

15

73K228

BACK-UP RING

16

7008778

SEAL, QUAD

17

7135559

SEAL KIT Ref. 2, 3, 6, 8, 10, 13, & 16 - Was 6816537 - A
