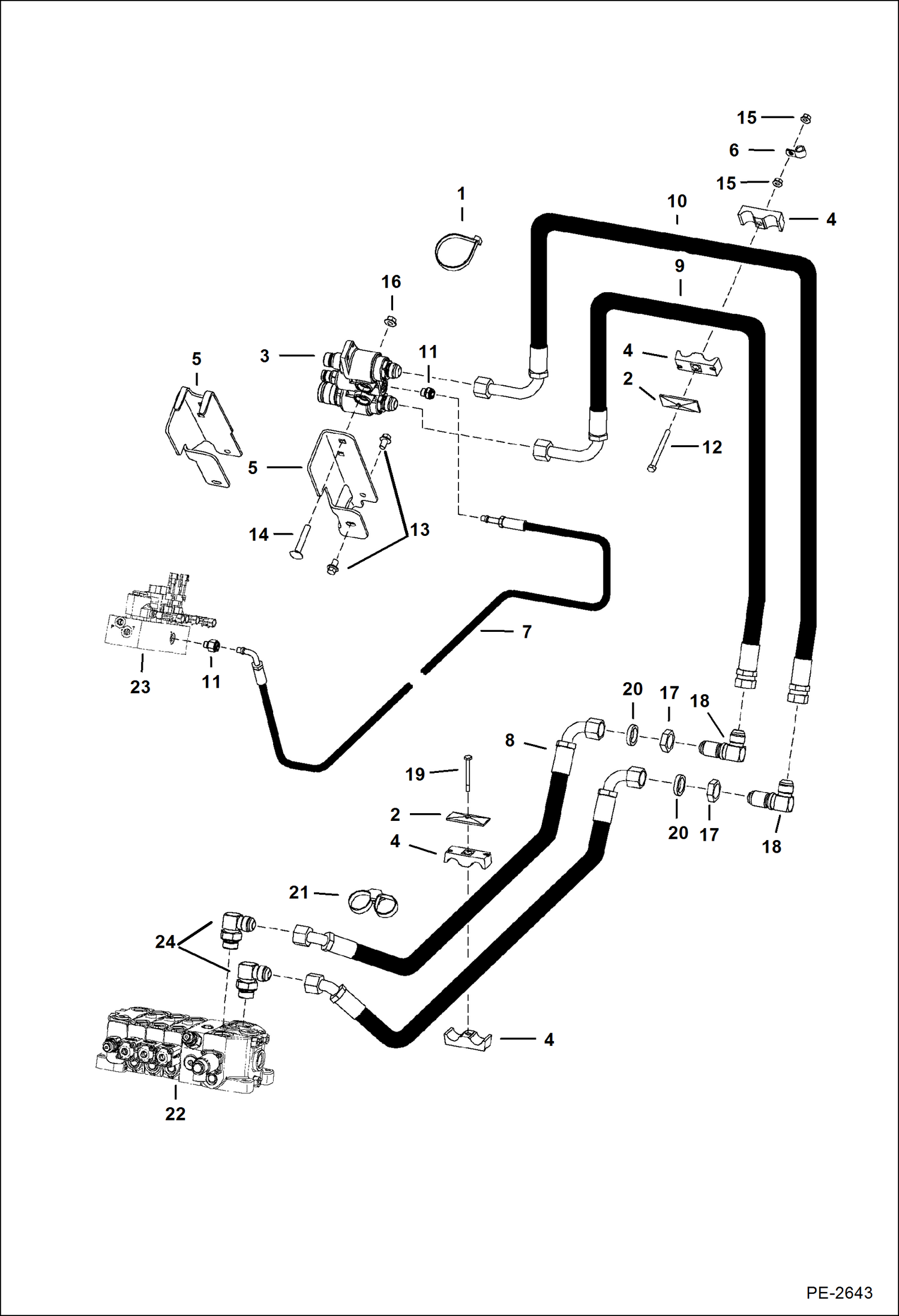

Запчасти Bobcat 5600 AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6685156

RETAINER

2

6653493

COVER cover

3

6678076

BLOCK coupler

4

6683610

CLAMP

5

BRACKET NLA - Order 7143527 bracket - Was 7113498 - A

5

7143527

BRACKET

6

30H26

CLIP

7

7115358

HOSE Was 7106246 - B,D

8

7113985

HOSE

9

7105440

HOSE

10

7105439

HOSE

11

10L0606

FITTING, HYD CONNECTOR

11

78K6

O'RING

11

7011053

CLIP

12

1CM885

BOLT Was 29CM00870B - B

13

29CM1016

BOLT

14

21CM1065

BOLT

15

51DM8

NUT Was 43DM00008B - B,D

16

51DM10

NUT

17

86F8

NUT 5

18

88F8

FITTING

19

17C540

BOLT

20

7114506

SPACER

21

6684290

CLAMP

22

VALVE See Illustration WORK VALVE/ MS1469 WORK

23

VALVE See Illustration PILOT VALVE/ MS1944 PILOT

24

17KB1212

FITTING, HYD ELBOW
