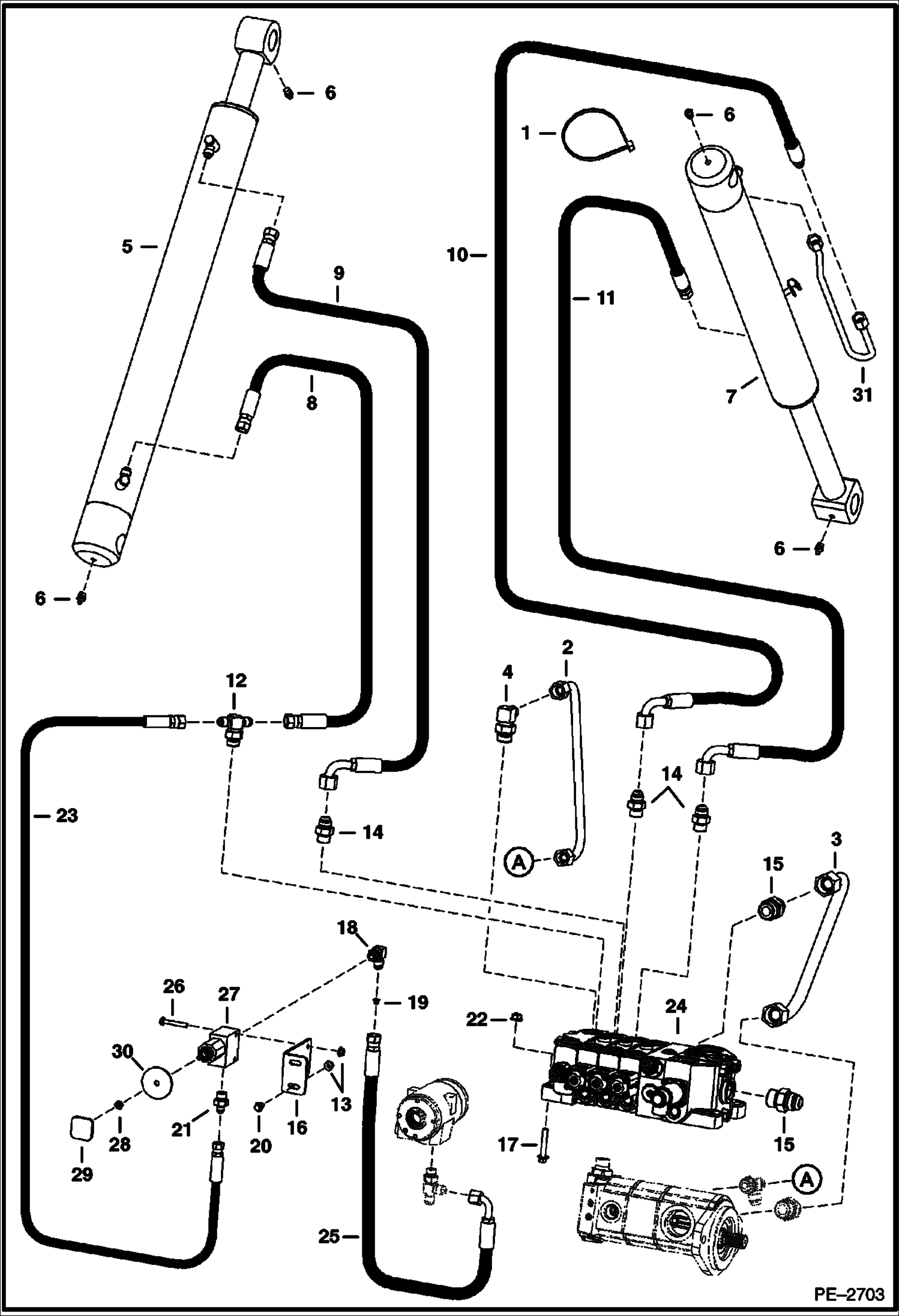

Запчасти Bobcat 5600 HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

7105649

TUBELINE

3

7105650

TUBELINE

4

17KB0810

FITTING, HYD ELBOW

4

79K10

O RING 10

5

CYLINDER See Illustration LIFT CYLINDER/ PE2694 LIFT

6

10H25

FITTING, GREASE 5

7

CYLINDER See Illustration TILT CYLINDER/ PE2696 TILT

8

6818198

HOSE

9

7113873

HOSE

10

7105432

HOSE

11

7113874

HOSE

12

19KB0608

UNION

12

79K8

O RING 10

13

43DM6

NUT

14

15KB0808

FITTING, HYD CONNECTOR

14

79K8

O RING 10

15

15KB1212

FITTING, HYD CONNECTOR

15

79K12

O RING 10

16

6818402

BRACKET

17

29CM845

BOLT

18

17KB0606

FITTING

18

79K6

O RING 10

19

6586430

ORIFICE

20

29CM616

BOLT

21

15KB0406

FTG HYD S CONNECTOR

21

79K6

O RING 10

22

43DM8

NUT

23

7100880

HOSE

24

7230495

VALVE, LIFT MANUAL See Illustration WORK VALVE/ MS1469 WORK - Was 6667844 - A

25

7100879

HOSE

26

1CM640

SCREW

27

7230495

VALVE, LIFT MANUAL bics - Was 6667844 - A

28

7D4

NUT

29

6737524

KNOB red square

30

6707101

SEAL

31

6813707

TUBELINE
