Запчасти Bobcat 5600 FUEL SYSTEM MAIN FRAME

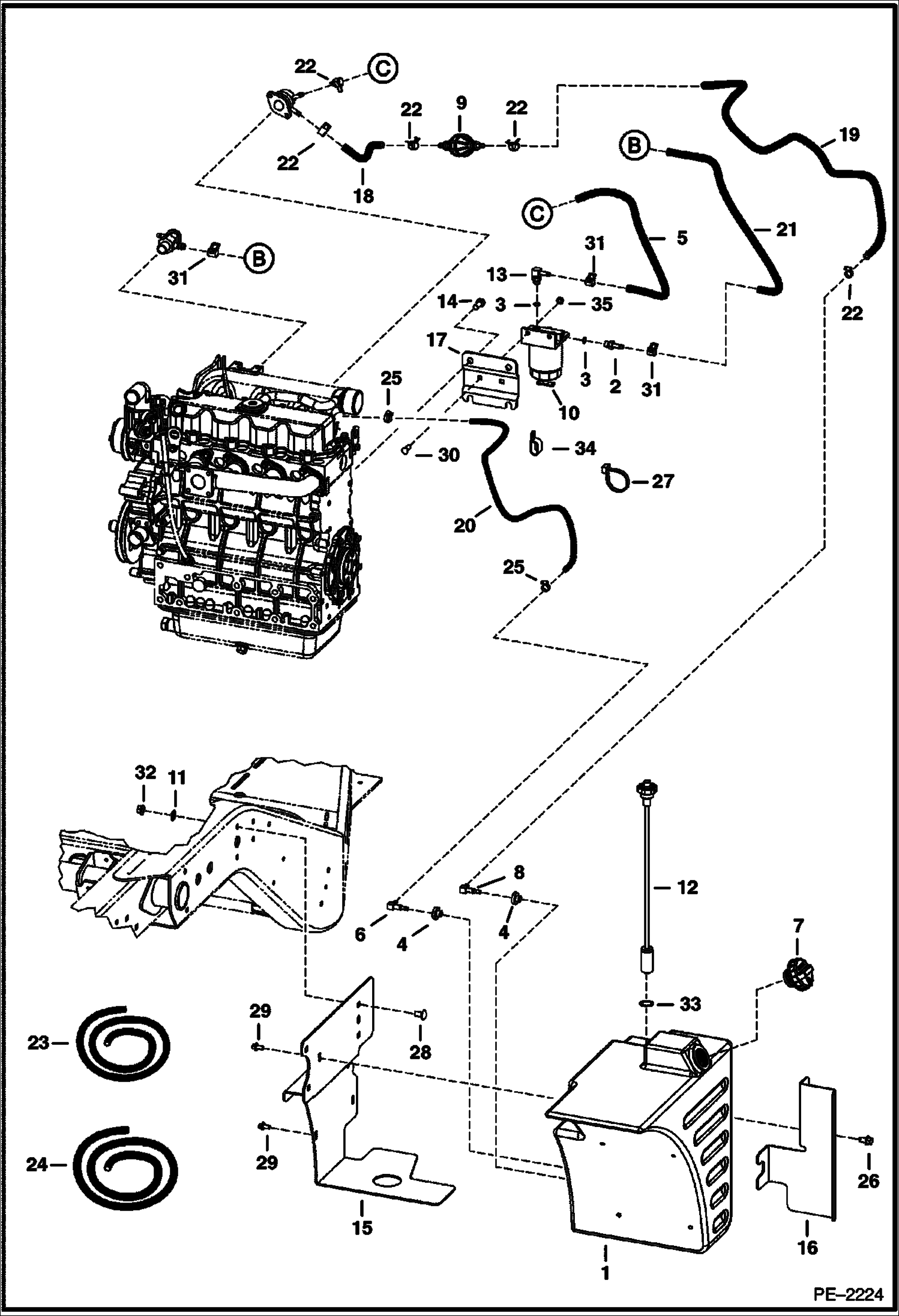

Схема запчастей Bobcat 5600 - FUEL SYSTEM MAIN FRAME

Артикул

Название

Примечание

Количество

1

7103053

TANK fuel

2

1324240

CONNECTOR

3

99K5

O-RING

4

6553411

BUSHING 0.38'' ID

5

HOSE NLA - 17'' (431,8mm) long - Order Ref. 23

6

6598908

ELBOW barbed

7

6661114

CAP. DIESEL green

7

7113340

CAP. DIESEL European

7

6661696

CAP, FUEL LOCKING green locking - W/key 6587458

7

6587458

KEY

8

7126672

ELBOW barbed - Was 6666302 - A

9

6667170

PUMP 193 mm (7.6'') long

10

6667353

FILTER ASSY

10

6667352

FILTER, FUEL W/SEPARATOR 12

10

72F1

FITTING

10

6658180

PLUG, BLEED

11

6674264

RETAINER NUT

12

7216517

SENSOR, FUEL fuel - Was 6680450 - A

13

6715183

ELBOW

14

6719827

BOLT

15

6812217

BRACKET

16

6812219

BRACKET fuel tank

17

7106145

MOUNT filter

18

HOSE NLA - 7.5''(190,5mm) long - Order Ref. 23

19

HOSE NLA - 27.5''(698,5mm) long - Order Ref. 23

20

HOSE NLA - 29.5''(749,3mm) long - Order Ref. 24

21

HOSE NLA - 24''(609,6mm) long - Order Ref. 23

22

5HM14

CLAMP constant tension

23

6577822

HOSE bulk - sold per foot

24

6578169

HOSE bulk - sold per foot - 0.19'' ID

25

5HM15

CLAMP constant tension

26

29CM1016

BOLT

27

6624289

STRAP, TIE

28

28CM1020

BOLT

29

29CM816

SCREW

30

29CM820

SCREW

31

42HS04

CLAMP, HOSE

32

43DM10

NUT

33

6717579

GASKET

34

30H31

CLAMP 10

35

51DM8

NUT

Выбрано товаров: 41
