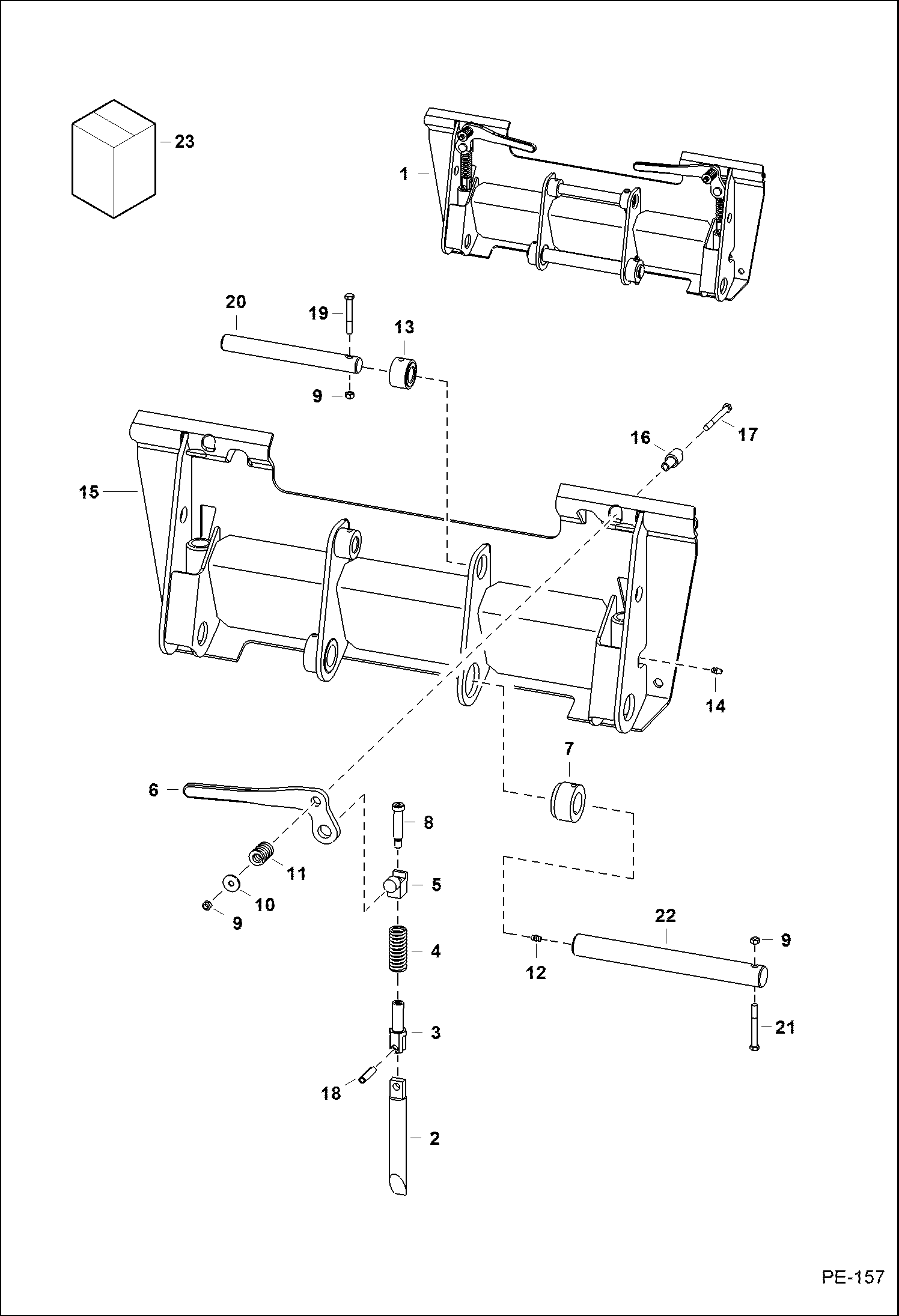

Запчасти Bobcat 5600 BOB-TACH MAIN FRAME

1

BOB-TACH See Illustration BOB-TACH/ NA6212 - NLA - Ref. 2-22 - Was 6811301 - A

2

6737191

WEDGE

3

6704248

PIVOT, WEDGE

4

6578253

SPRING, COMPRESSION

5

6704240

PIVOT ASSY.

6

6702903

LEVER, BOB-TACH LH

6

6702904

LEVER, BOB-TACH RH

7

6811285

BUSHING weld on

8

6728473

BOLT, SHOULDER pre-applied thread locker

9

85D6

NUT, 5

10

619021

WASHER, 5

11

6713040

SPRING

12

10H25

FITTING, GREASE 5

13

6813145

BUSHING weld on

14

10H35

FITTING, GREASE 10

15

FRAME NSS

16

6702958

BUSHING, WELD-ON

17

17C660

BOLT

18

14J5032

PIN, STRAIGHT

19

17C644

BOLT

20

6813422

PIN

21

17C652

BOLT

22

6813421

PIN
