Запчасти Bobcat 5600 LIFT ARM MAIN FRAME

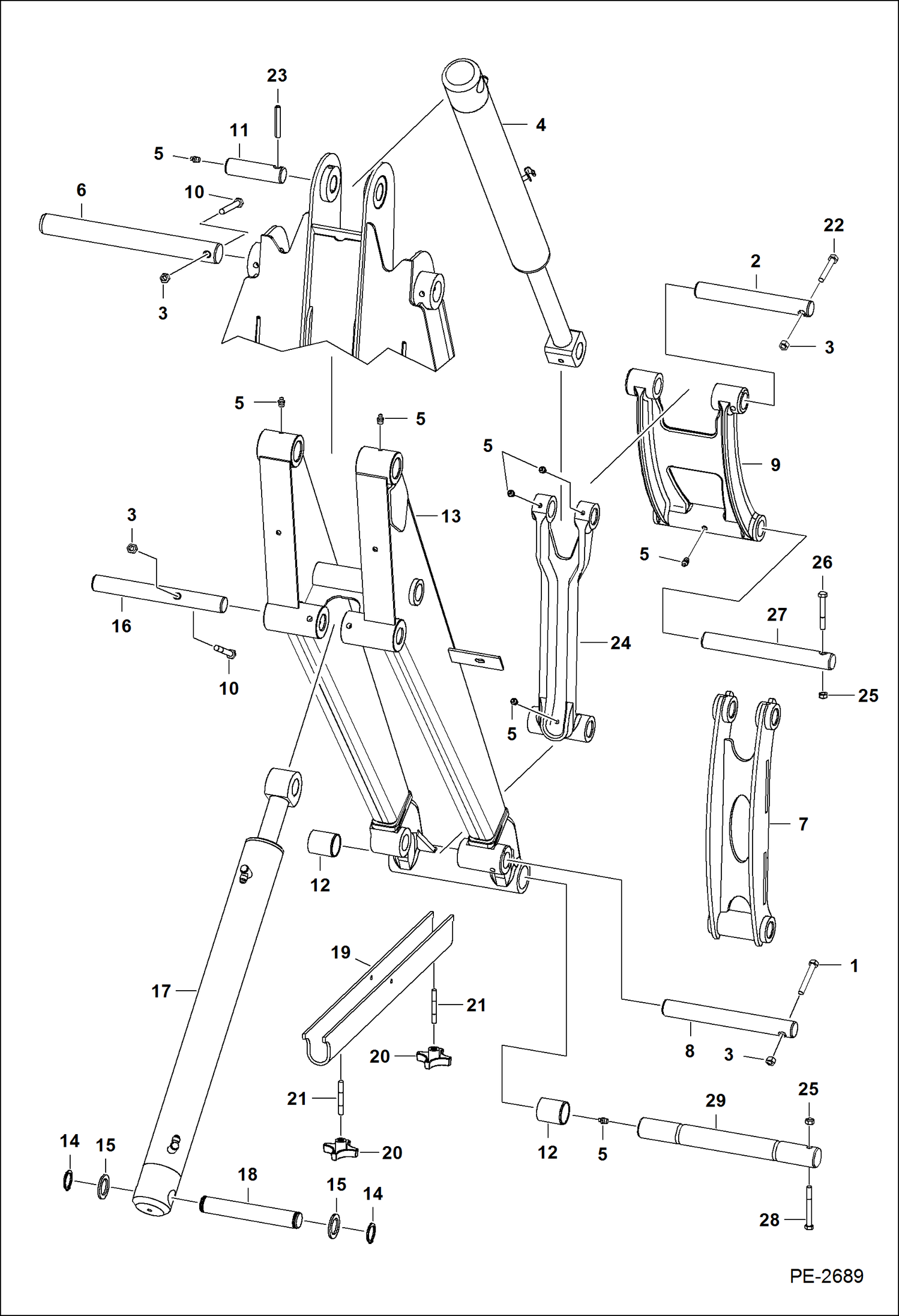

Схема запчастей Bobcat 5600 - LIFT ARM MAIN FRAME

Артикул

Название

Примечание

Количество

1

1CM1070

BOLT

2

6813410

PIN

3

53DM10

NUT

4

CYLINDER See Illustration TILT CYLINDER/ PE2696 - tilt

5

10H25

FITTING, GREASE 5

6

7116236

PIN

7

LINK NLA - Order Ref. 24 - Was 7105560 - A

8

6813422

PIN

9

7105145

LINK BUCKET

10

1CM1080

BOLT

11

7101153

PIN

12

6815277

BUSHING Was 6803207 - A

13

7105555

LIFT ARM

14

22J20

SNAP RING

15

6532519

WASHER

16

6816742

PIN

17

CYLINDER See Illustration LIFT CYLINDER/ PE2694 - lift

18

6813862

PIN

19

6816852

SUPPORT boom

20

6684932

KNOB

21

6731385

STUD

22

1CM1060

BOLT

23

14J3740

PIN

24

7157871

LINK, FRAME BOOM Was 7105560 - A

25

85D6

NUT, 5

26

17C644

BOLT

27

6813422

PIN

28

17C652

BOLT

29

6813421

PIN

Выбрано товаров: 29
