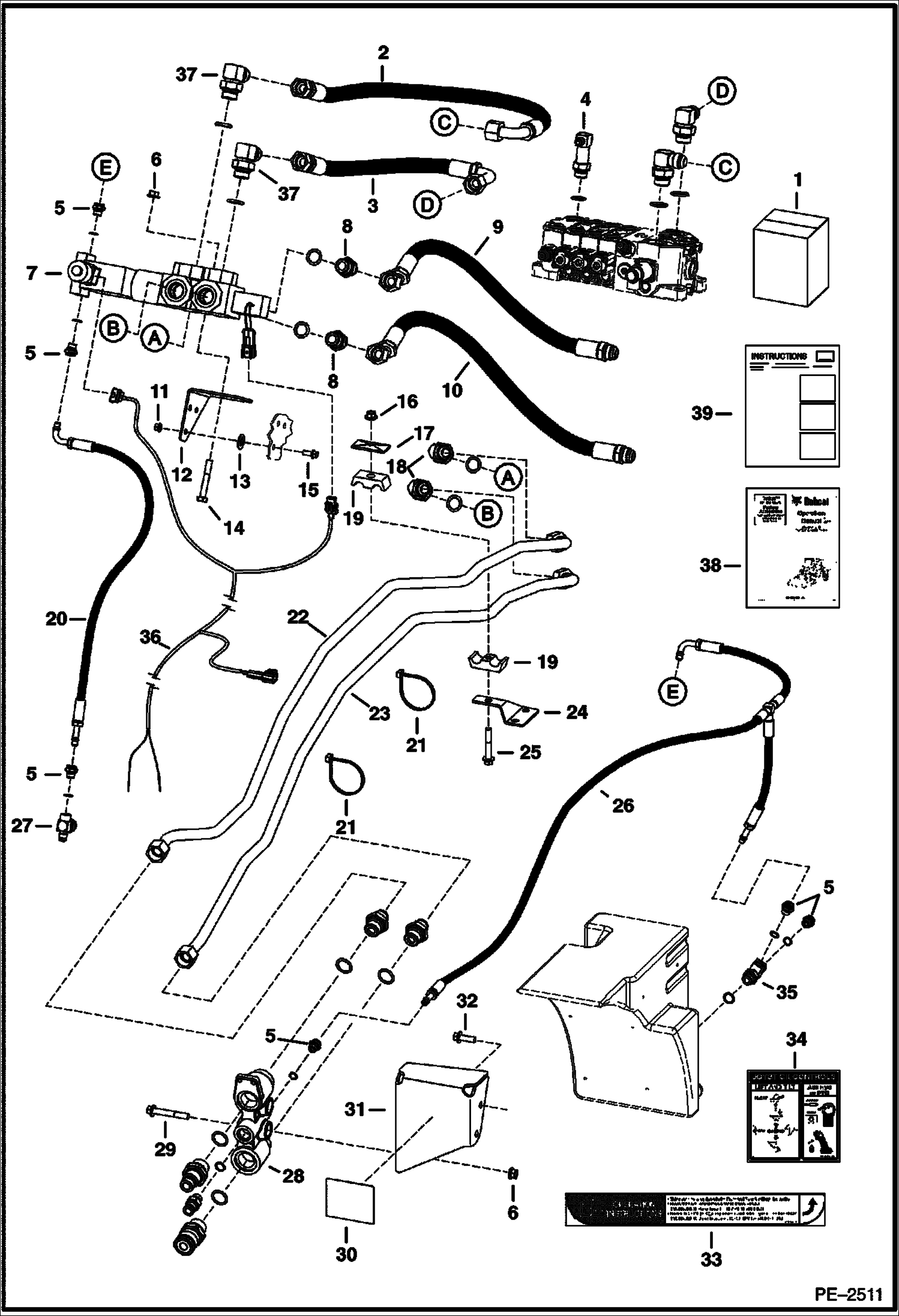

Запчасти Bobcat 5600 REAR AUX. KIT ACCESSORIES & OPTIONS

1

KIT, AUX REAR NLA - Ref. 2-39 - Order components - Was 7102467 - A

2

7110765

HOSE assy

3

7110764

HOSE assy

4

7111909

TEE

5

10L0606

FITTING, HYD CONNECTOR

5

7011053

CLIP

6

43DM10

NUT

7

6687192

VALVE DIVERTER See Illustration DIVERTER VALVE/ MS2215 diverter

8

15KB1212

FITTING, HYD CONNECTOR

9

7104909

HOSE assy.

10

7104910

HOSE assy.

11

43DM8

NUT

12

7105352

BRACKET diverter

13

6675859

RETAINER

14

1CM1070

BOLT

15

29CM820

SCREW

16

51DM10

NUT

17

6592507

PLATE cover

18

18KB1212

FITTING, HYD ELBOW 45 degrees

19

6592506

CLAMP

20

7109963

HOSE assy

21

6624289

STRAP, TIE

22

7109390

TUBELINE rear aux

23

7109391

TUBELINE rear aux

24

7100267

BRACKET clamp

25

29CM1060

SCREW

26

7107952

HOSE assy

27

7110100

ELBOW 90 degree

28

6678076

BLOCK coupler

29

29CM1070

BOLT

30

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

31

7106138

BRACKET rear aux

32

29CM1030

BOLT

33

7108178

DECAL OPERATION display

34

7109014

DECAL AUX HYD joystick

35

6813939

TEE

36

7109770

HARNESS REAR AUX

37

17KB1212

FITTING, HYD ELBOW 90 degree

38

6903714

OM, UWM SUPPLEMENT supplemental operations

39

6902858

INSTRUCTIONS
