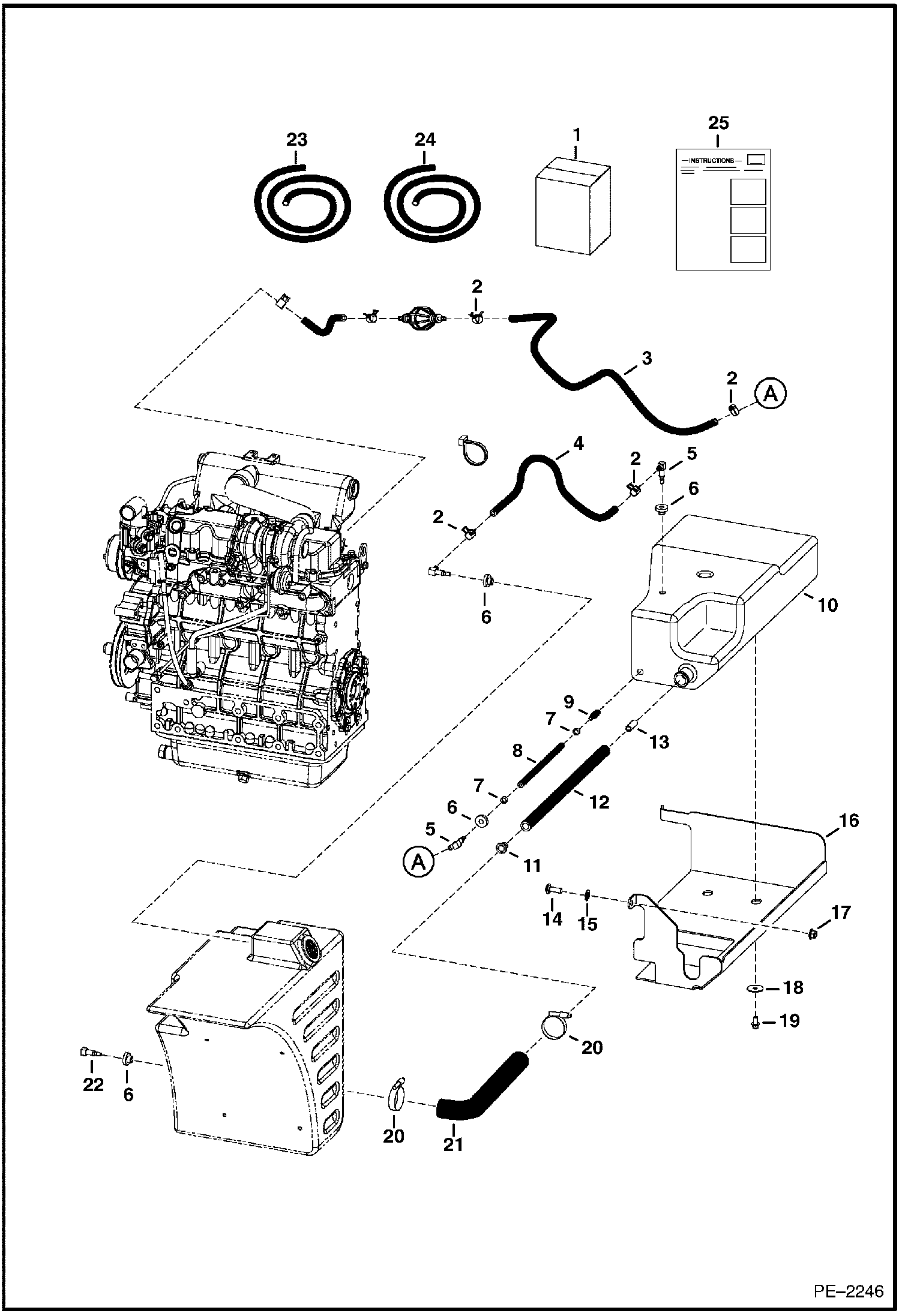

Запчасти Bobcat 5600 AUXILIARY FUEL TANK KIT ACCESSORIES & OPTIONS

1

7102824

KIT aux fuel tank - Ref. 2-25

2

5HM15

CLAMP

3

HOSE NLA - 42''(1066,8mm) long - Order Ref. 23

4

HOSE NLA - 38''(965,2mm) long - Order Ref. 23

5

7126672

ELBOW barbed - Was 6666302 - A

6

6553411

BUSHING 0.38'' ID

7

6661213

RING, COMPRESSION compression

8

HOSE NLA - 9.5''(241,3mm) long - Order Ref. 24

9

1314885

ADAPTER barbed

10

6817472

FUEL TANK aux

11

7103511

BUSHING flanged

12

7103739

HOSE Was 6813739 - D

13

7103892

BUSHING

14

28CM1030

BOLT

15

6674264

RETAINER NUT

16

6817473

MOUNT

17

43DM10

NUT

18

6817775

WASHER

19

29CM816

SCREW

20

42HC200

CLAMP

21

6817479

HOSE

22

6599645

PLUG, STEEL steel

23

6577822

HOSE bulk - sold per foot

24

6569752

HOSE BULK/FT bulk - sold per foot

25

6902857

INSTRUCTIONS
