Запчасти Bobcat 5600 SPEED CONTROL PLATE (Kubota - V2003TMDI - Tier II) POWER UNIT

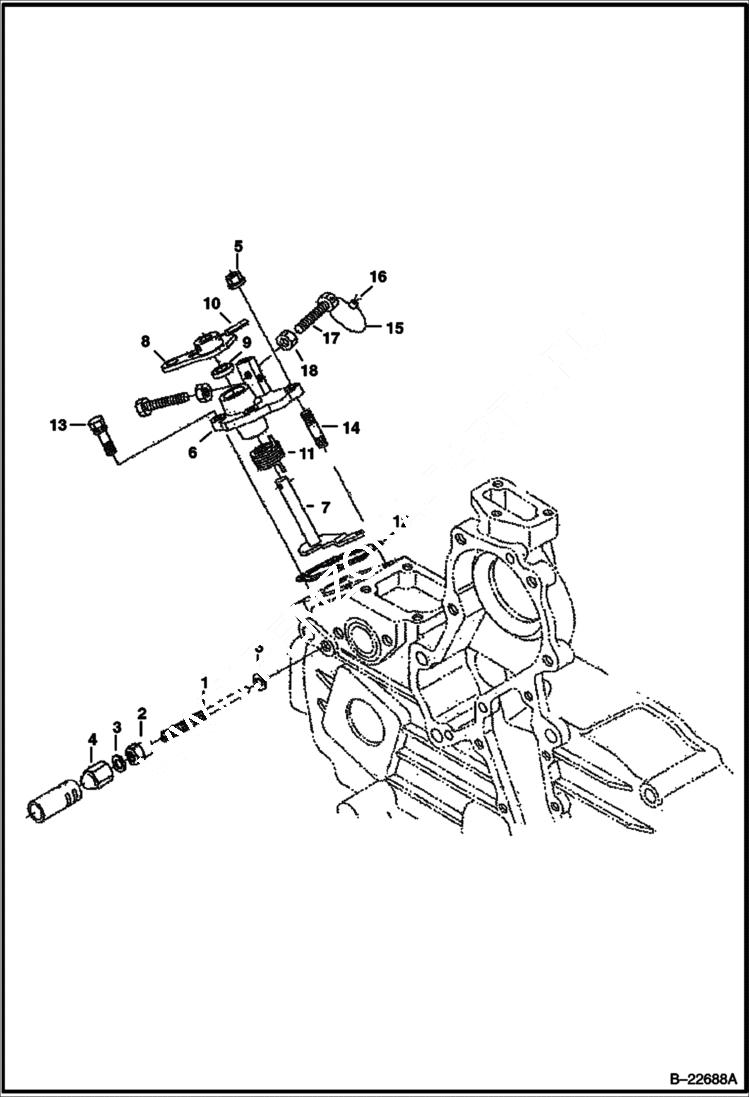

Схема запчастей Bobcat 5600 - SPEED CONTROL PLATE (Kubota - V2003TMDI - Tier II) POWER UNIT

Артикул

Название

Примечание

Количество

1

6684836

BOLT, ADJUSTING adjusting - W/Ref. 2

2

3974971

NUT

3

3974972

GASKET

4

6655223

NUT cap

5

6670533

NUT Was 6653561 - A

6

6685526

PLATE, CONTROL control assy. - Ref. 7-11, 17 &18

7

6684838

LEVER

8

6684839

LEVER

9

6685476

SEAL

10

6598098

PIN spring

11

6684823

SPRING

12

6684841

GASKET Was 6684824 - A

13

1CM620

BOLT Was 4CM620 - A

14

6652764

STUD

15

WIRE NLA

16

LEAD NLA - sealing

17

7010195

BOLT, ADJUSTMENT Was NLA - D

18

1DM6

NUT Was NLA - D

Выбрано товаров: 18
