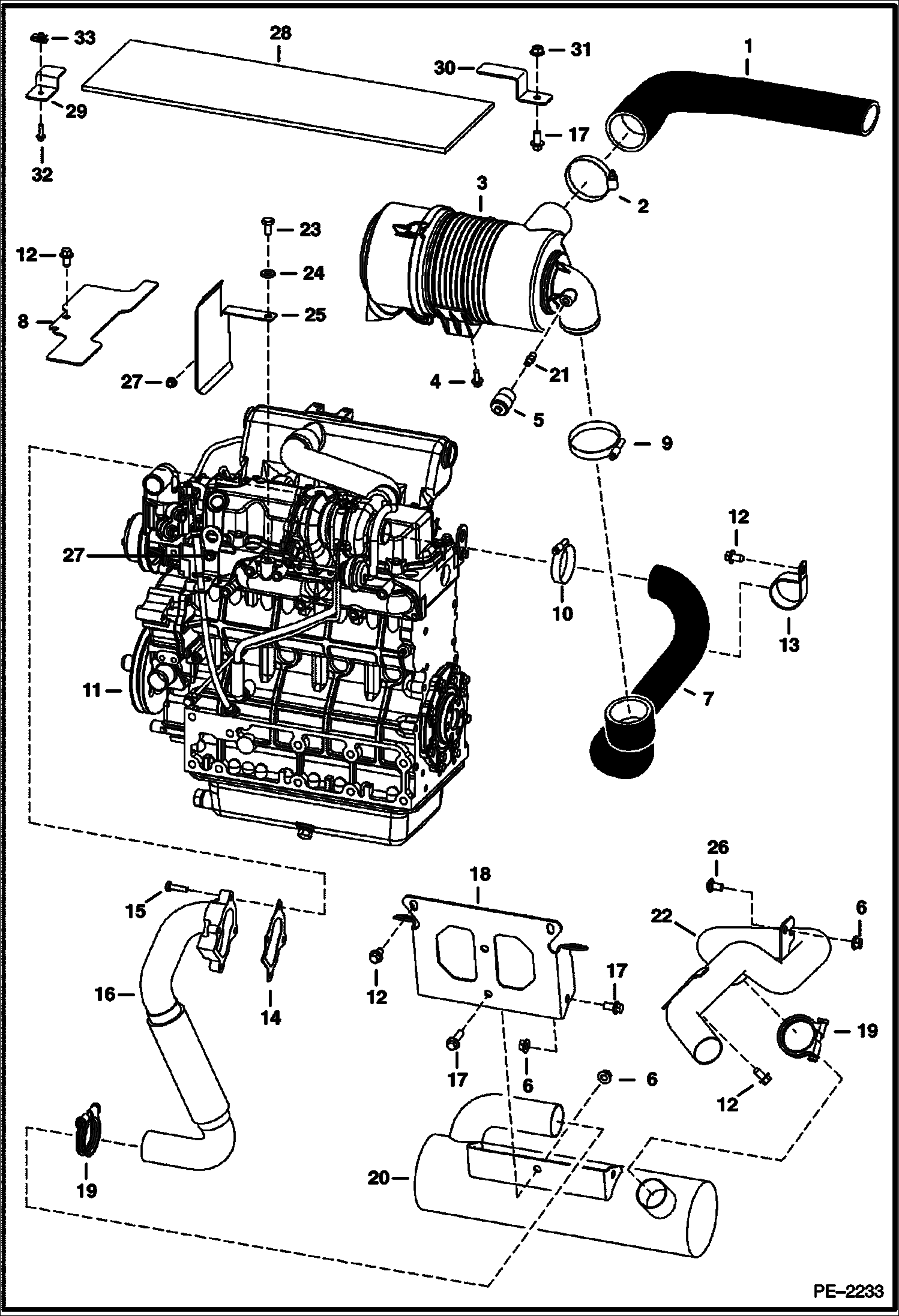

Запчасти Bobcat 5600 ENGINE & ATTACHING PARTS (Intake & Exhaust) (Turbo) (424711001 & Above) POWER UNIT

1

6813969

HOSE

2

42H40

HOSECLAM5

3

6680760

AIR CLEANER See Illustration AIR CLEANER/ C3490

4

29CM820

SCREW

5

6515007

GAUGE

6

51DM10

NUT

7

6817694

HOSE

8

6816792

GUARD

9

42HC325

CLAMP

10

42HC250

CLAMP

11

ENGINE See Illustration ENGINE & GASKET KITS/ NA1523

12

26GM10020

BOLT

13

30H92

CLAMP INSL

14

6675637

GASKET exhaust

15

7101171

SCREW

16

6684570

TUBE exhaust

17

29CM1020

BOLT

18

6817328

MOUNT

19

6685133

CLAMP,MUFFLER exhaust

20

6684571

COVER spark arrestor

21

6816681

FITTING

22

6684572

TUBE ASSY EXHAUST exhaust

23

6733378

SCREW Was 7103260 - A

24

6557831

WASHER

25

7101053

BRACKET

26

28CM1020

BOLT

27

51DM8

NUT

28

6689107

INSULATION above turbo- Was 6686927

29

7114909

BRACKET

30

7114910

BRACKET

31

43DM10

NUT

32

29CM620

SCREW

33

6676026

NUT retainer
